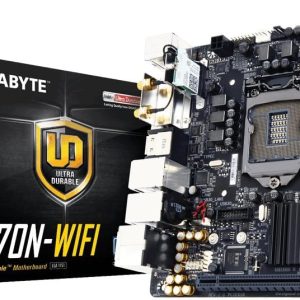

GIGABYTE GA-Z170N-WIFI (REV 2.0)

GIGABYTE’s GA-Z170N-WiFi 2.0 enhances PCI-Express support with bifurcation mode. This allows users to utilize a single PCI-Express x16 slot, with a riser card, transforming it into two full-length PCI-Express slots, each supporting x8 PCIe lanes.

Processor Support:
- Supports 7th / 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® processors in LGA1151 package
- BIOS update required for 7th Generation Intel® Core™ processors
Memory
- Dual Channel DDR4, 2 DIMMs
- Supports up to 32 GB of system memory
- Dual channel memory architecture
- Supports DDR4 memory modules up to 3600(O.C.) MHz
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Supports non-ECC UDIMM memory modules
- Supports Extreme Memory Profile (XMP) memory modules
Expansion Slots:
- 1 x PCI Express x16 slot (PCI Express 3.0 standard)
- Supports PCIe x16 slot bifurcation in 2×8 mode by riser card
- 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
USB
- Intel® USB 3.0 with USB Type-C™ – The world’s next Universal connector
- 2 x USB 2.0/1.1 ports available through internal USB header
- 6 x USB 3.0/2.0 ports (4 on back panel, 2 internal)
- 1 x USB Type-C™ port on back panel with USB 3.0 support
Wireless Communication Module:
- Wi-Fi 802.11 a/b/g/n/ac Dual-Band
- BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
- Support for 11ac wireless standard and up to 867 Mbps data rate
Storage Interface:
- 1 x M.2 Socket 3 connector on back of motherboard (Socket 3, M key, type 2260/2280 SATA & PCIe x4/x2/x1 SSD support)
- 2 x SATA Express connectors
- 6 x SATA 6Gb/s connectors
- Supports RAID 0, RAID 1, RAID 5, and RAID 10
Audio:
- Realtek® ALC1150 codec, High Definition Audio
- 2/4/5.1/7.1-channel support
- Support for S/PDIF Out
LAN:
- 2 x Intel® GbE LAN chips (10/100/1000 Mbit)
Back Panel Connectors:
- 1 x PS/2 keyboard/mouse port
- 2 x HDMI ports
- 2 x SMA antenna connectors (2T2R)
- 1 x DVI-D port
- 4 x USB 3.0/2.0 ports
- 1 x USB Type-C™ port, with USB 3.0 support
- 2 x RJ-45 ports
- 1 x optical S/PDIF Out connector
- 5 x audio jacks
Internal I/O Connectors:
- Various internal headers for power, fan, USB, audio, and more
I/O Controller:
- iTE® I/O Controller Chip
Unique Features:
- Support for APP Center
- Bundled software includes Norton Internet Security (OEM version), Intel® Smart Response Technology, Intel® Wireless Display, and cFosSpeed
Operating System:
- Windows® 10 64-bit (for 7th Generation Intel® Processors)
- Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bit (for 6th Generation Intel® Processors)

Contact us:

For additional information regarding our products or more information about GA-Z170N-WIFI, feel free to get in touch with us. You can call us at 770-870-1760 or email us at info@Cyndtek.com. We look forward to assisting you and guaranteeing your satisfaction with Cyndtek products.
