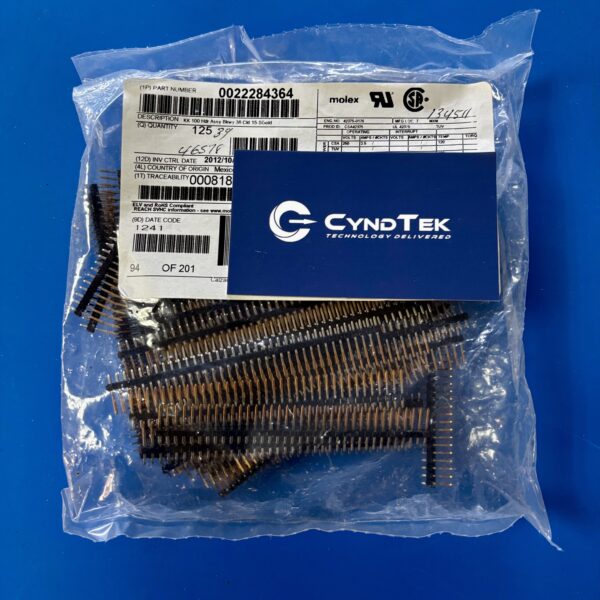

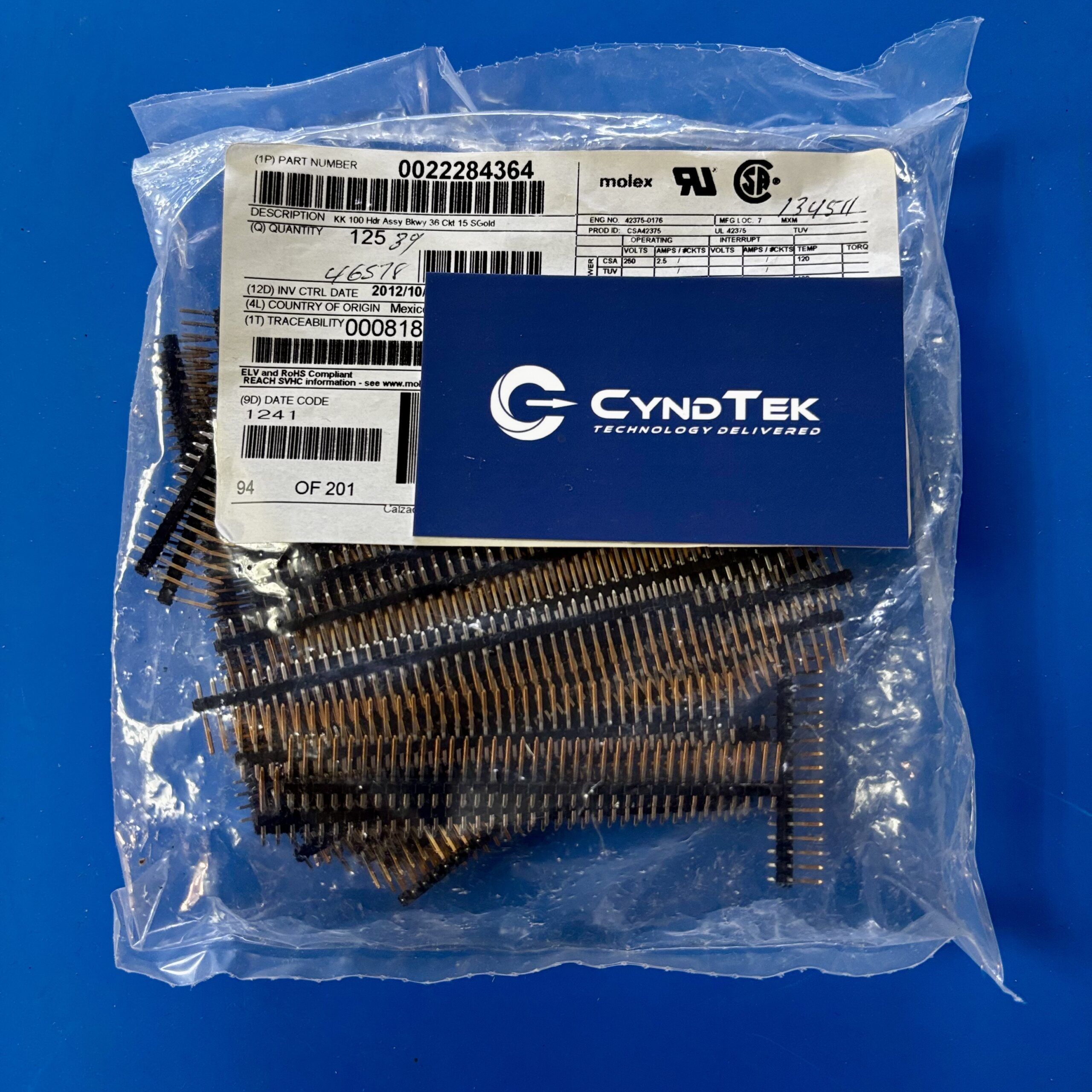

0022284364

0022284364 Specifications

Manufacturer: Molex
Part Number: 0022284364
Product Type: Connector Header
Connector Type: Header, Breakaway
Contact Type: Male Pin
Pitch – Mating Interface: 0.100″ (2.54mm)
Number of Positions: 36
Number of Rows: 1
Mounting Type: Through Hole
Termination Style: Solder
Fastening Type: Push-Pull
Contact Length – Mating: 0.320″ (8.13mm)
Contact Length – Post: 0.120″ (3.05mm)
Overall Contact Length: 0.530″ (13.46mm)
Insulation Height: 0.090″ (2.29mm)
Contact Shape: Square
Contact Finish – Mating: Gold
Finish Contact Thickness – Mating: 15.0µin (0.38µm)
Contact Finish – Post: Tin
Insulation Material: Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Applications: Automotive, General Purpose, Medical, Telecommunications
Compliance: RoHS Compliant

Key Features

The 0022284364 is a 36-position, single-row, breakaway header designed for versatile connectivity in various electronic applications. Its 2.54mm pitch facilitates standard interfacing, while the through-hole mounting ensures robust mechanical stability. Gold-plated mating contacts enhance conductivity and provide resistance to corrosion, ensuring reliable long-term performance. The black, glass-filled nylon insulation meets UL94 V-0 flammability standards, offering durability and safety in demanding environments.

Applications

Automotive systems requiring reliable board-to-board connections
Medical devices necessitating precise and stable interconnects
Telecommunication equipment with high-density circuit boards
General-purpose electronic projects and prototyping

Product Overview

The Molex 0022284364 header provides a dependable solution for board-to-board or cable-to-board connections across multiple industries. Its breakaway design allows for customization of the number of positions, offering flexibility in design configurations. The combination of gold-plated contacts and UL94 V-0 rated insulation ensures both electrical reliability and compliance with stringent safety standards. This connector is suitable for applications where space constraints and high performance are critical considerations.
