0603CS-R18XJLW

0603CS-R18XJLW

$0.20

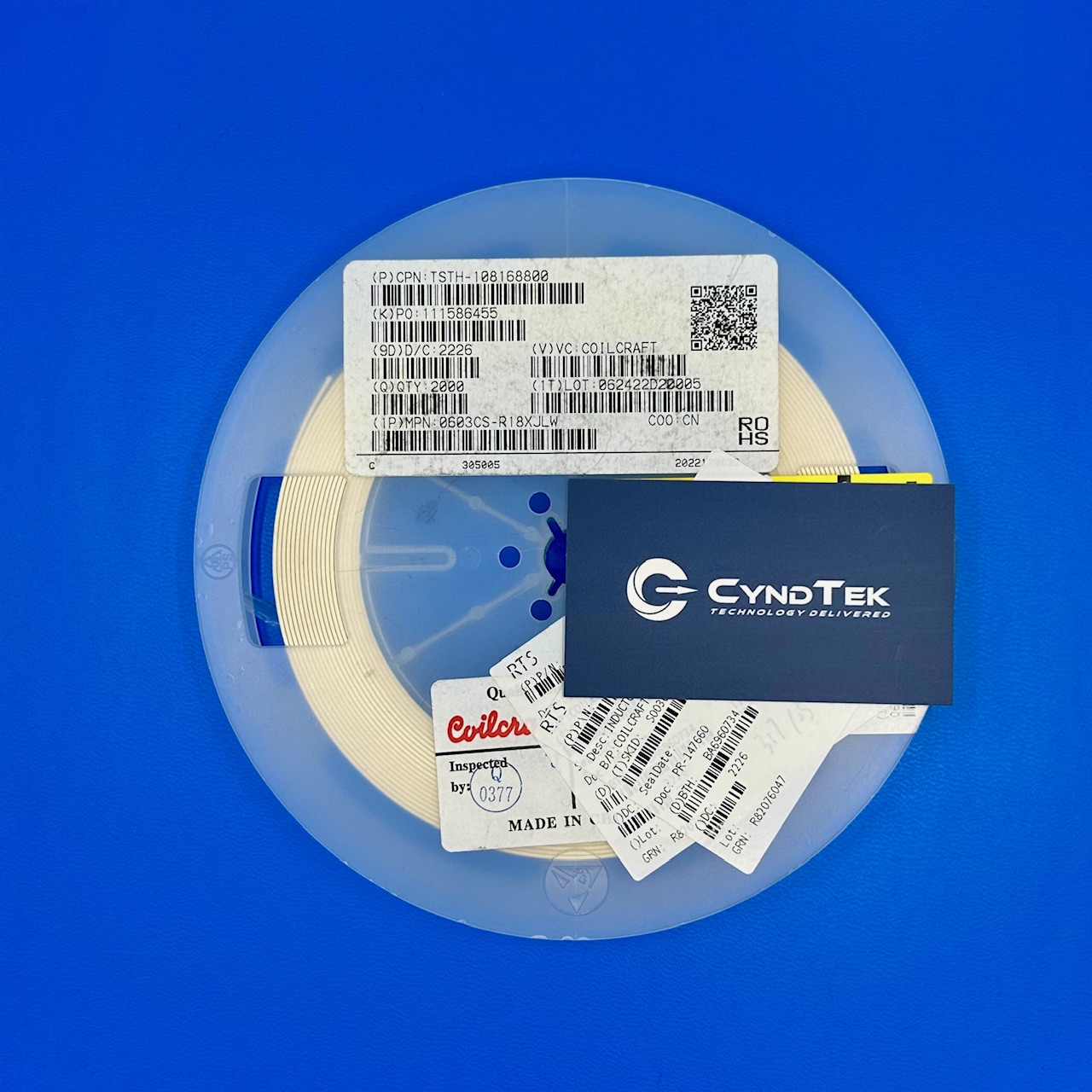

INDUCTOR, FIXED; SIGNAL; 180NH 5% RF SMD
  • Manufacturer: Coilcraft
  • Part Number: 0603CS-R18XJLW
  • Packaging: Tape and Reel
  • Quantity: Each
  • Datecode: 2226

Availability: 1791 in stock

SKU TSX062BX Category Brand:

0603CS-R18XJLW Specifications

Manufacturer: Coilcraft
Part Number: 0603CS-R18XJLW
Product Type: Wirewound Chip Inductor
Inductance: 180 nH
Tolerance: ±5%
Maximum DC Current: 240 mA
Maximum DC Resistance (DCR): 1.02 Ω
Self-Resonant Frequency (SRF): 1.5 GHz
Q Factor: 40 at 250 MHz
Shielding: Unshielded
Package / Case: 0603 (1608 metric)
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant

Key Features

The 0603CS-R18XJLW is a wirewound chip inductor designed for high-frequency applications requiring stable inductance and low loss. With an inductance value of 180 nH and a tolerance of ±5%, it ensures consistent performance across various operating conditions. The inductor supports a maximum DC current of 240 mA and exhibits a maximum DC resistance of 1.02 Ω, balancing current handling capability with minimal power loss. Its self-resonant frequency of 1.5 GHz makes it suitable for RF applications, while the Q factor of 40 at 250 MHz indicates efficient energy storage and low signal loss. The unshielded design allows for a compact form factor, facilitating integration into space-constrained circuits.

Applications

RF circuits requiring precise inductance values
High-frequency signal processing in communication devices
Impedance matching in antenna designs
Filtering applications in wireless systems
Decoupling and noise suppression in electronic circuits

Product Overview

Coilcraft’s 0603CS-R18XJLW wirewound chip inductor offers a reliable solution for engineers seeking high-performance components for RF and high-frequency applications. Its compact 0603 package supports surface-mount technology, enabling efficient assembly in modern electronic designs. Operating over a temperature range from -40°C to +85°C, it maintains consistent performance in diverse environmental conditions. The combination of a high self-resonant frequency and a favorable Q factor ensures that this inductor meets the demands of applications requiring efficient energy transfer and minimal signal loss. Its RoHS compliance underscores Coilcraft’s commitment to environmental responsibility.
