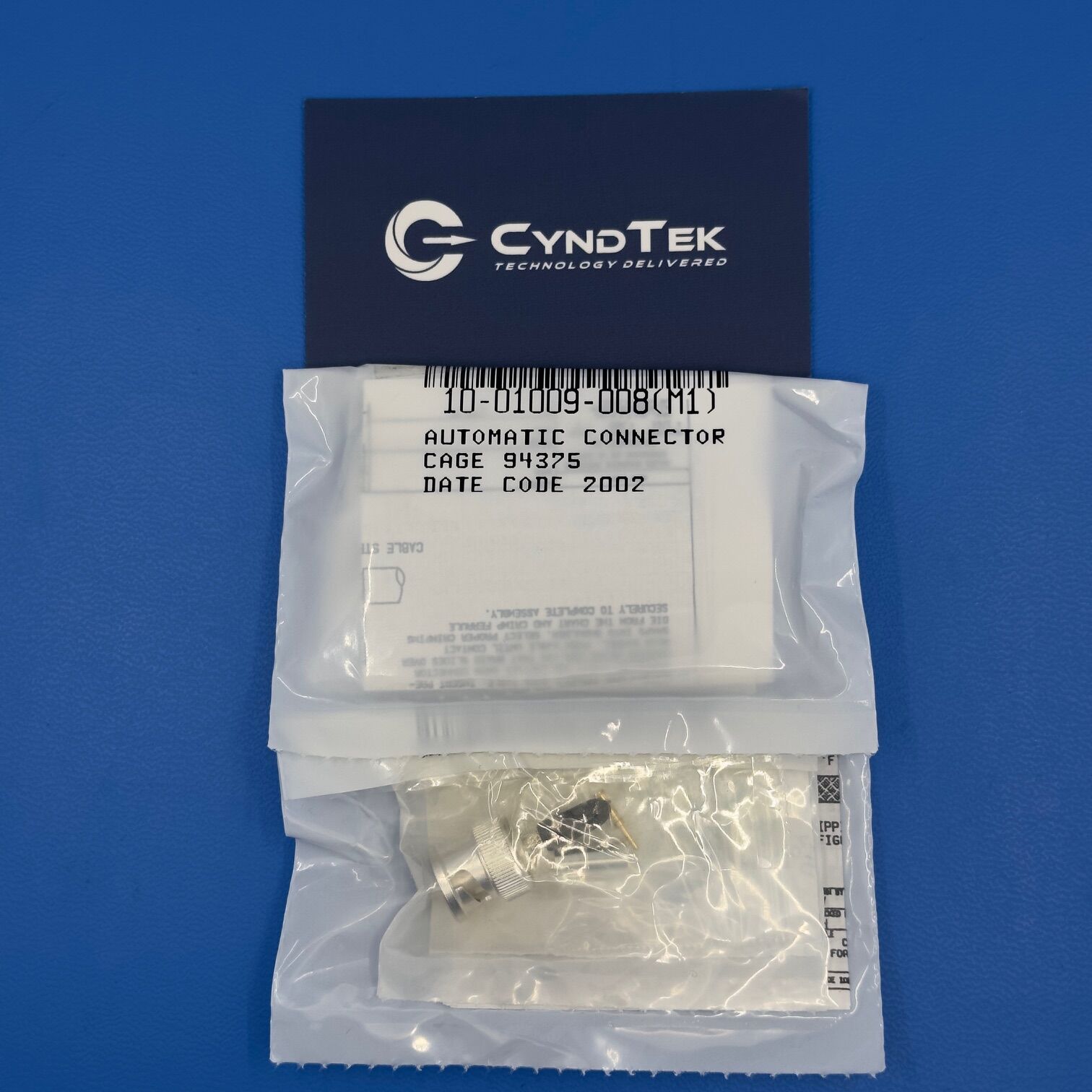

10-01009-008(M1) Specifications
Manufacturer: Automatic Connector, Inc.
Part Number: 10-01009-008(M1)
NSN: 5935-01-413-9606
Connector Type: RF Coaxial Connector
Interface Type: TNC
Impedance: 50 Ohm
Configuration: Straight
Termination Type: Crimp
Contact Gender: Plug
Body Material: Stainless Steel
Contact Plating: Gold
Frequency Range: DC to 11 GHz
Compliance: MIL-PRF-39012
Packaging: Factory
Key Features
The 10-01009-008(M1) is a MIL-PRF-39012 qualified RF coaxial connector engineered for high-reliability signal transmission. It supports 50 ohm impedance for consistent RF performance. Additionally, the straight plug configuration simplifies coaxial cable routing. The crimp termination ensures secure mechanical and electrical connection. Because it meets military performance standards, it integrates directly into regulated aerospace and defense systems. As a result, it delivers dependable signal integrity in demanding operational environments.
Applications
Military aircraft RF communication systems
Ground vehicle antenna assemblies
Naval radar signal modules
Aerospace instrumentation interfaces
Defense electronic warfare systems
Secure tactical communication networks
High-frequency test equipment
Precision RF cable assemblies
Product Overview
The 10-01009-008(M1) from Automatic Connector, Inc. delivers rugged RF connectivity for mission-critical applications. First, its 50 ohm impedance supports stable signal transmission across communication systems. Furthermore, the stainless steel body enhances mechanical durability and corrosion resistance. Because it is qualified to MIL-PRF-39012 standards, it ensures compliance within aerospace and defense procurement programs.
Moreover, the gold-plated center contact supports low contact resistance and long-term performance. In addition, the crimp termination method allows repeatable cable assembly results. Therefore, it is suitable for both new production builds and maintenance replacements. Overall, this RF connector provides reliable electrical performance, structural integrity, and military-grade durability.
