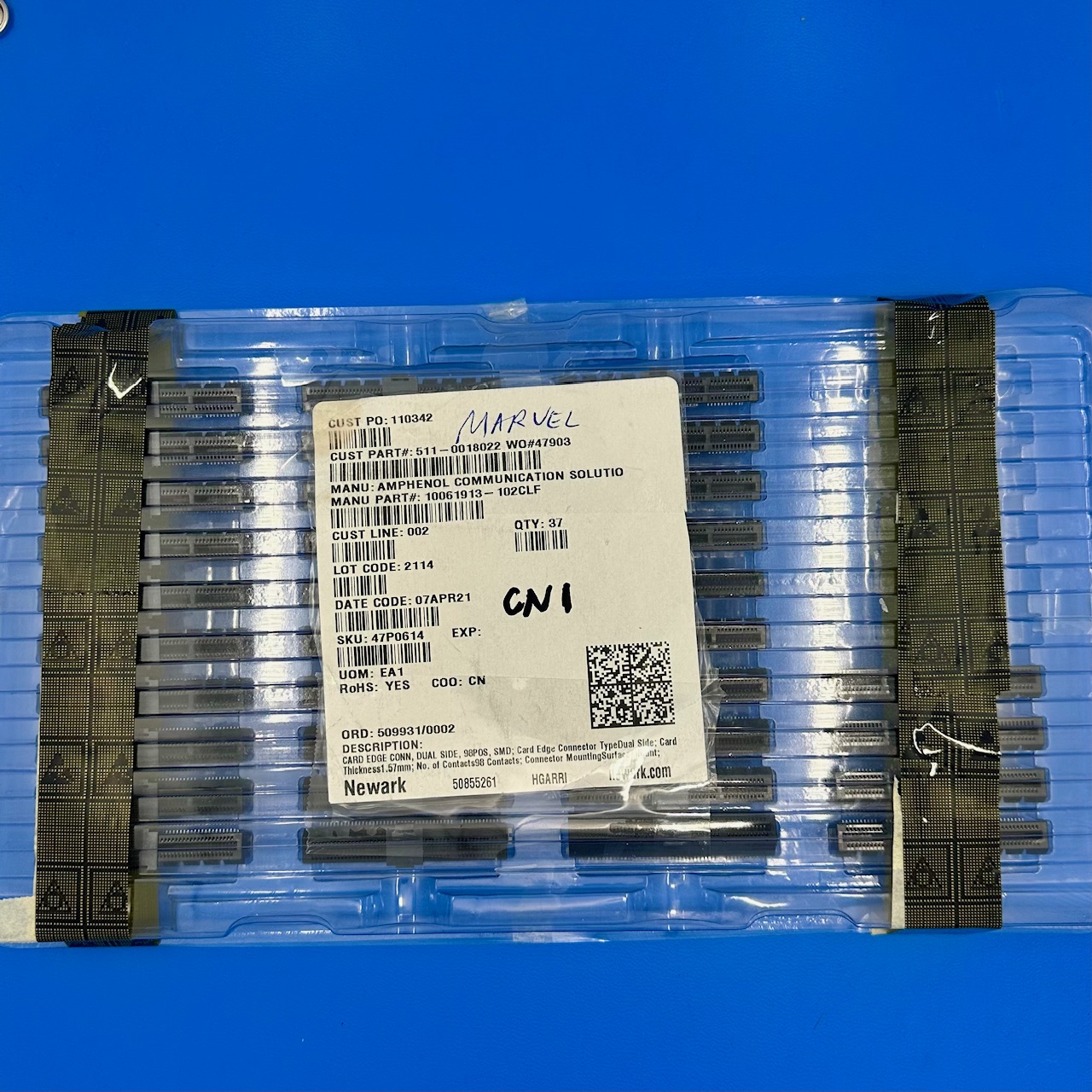

10061913-102CLF

10061913-102CLF Specifications

Manufacturer: Amphenol Communications Solutions
Part Number: 10061913-102CLF
Product Type: PCIe Card Edge Connector
Number of Positions: 98
Pitch – Mating Interface: 1.00 mm
Mounting Type: Vertical, Surface Mount
Termination Style: Solder
Contact Material: Copper Alloy
Contact Plating: Gold
Housing Material: Glass-Filled Nylon
Color – Resin: Black
Current Rating: 1.1A per contact
Voltage Rating: 30V AC/DC
Operating Temperature Range: -55°C to +85°C
Durability: 50 mating cycles
Insertion Force: 20N max
Extraction Force: 5N min
Compliance: RoHS Compliant

Key Features

The 10061913-102CLF PCIe connector is engineered for high-density signal transmission with its 1.00 mm pitch and 98-position configuration. Its vertical surface-mount design allows for compact board layouts without compromising on stability or performance. Gold-plated copper alloy contacts ensure low resistance and long-term conductivity in demanding signal environments. A durable, glass-filled nylon housing offers mechanical integrity and heat tolerance. Furthermore, the solder-style termination enables precise placement during automated assembly.

Applications

High-performance servers with modular PCIe slots
Industrial control systems with high-speed backplane interfaces
AI computing systems using custom expansion cards
Data center storage solutions requiring edge connectors
Telecom equipment with dense board-to-board PCIe architecture

Product Overview

The 10061913-102CLF is a surface-mount PCIe card edge connector built for robust performance in data-driven systems. Its 98-contact layout, paired with a 1.00 mm pitch, allows for fast and stable electrical connections in space-constrained designs. The gold contact interface enhances signal clarity while withstanding repeated mating cycles. Its vertical profile makes it ideal for applications that demand precise alignment and rigid retention. Designed to operate between -55°C and +85°C, it meets the reliability requirements of industrial, server, and communications markets. The combination of compact size, high conductivity, and mechanical strength makes it a top choice for designers seeking secure PCIe integration.
