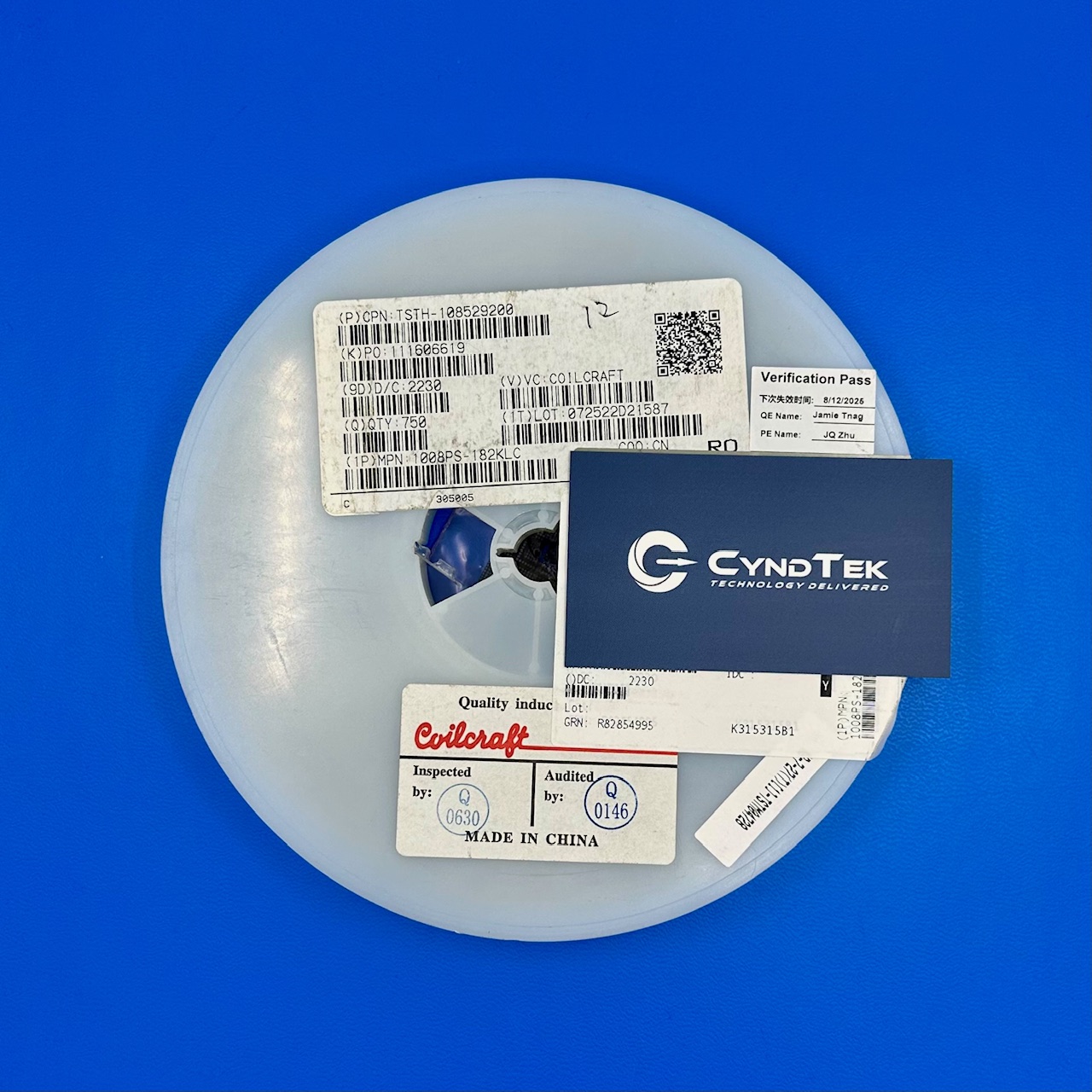

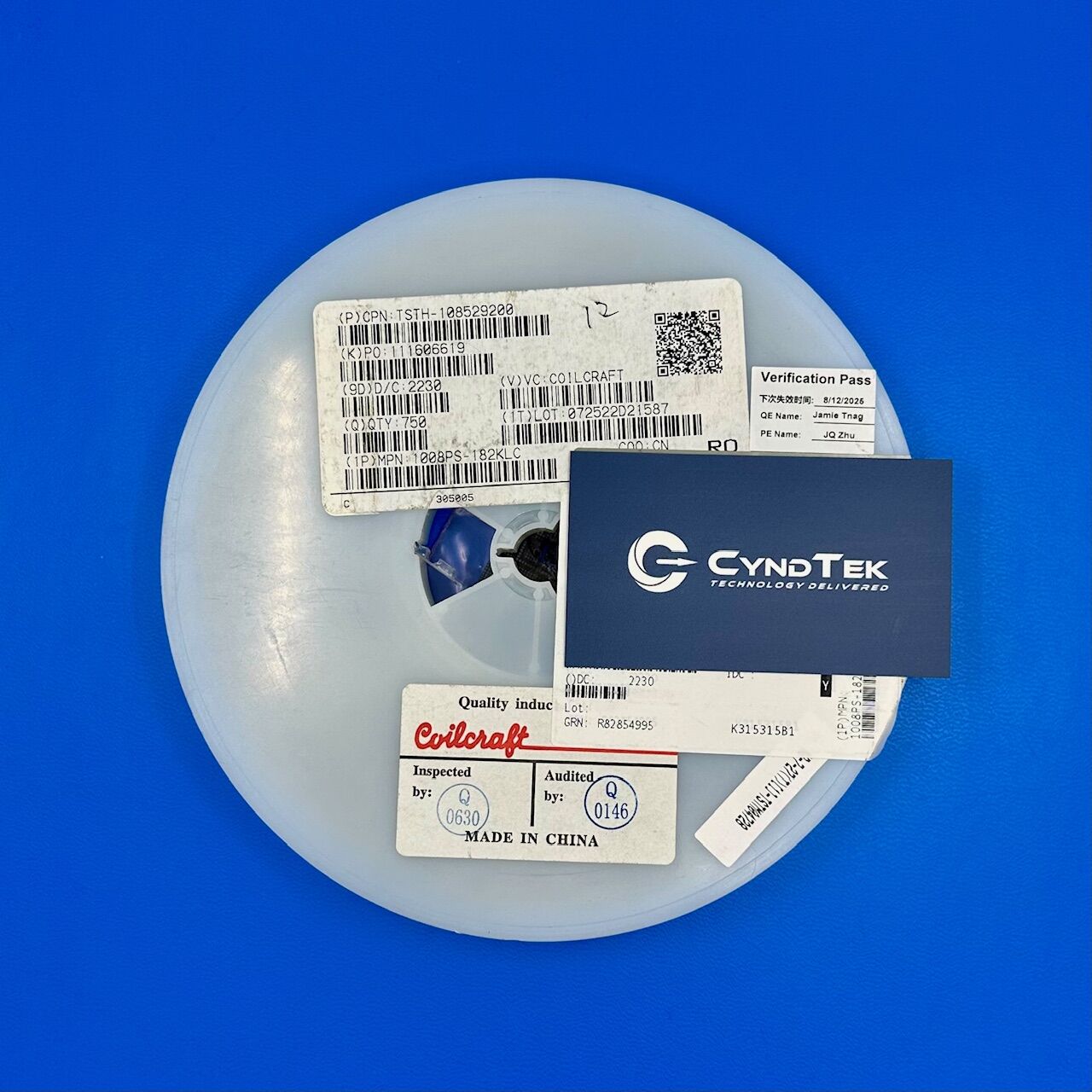

1008PS-182KLC

1008PS-182KLC

$2.00

INDUCTOR, FIXED; POWER; 1:8UH 10% SMT
  • Manufacturer: Coilcraft
  • Part Number: 1008PS-182KLC
  • Packaging: Tape and Reel
  • Quantity: Each
  • Datecode: 2230

Availability: 748 in stock

SKU TSX062AX Category Brand:

1008PS-182KLC Specifications

Manufacturer: Coilcraft
Part Number: 1008PS-182KLC
Product Type: Shielded High SRF Inductor
Inductance: 1.8 µH ±10%
Current Rating (Irms): 1.4 A
Saturation Current (Isat): 2.3 A at 10% inductance drop
DC Resistance (DCR): 0.09 Ohms
Self-Resonant Frequency (SRF): 253 MHz
Q Factor: 35 minimum at 1 MHz
Tolerance: ±10%
Shielding: Yes
Mounting Type: Surface Mount
Package / Case: 1008 (2520 Metric)
Operating Temperature Range: -40°C to +105°C
RoHS Status: RoHS Compliant

Key Features

The 1008PS-182KLC is a shielded surface-mount inductor designed for high-frequency applications requiring stable inductance and low core losses. With an inductance value of 1.8 µH and a ±10% tolerance, it ensures consistent performance across various operating conditions. The inductor supports a current rating of 1.4 A and can handle a saturation current of up to 2.3 A with a 10% inductance drop, making it suitable for power supply and filtering applications. Its low DC resistance of 0.09 Ohms minimizes energy losses, enhancing overall efficiency. The high self-resonant frequency of 253 MHz allows for effective operation in high-frequency circuits. Additionally, the shielded construction reduces electromagnetic interference, ensuring signal integrity in sensitive applications.

Applications

Power supply filtering in high-frequency circuits
DC-DC converters requiring stable inductance values
Noise suppression in signal processing equipment
RF applications demanding high self-resonant frequencies
Telecommunication devices with stringent EMI requirements

Product Overview

Coilcraft’s 1008PS-182KLC inductor offers a reliable solution for engineers seeking high-performance components for high-frequency applications. Its shielded design effectively minimizes electromagnetic interference, which is crucial for maintaining signal integrity in sensitive electronic circuits. The inductor’s compact 1008 package facilitates easy integration into densely populated PCBs, making it ideal for modern, space-constrained designs. Operating over a wide temperature range from -40°C to +105°C, it ensures consistent performance in various environmental conditions. The combination of low DC resistance and high current handling capabilities makes the 1008PS-182KLC a versatile choice for applications requiring efficient energy transfer and minimal power losses.
