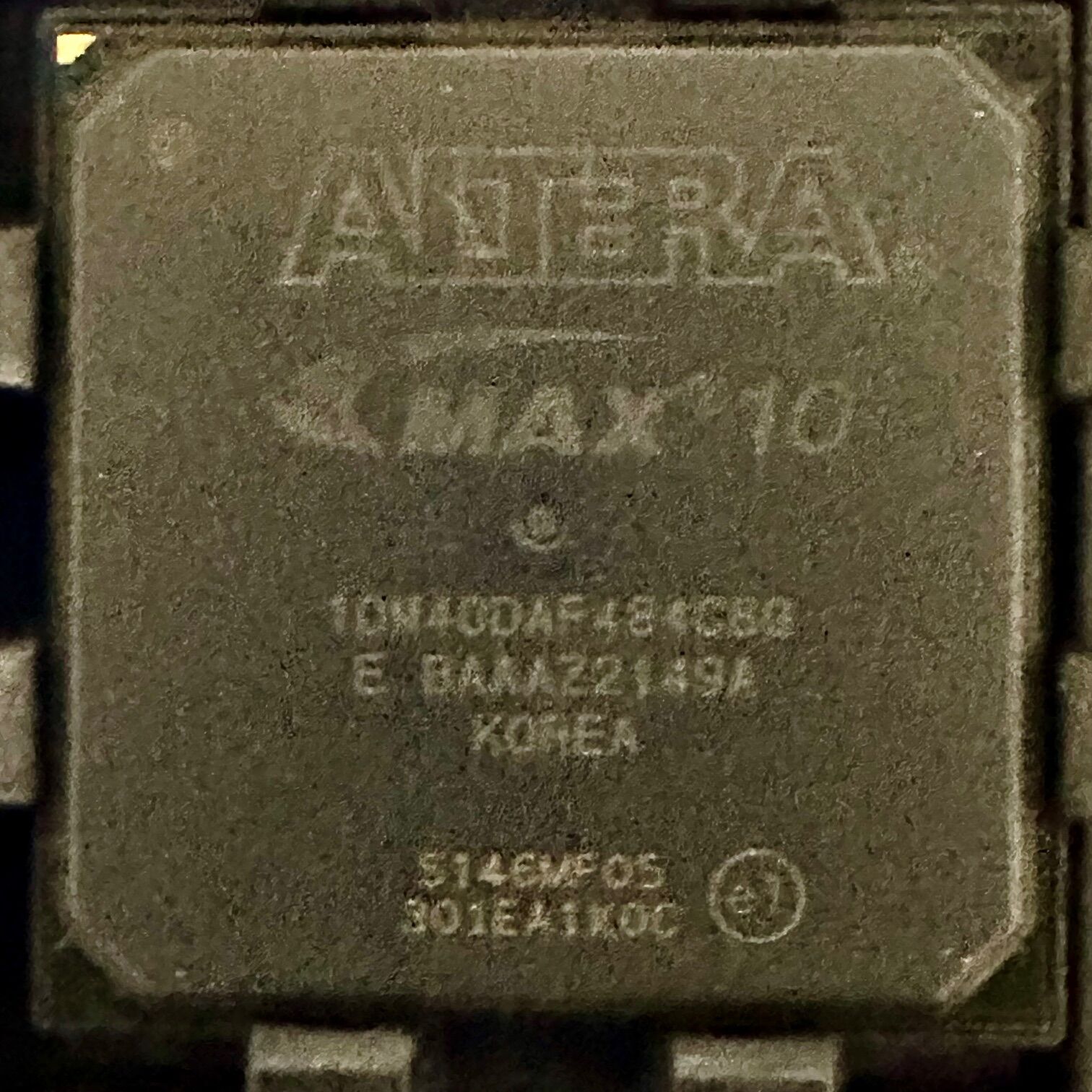

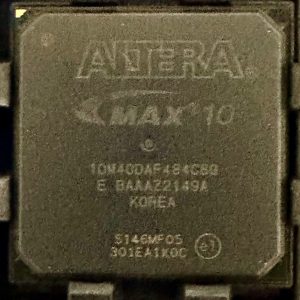

10M40DAF484C8G Specifications
Manufacturer: Intel (formerly Altera)
Part Number: 10M40DAF484C8G
Product Type: FPGA – Field Programmable Gate Array
Family: MAX® 10
Logic Elements: 40,000
Embedded Memory: 1,435 Kbits
Number of I/Os: 360
Operating Temperature Range: 0°C to +85°C (Commercial)
Package / Case: 484-BGA
Mounting Type: Surface Mount
Voltage Supply: 1.2V Core, 3.3V I/O
Speed Grade: 8
Features: On-chip Flash, ADC, PLL
Configuration: Internal Flash
RoHS Status: RoHS Compliant
Key Features
The 10M40DAF484C8G is a member of Intel’s MAX® 10 FPGA family, offering a powerful combination of logic resources and integrated features. It includes 40,000 logic elements and 1,435 Kbits of embedded memory. Additionally, it features on-chip flash memory, integrated ADC, and PLLs. Its 484-ball BGA package supports high I/O density while maintaining a compact footprint. With a 1.2V core supply and support for 3.3V I/O, this device fits easily into mixed-voltage systems. Designed for flexibility, it enables fast configuration from internal flash and supports instant-on operation.
Applications
Industrial control and automation
Communications infrastructure
Consumer electronics and IoT gateways
Test and measurement systems
Power management and motor control
Embedded computing platforms
Product Overview
The 10M40DAF484C8G from Intel delivers high-performance logic and mixed-signal integration in one FPGA. It features 40,000 logic elements, embedded memory, and on-chip flash, eliminating the need for external configuration devices. Because of its built-in ADC and PLLs, it supports analog integration and clock management in a single chip. The 484-BGA package provides 360 I/O pins, making it suitable for high-connectivity designs. Furthermore, the MAX® 10 architecture enables fast startup and low power operation. This makes it an excellent choice for cost-sensitive designs that still demand advanced functionality. Whether in industrial, communications, or embedded systems, this FPGA offers a well-balanced mix of performance, integration, and flexibility.
Contact Us
For additional information regarding our products, feel free to get in touch with us. You can call us at 770-870-1760 or email us at info@Cyndtek.com. We look forward to assisting you and ensuring your satisfaction with all of our Cyndtek products.
