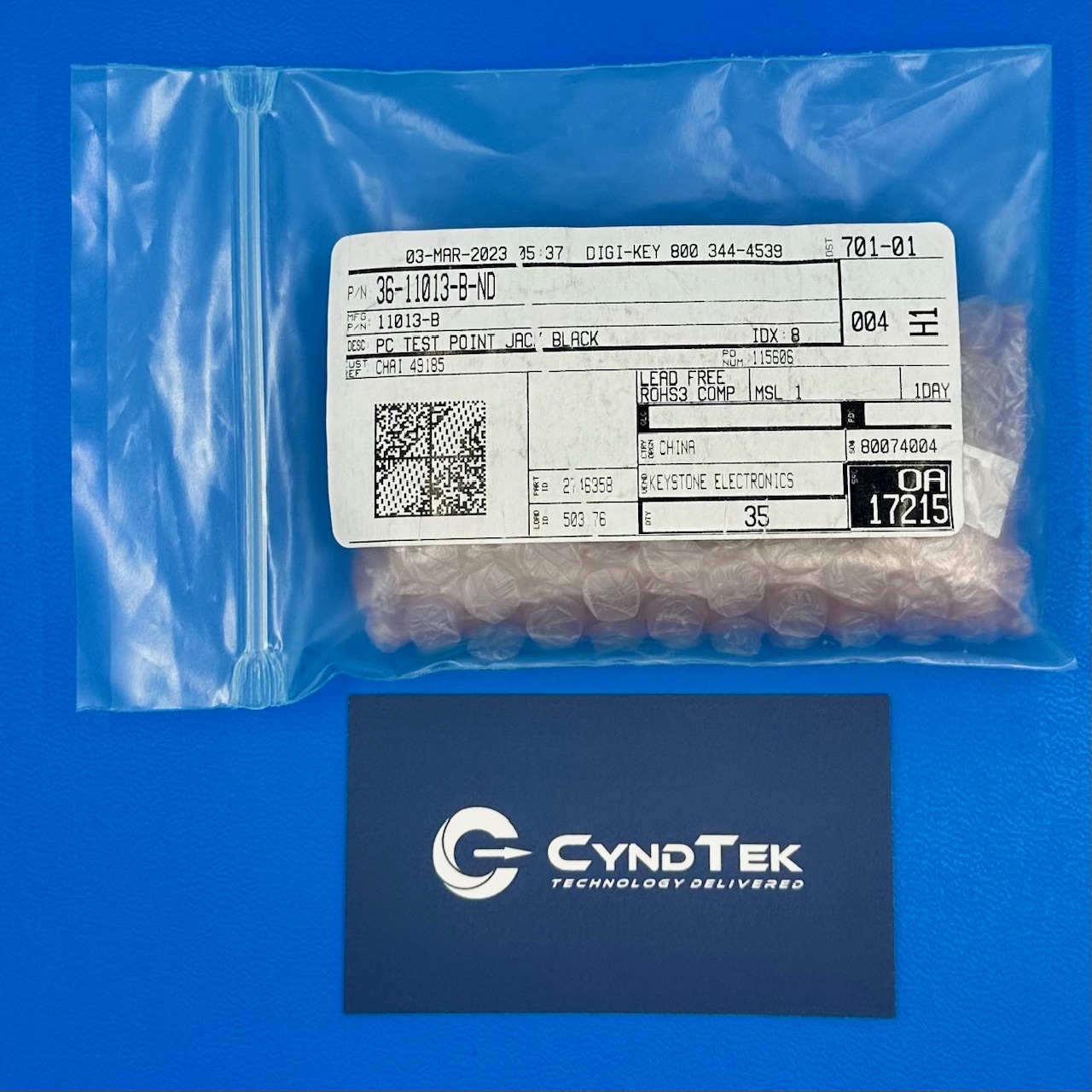

11013-B Specifications
Manufacturer: Keystone Electronics
Product Category: Passive Component
Component Type: Test Point / Terminal Post
Mounting Style: Through-Hole
Post Material: Brass with tin plating
Shank Length: Standard length for PCB access
Head Style: Dual-sided test point head
Current Rating: Suitable for low-power signal test access
Voltage Rating: Standard PCB signal levels
Operating Temperature Range: –40 °C to +85 °C
Insulator Material: Thermoplastic with UL rating
Package / Case: Single test point terminal
Category: Passive Component
Key Features:
Moreover, the 11013-B offers a dual-sided head that enables easy probe access from both sides of the board. Additionally, the tin-plated brass post ensures good conductivity and corrosion resistance. Also, its through-hole mounting provides strong mechanical retention. Furthermore, the thermoplastic insulator holds tight under thermal stress. Finally, this test point works well in both prototyping and production testing.
Applications:
Printed circuit board test access
Signal probing in prototypes
In-circuit testing fixtures
Repair and diagnostics stations
Embedded system test points
Product Overview:
The 11013-B from Keystone Electronics is a versatile PCB test point designed to give engineers and technicians easy access to signals on a circuit board. Consequently, its dual-sided head simplifies probing during debug and test procedures. In addition, the robust tin-plated brass construction ensures reliable electrical contact and lasting durability. Also, the through-hole design improves board retention compared to surface-mount alternatives. Furthermore, the thermoplastic insulator maintains its form under typical operating temperatures, which helps preserve connection integrity. Therefore, this component suits both development labs and production test environments. Moreover, its standard ratings allow it to interface safely with common low-voltage signal lines. As a result, the 11013-B test point helps streamline validation, troubleshooting, and quality assurance in many electronic assemblies. In addition, its simple design keeps costs low while delivering dependable performance.
