150060SS75000

150060SS75000

$0.09

LED RED CLEAR 0603 SMD
  • Manufacturer: Wurth Elektronics
  • Part Number: 150060SS75000

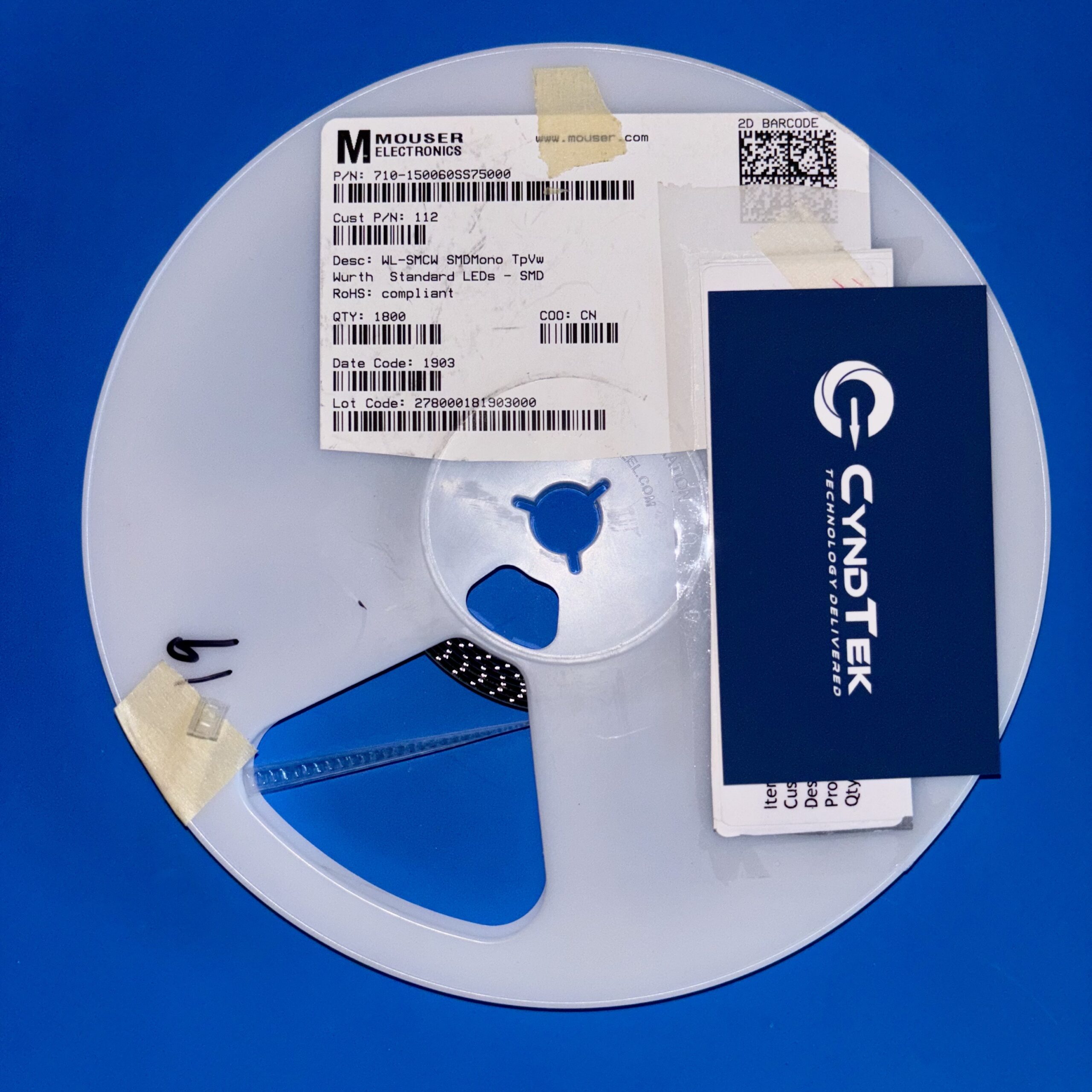

  • Packaging: Tape and Reel
  • Quantity: Each
  • Datecode: 1903

Availability: 340 in stock

SKU PAC004C-2 Category Brand:

150060SS75000 Specifications

Manufacturer: Würth Elektronik
Part Number: 150060SS75000
Product Type: Surface-Mount Chip LED
Color: Red
Dominant Wavelength: 630 nm
Luminous Intensity: 30 to 60 mcd at 20 mA
Forward Voltage: 1.9 V (typical) at 20 mA
Forward Current: Up to 30 mA
Viewing Angle: 140°
Package / Case: 0603 (1608 Metric)
Lens Color: Colorless
Lens Transparency: Clear
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant

Key Features

The 150060SS75000 from Würth Elektronik is a red surface-mount chip LED designed for applications requiring efficient and reliable visual indicators. Emitting at a dominant wavelength of 630 nm, it provides clear and consistent red illumination. The LED offers a luminous intensity ranging from 30 to 60 mcd when driven at 20 mA, ensuring visibility in various lighting conditions. With a typical forward voltage of 1.9 V, it operates efficiently within standard circuit designs. The wide 140° viewing angle facilitates broad light dispersion, making it suitable for applications needing wide-area illumination. Encased in a compact 0603 package with a clear, colorless lens, this LED supports high-density PCB layouts and offers design flexibility. Its robust operating temperature range from -40°C to +85°C ensures reliable performance in diverse environmental conditions.

Applications

Backlighting for mobile and portable device keypads.
Indicators in industrial control panels and instrumentation.
Status lights in consumer electronics such as remote controls and audio equipment.
Illumination for automotive dashboard indicators and instrument clusters.
Visual signals in communication devices and networking equipment.

Product Overview

Würth Elektronik’s 150060SS75000 is engineered to deliver reliable and efficient red illumination for a wide range of electronic applications. Its compact 0603 surface-mount package allows for seamless integration into space-constrained designs, while the clear lens ensures optimal light output. The LED’s low forward voltage and wide viewing angle contribute to its energy efficiency and effective illumination coverage. Designed to operate across a broad temperature range, it maintains consistent performance in varying environmental conditions. This LED is an ideal choice for designers seeking a compact, efficient, and reliable light source for indicators and backlighting in electronic devices.
