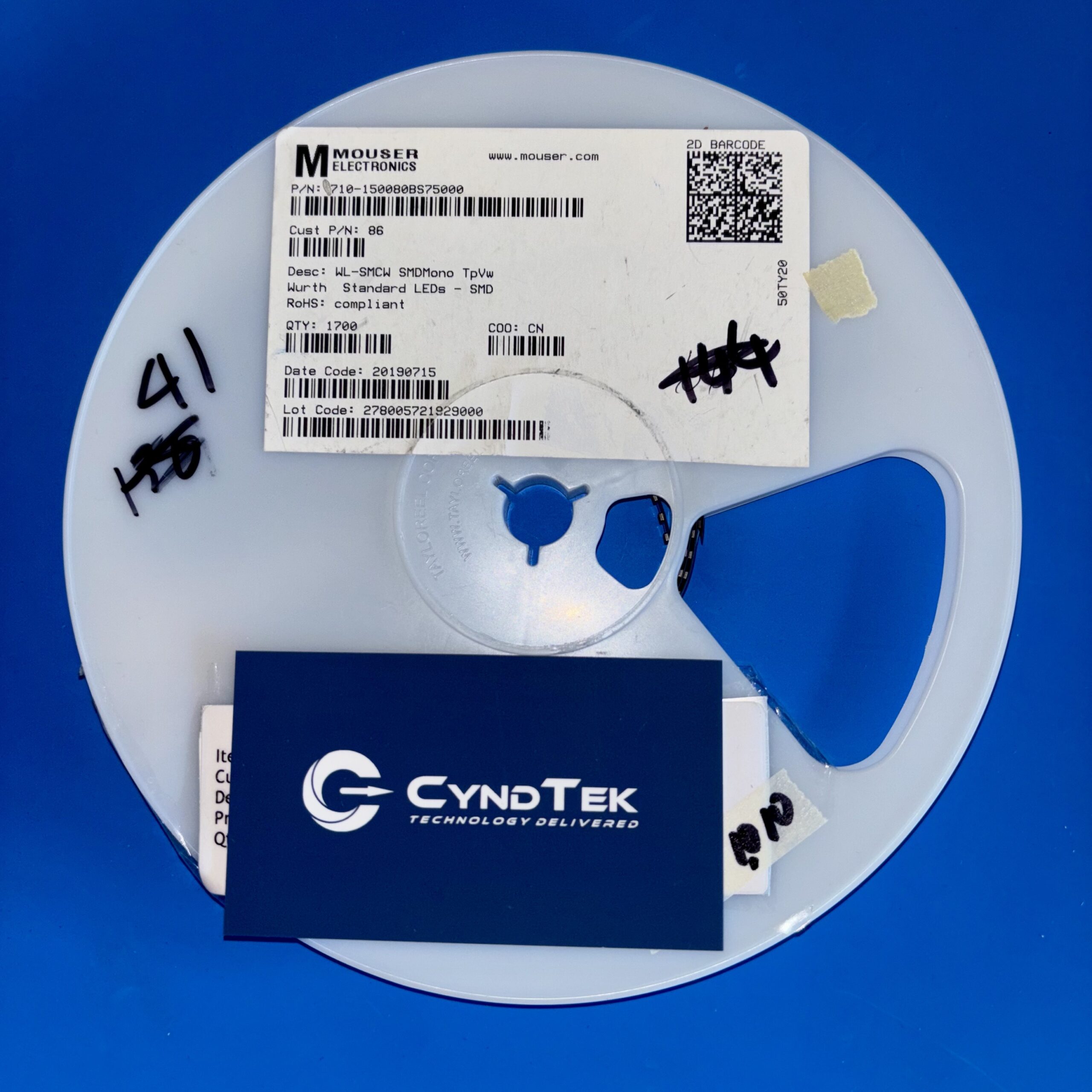

150080BS75000 Specifications
Manufacturer: Würth Elektronik
Part Number: 150080BS75000
Product Type: Surface-Mount Chip LED
Emitting Color: Blue
Dominant Wavelength: 470 nm
Luminous Intensity: 90 to 145 mcd at 20 mA
Forward Voltage: 3.2 V (typical) at 20 mA
Forward Current: Up to 30 mA
Viewing Angle: 140°
Package / Case: 0805 (2012 Metric)
Lens Type: Waterclear
Chip Technology: InGaN
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant
Key Features
The 150080BS75000 from Würth Elektronik is a blue surface-mount chip LED designed for applications requiring efficient and reliable visual indicators. Emitting at a dominant wavelength of 470 nm, it provides clear and consistent blue illumination. The LED offers a luminous intensity ranging from 90 to 145 mcd when driven at 20 mA, ensuring visibility in various lighting conditions. With a typical forward voltage of 3.2 V, it operates efficiently within standard circuit designs. The wide 140° viewing angle facilitates broad light dispersion, making it suitable for applications needing wide-area illumination. Encased in a compact 0805 package with a waterclear lens, this LED supports high-density PCB layouts and offers design flexibility. Its robust operating temperature range from -40°C to +85°C ensures reliable performance in diverse environmental conditions.
Applications
Backlighting for mobile and portable device keypads.
Indicators in industrial control panels and instrumentation.
Status lights in consumer electronics such as remote controls and audio equipment.
Illumination for automotive dashboard indicators and instrument clusters.
Visual signals in communication devices and networking equipment.
Product Overview
Würth Elektronik’s 150080BS75000 is engineered to deliver reliable and efficient blue illumination for a wide range of electronic applications. Its compact 0805 surface-mount package allows for seamless integration into space-constrained designs, while the waterclear lens ensures optimal light output. The LED’s low forward voltage and wide viewing angle contribute to its energy efficiency and effective illumination coverage. Designed to operate across a broad temperature range, it maintains consistent performance in varying environmental conditions. This LED is an ideal choice for designers seeking a compact, efficient, and reliable light source for indicators and backlighting in electronic devices.
