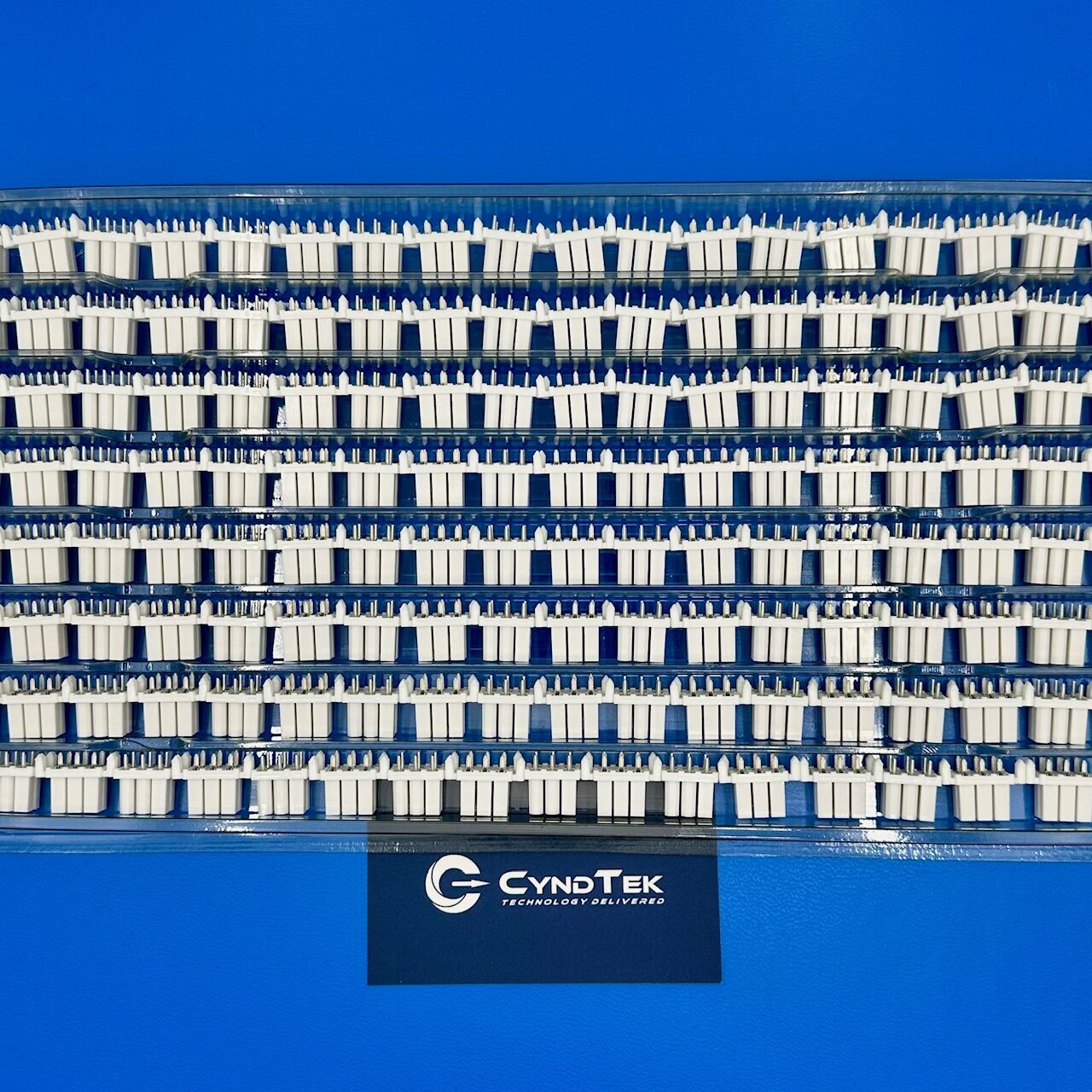

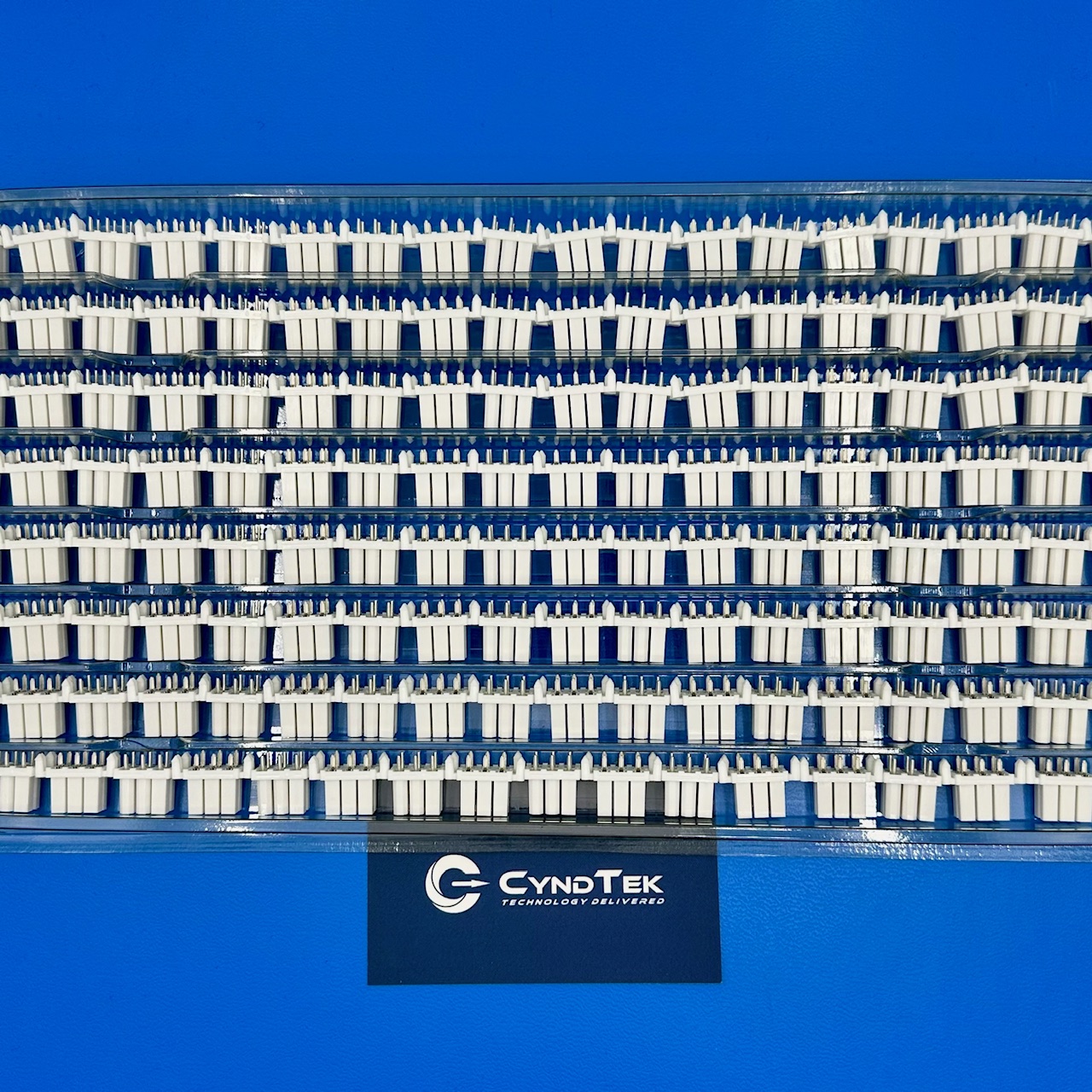

15247063

15247063 Specifications

Manufacturer: Molex
Part Number: 15-24-7063 (0015247063)
Product Type: Rectangular Connector Header
Connector Type: Header, Shrouded
Number of Positions: 6
Number of Rows: 1
Pitch: 3.96mm
Mounting Type: Through Hole
Contact Type: Male Pin
Termination: Solder
Contact Material: Brass
Contact Finish: Tin
Housing Material: Nylon
Color: Natural
Operating Temperature Range: -40°C to +105°C
Current Rating: 7A per contact
Voltage Rating: 600V

Key Features

• 6-position, single-row design for easy connectivity.
• Tin-plated brass contacts ensure reliable electrical performance.
• Shrouded header design provides secure mating with female connectors.
• High current rating of 7A per contact for power applications.
• Robust nylon housing supports durability in harsh environments.

Applications

• Power supplies and distribution systems.
• Consumer electronics and appliances.
• Industrial automation and control systems.
• Automotive and transportation electronics.
• Telecommunications and networking equipment.

Product Overview

The 15247063 is a 6-position rectangular connector header designed for reliable connections in power and signal applications. With a through-hole mounting style and a pitch of 3.96mm, it ensures secure attachment to printed circuit boards. The shrouded design enhances stability and alignment during mating, while the tin-plated brass contacts offer excellent conductivity. Designed for operation in temperatures ranging from -40°C to +105°C, this connector is ideal for use in industrial, automotive, and consumer electronic applications where durability and high current capacity are essential.
