170382-0001

170382-0001 Specifications:

• Model Type: S-parameter
• Model Format: Touchstone (*.sNp)
• Model Filename: SP-170382-0001_revC.s8p
• Data Format: Real/Imaginary
• Model Basis: Analytical 3-D field solution
• Model Source: Ansoft HFSS version 14.0
• Bandwidth: DC – 40.96 GHz
• Resolution: 10 MHz steps
• Reference: 50 ohms
• Number of Points: 4097 (4096 + 1 DC)
• Number of Channels: 2 (differential)
• Number of Ports: 8 (single-ended)
• Channel Type: Coupled pairs + reference
• Validation: TS-170382-0001
• Model Application: Fibre Channel, Ethernet
• Data Rate: 28 Gbps

Additional Information:

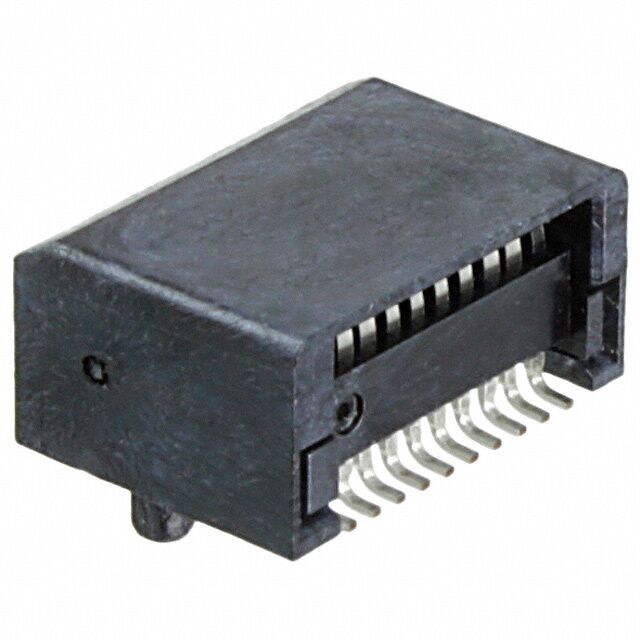

The zSFP+ Connector (Applicable Part Number: 170382-0001) is a high-speed, versatile connector designed to support 10 Gbps Ethernet and 16 Gbps Fiber Channel applications, with the capability to handle 25/28 Gbps applications. This connector model, represented in S-parameter format (Touchstone (*.sNp)), is a powerful tool for analyzing connector performance. It can be utilized either as a standalone model or integrated with other models to form a complete channel setup. Developed using an Analytical 3-D field solution and sourced from Ansoft HFSS version 14.0, this connector offers exceptional bandwidth ranging from DC to 40.96 GHz, with a resolution of 10 MHz steps. With 2 differential channels and 8 single-ended ports, 170382-0001 supports coupled pairs along with a reference channel. The model is validated under TS-170382-0001 and finds applications in high-speed data transmission systems such as Fibre Channel and Ethernet, supporting a robust data rate of 28 Gbps.
