170432-0002 Specifications
- Manufacturer Part Number: 170432-0002
- Series: 170432 – zQSFP Plus – zQSFP1
- Connector Type: zQSFP Plus Receptacle
- Connector System: Module to Board, Board to Board, Wire to Board
- Number of Contacts Loaded: 38
- Number of Ports: 1
- Number of Rows: 1
- Pitch: 0.8 mm
- Orientation: Right Angle
- Keying: No
- Termination Method: Surface Mount
- Contact Material: Copper Alloy
- Contact Mating Area Plating: Gold over Nickel (0.762 µm thickness)
- Amperage Rating: 0.5 A
- Voltage Rating: 30 V AC/DC
- Ground to Panel/PCB: Yes
- Mating Cycles: 50
- PCB Retention: Yes
- Material: Thermoplastic
- Material Flammability Standard: 94V-0
- Lock to Mating Part: Yes
- UL Agency Certification: E29179

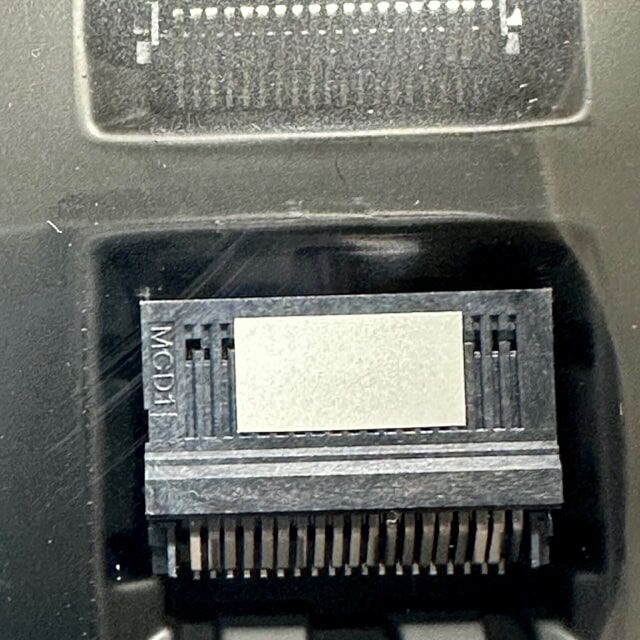

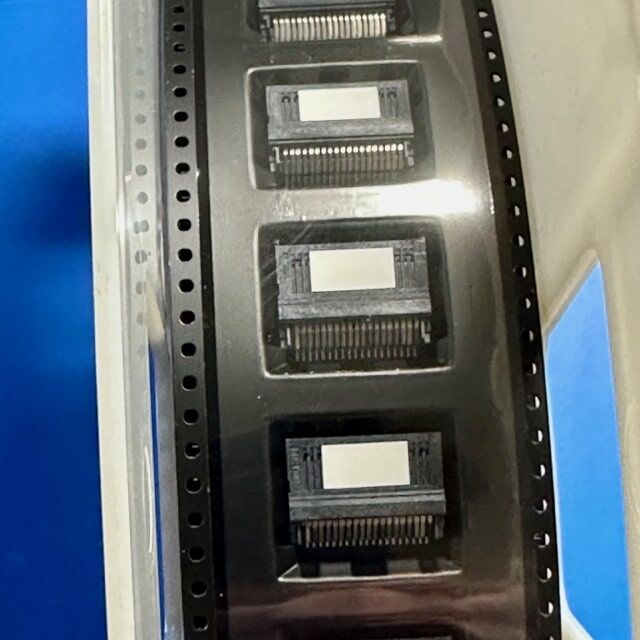

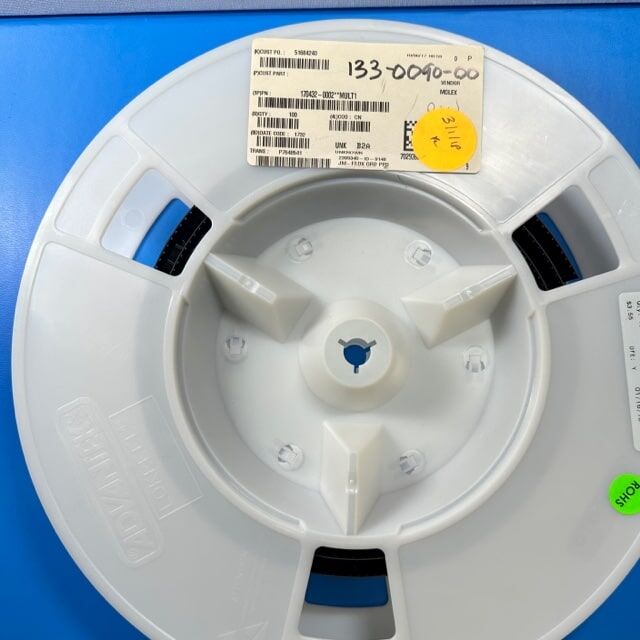

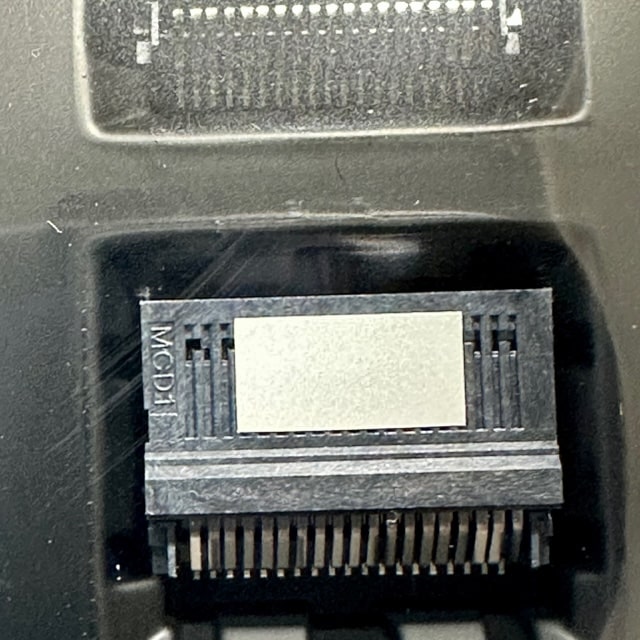

- Packaging: Embossed Tape on Reel
- Supplier Product Group: High-Speed Cage & Connector Assemblies
- Electrical Model: Yes
- Part Aliases: 170432-0002, 1704320002
Product Overview

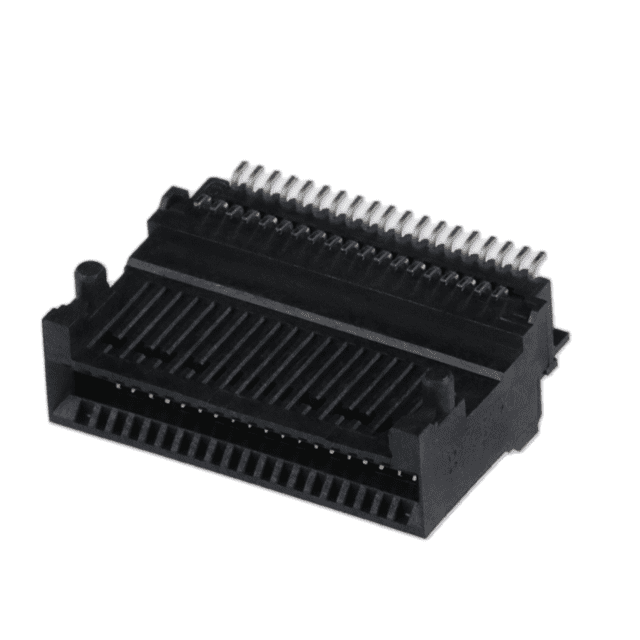

The 170432-0002 is a high-performance zQSFP Plus receptacle connector designed for high-speed data transmission in electronic assemblies. This black, right-angle connector offers a single-row, surface-mount termination, ensuring secure and efficient connectivity in applications requiring reliable signal integrity.
Key Features:
- High Durability: Rated for 50 mating cycles, ensuring long-term performance.
- Superior Conductivity: Features gold over nickel plating on the contact mating area for enhanced signal integrity.
- Secure Connection: Equipped with PCB retention and locking mechanism to ensure a stable connection.
- Compact & Versatile: Supports module-to-board, board-to-board, and wire-to-board connections, making it ideal for various electronic systems.
- Safety & Compliance: Built with thermoplastic housing, compliant with 94V-0 material flammability standards, and UL-certified (E29179) for quality assurance.
Applications:
- High-Speed Data Transmission Systems
- Telecommunications & Networking Equipment
- Server & Data Center Applications
- Industrial & Consumer Electronics
