1704320002

1704320002 Specifications

Manufacturer: Molex
Part Number: 1704320002
Product Type: zQuad Small Form Factor Pluggable Plus (zQSFP+) Receptacle Connector
Number of Positions: 38
Mounting Type: Surface Mount, Right Angle
Termination: Solder
Pitch – Mating Interface: 0.80mm
Contact Finish: Gold
Contact Finish Thickness: 0.762µm
Current – Maximum per Contact: 0.5A
Voltage – Maximum: 30V AC (RMS)
Durability: 50 mating cycles
Orientation: Right Angle
Flammability Rating: 94V-0
Operating Temperature Range: -40°C to +85°C

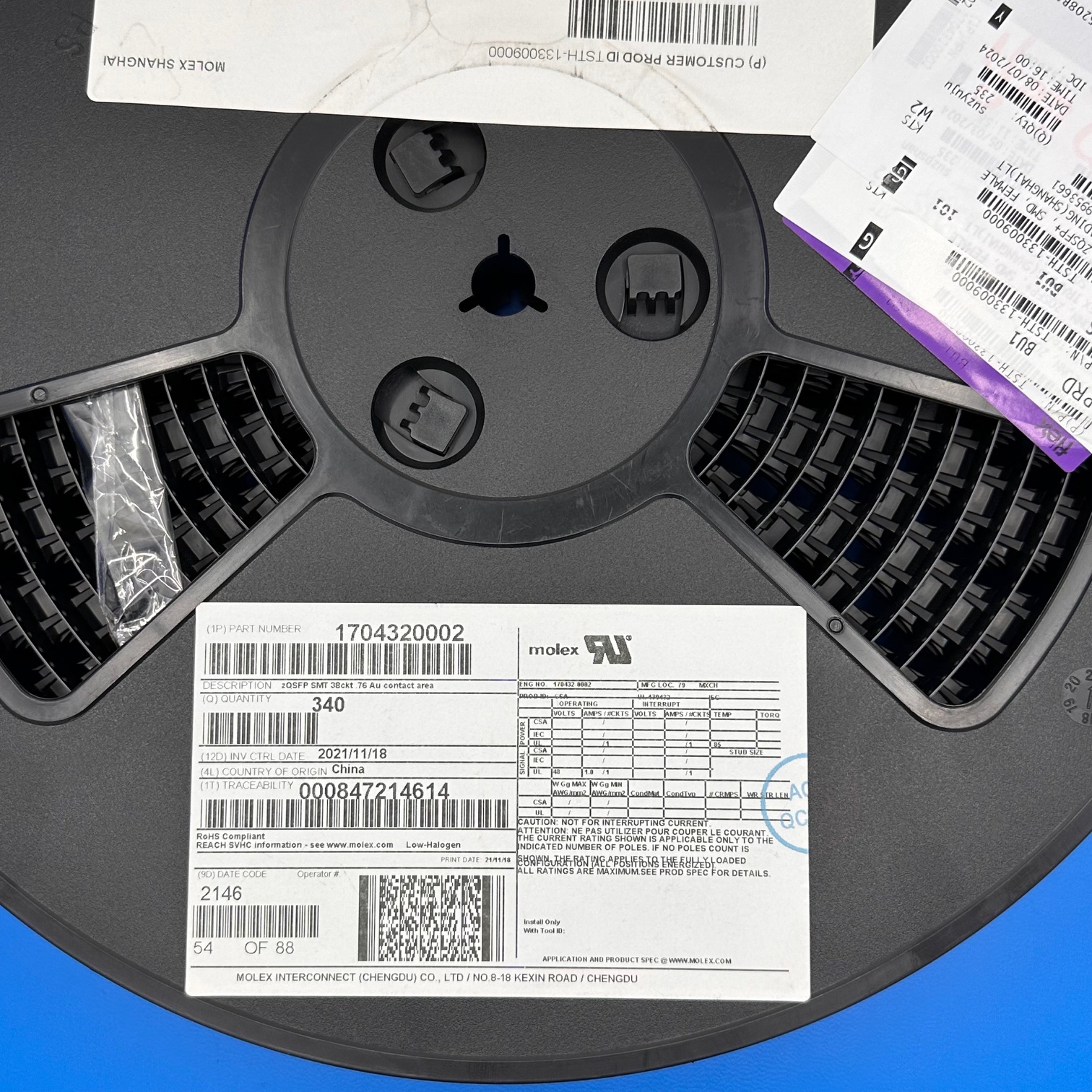

Package / Case: Embossed Tape on Reel
RoHS Status: RoHS Compliant

Key Features

The 1704320002 is a zQSFP+ receptacle connector designed to support high-speed data transmission rates up to 56 Gbps. Its 38-position configuration and 0.80mm pitch facilitate compact and efficient PCB layouts. The connector’s gold-plated contacts, with a thickness of 0.762µm, ensure reliable signal integrity and durability for up to 50 mating cycles. Operating within a voltage range of up to 30V AC (RMS) and a current rating of 0.5A per contact, it is suitable for various high-performance applications. The right-angle, surface-mount design allows for seamless integration into modern electronic assemblies. Additionally, the connector’s flammability rating of 94V-0 and operating temperature range of -40°C to +85°C underscore its robustness in demanding environments.

Applications

High-speed data networking equipment
Telecommunications systems
Data storage devices
Servers and switches
High-performance computing systems

Product Overview

The 1704320002 zQSFP+ receptacle connector from Molex is engineered to meet the demands of high-speed data transmission applications. Its compact design, combined with a 0.80mm pitch and right-angle orientation, enables efficient use of PCB space. The connector’s gold-plated contacts provide excellent conductivity and resistance to wear, ensuring consistent performance over its lifespan. With support for data rates up to 56 Gbps, it is ideal for use in networking and telecommunications equipment, as well as high-performance computing systems. The surface-mount termination simplifies the assembly process, while the robust construction ensures reliability in various operating conditions.
