17EBH062SAM110

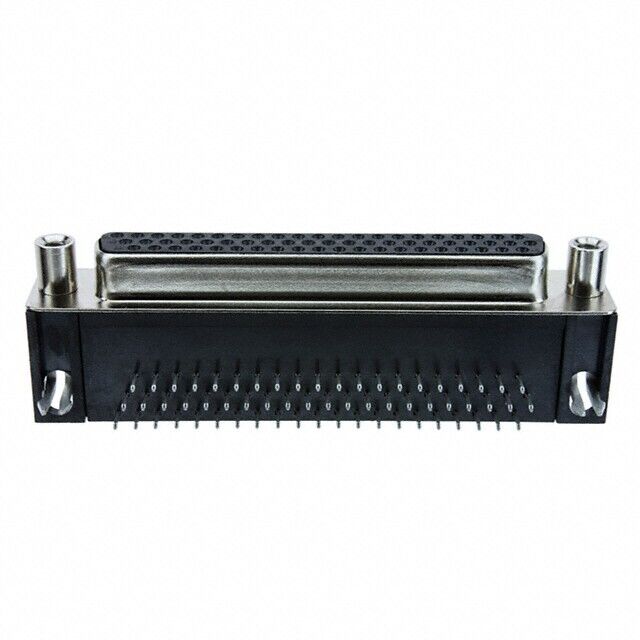

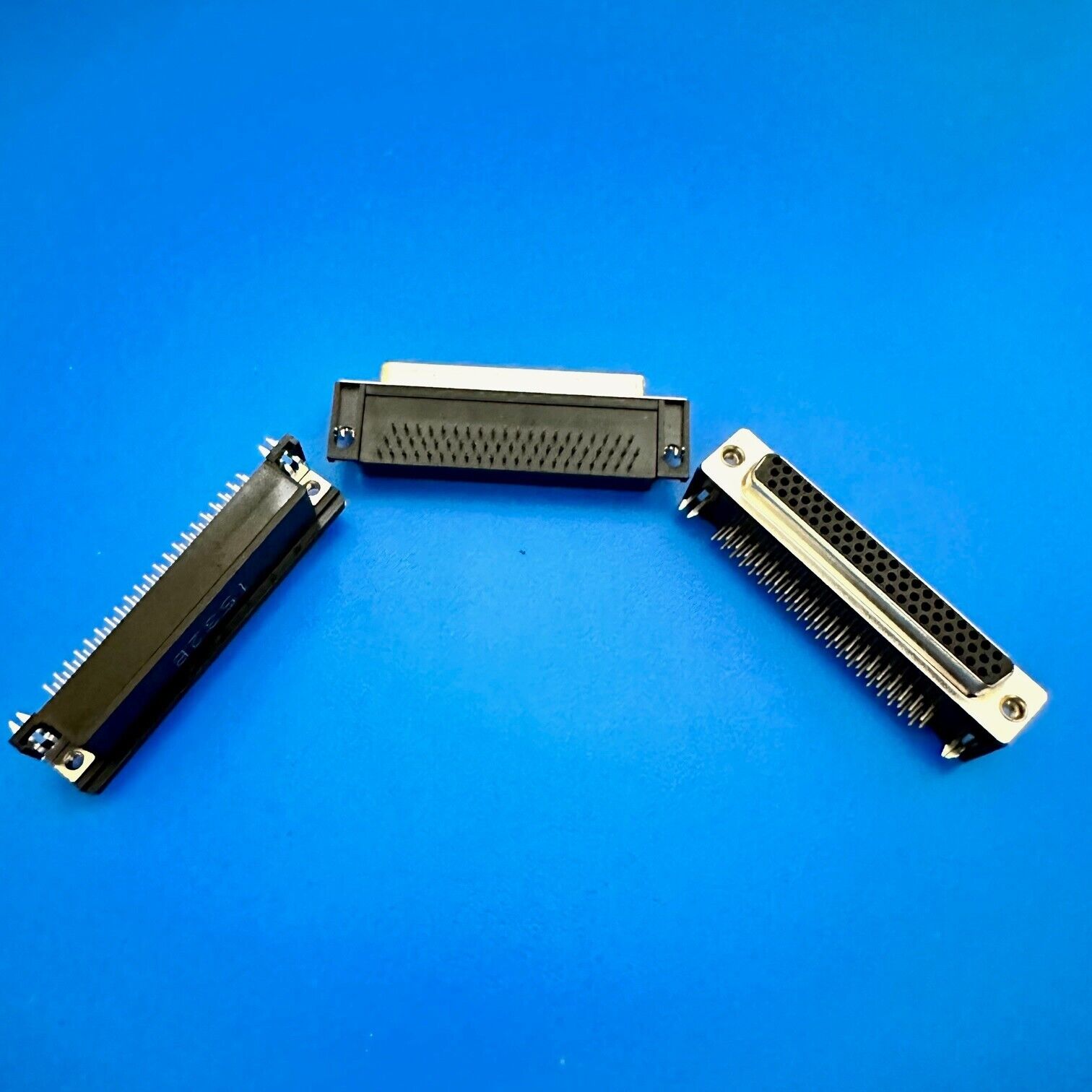

17EBH062SAM110 – Amphenol D-Sub Connectors (62 Positions)

Product Technical Specifications:

• Part Number: 17EBH062SAM110
• ECCN (US): EAR99
• Part Status: Active
• HTS Code: 8536.69.40.40
• Connector Type: D-Subminiature
• Gender: Receptacle (RCP)
• Number of Contacts: 62
• Number of Terminals: 62
• Number of Ports: 1
• Number of Rows: 3
• Termination Method: Solder
• Terminal Pitch: 1.2 mm
• Body Orientation: Right Angle
• Contact Gender: Female (F)
• Maximum Current Rating: 3 A
• Insulation Resistance: 5000 MOhm
• Maximum Contact Resistance: 15 mOhm
• Operating Temperature Range: -55°C to 105°C
• Shell Material: Steel
• Shell Plating: Tin
• Withstand Voltage: 1000V
• Product Length: 69.32 mm
• Product Depth: 22 mm
• Product Height: 12.55 mm
• Contact Plating: Gold Over Nickel
• Contact Material: Copper Alloy
• Mounting: Through Hole

Additional Information:

The 17EBH062SAM110 is a lot of 10 high-quality Amphenol D-Sub Connectors, each with 62 positions. These connectors are designed for reliability and durability, featuring a right-angle body orientation for space-efficient installations. With a maximum current rating of 3 A and excellent insulation resistance, they are suitable for various applications in electronics, telecommunications, and industrial equipment. The gold over nickel contact plating ensures low contact resistance and superior signal transmission.

Ideal for through-hole mounting, these connectors provide a secure and stable connection in electronic circuits. With a wide operating temperature range from -55°C to 105°C, they are capable of withstanding harsh environmental conditions. The steel shell construction with tin plating offers robust protection and longevity.

Whether you’re working on prototypes, electronic devices, or industrial machinery, the 17EBH062SAM110 D-Sub Connectors offer exceptional performance and reliability, making them a preferred choice for engineers and designers.
