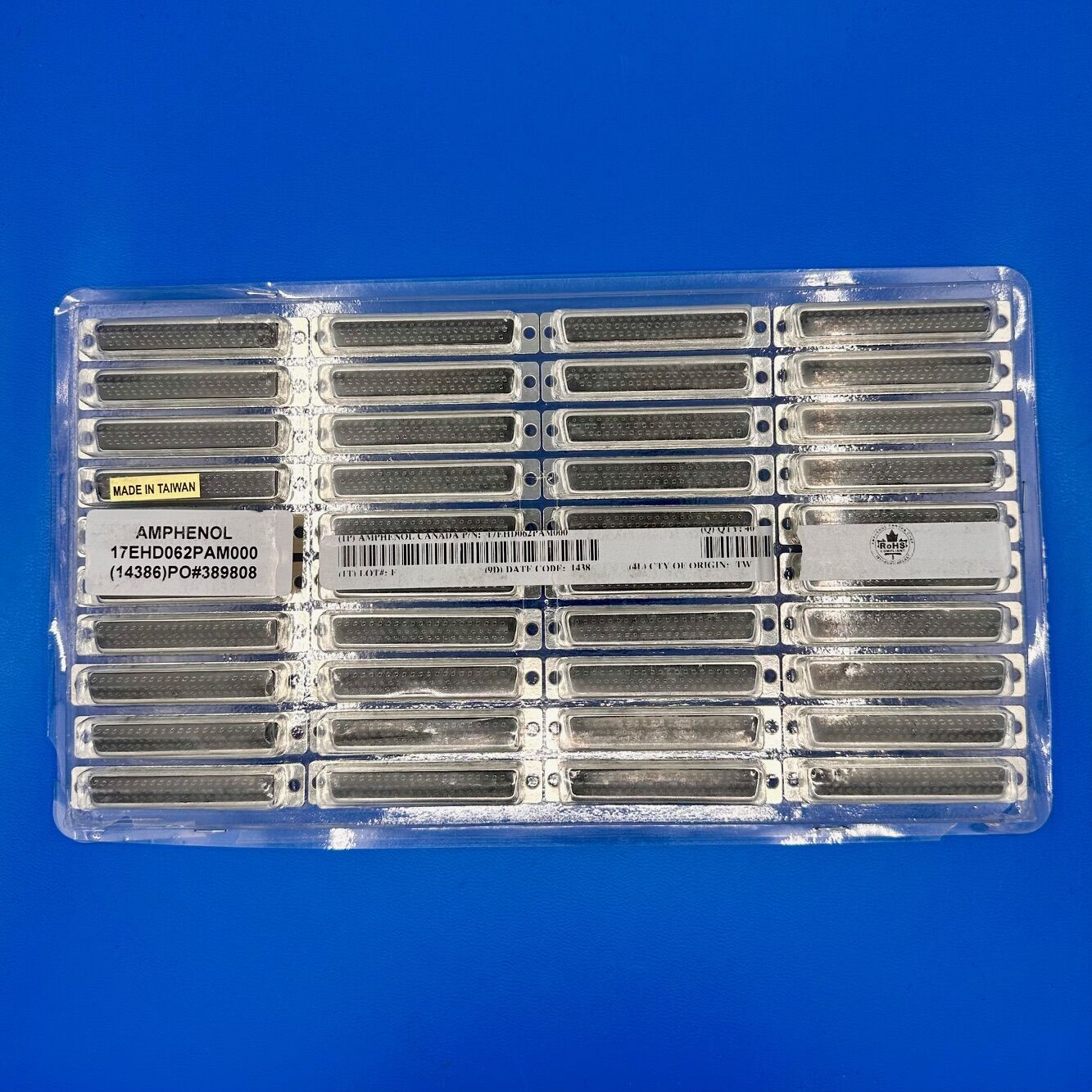

17EHD062PAM000 Specifications:
- Manufacturer: Amphenol ICC (Commercial Products)
- Series: 17EHD
- Connector Type: D-Sub, High Density Plug, Male Pins
- Number of Positions: 62
- Number of Rows: 3
- Mounting Type: Free Hanging (In-Line)
- Termination: Solder Cup
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 30µin (0.76µm)
- Current Rating: 3A
- Voltage Rating: 125V
- Shell Material and Finish: Steel, Nickel Plated
- Color: Black
- Features: Grounding Indents
- Material Flammability Rating: UL94 V-0
- Operating Temperature Range: -55°C to 105°C
Key Features:
- High-density 62-pin layout for space-efficient design
- Solder cup terminations for secure and durable connections
- Gold-plated contacts for superior conductivity and corrosion resistance
- Steel, nickel-plated shell for mechanical durability and EMI shielding
- Grounding indents for enhanced signal integrity
- Compliant with UL94 V-0 flammability standards for safety
- Wide operating temperature range (-55°C to 105°C) for use in demanding environments
Applications:
- Industrial automation and control systems
- Telecommunications and networking equipment
- Aerospace and military communication systems
- Medical devices and instrumentation
- High-reliability computing and data storage systems
- Test and measurement equipment
Product Overview:
The 17EHD062PAM000 is a high-density D-Sub plug connector designed for reliable signal transmission in space-constrained applications. Featuring 62 gold-plated male pins, this connector ensures low contact resistance and long-term durability. With a solder cup termination for secure connections, it provides easy integration into industrial, military, medical, and telecommunications applications. The steel, nickel-plated shell enhances mechanical strength and EMI shielding, while the grounding indents improve signal integrity. Built to withstand harsh environments, it operates within a -55°C to 105°C temperature range and complies with UL94 V-0 safety standards.
