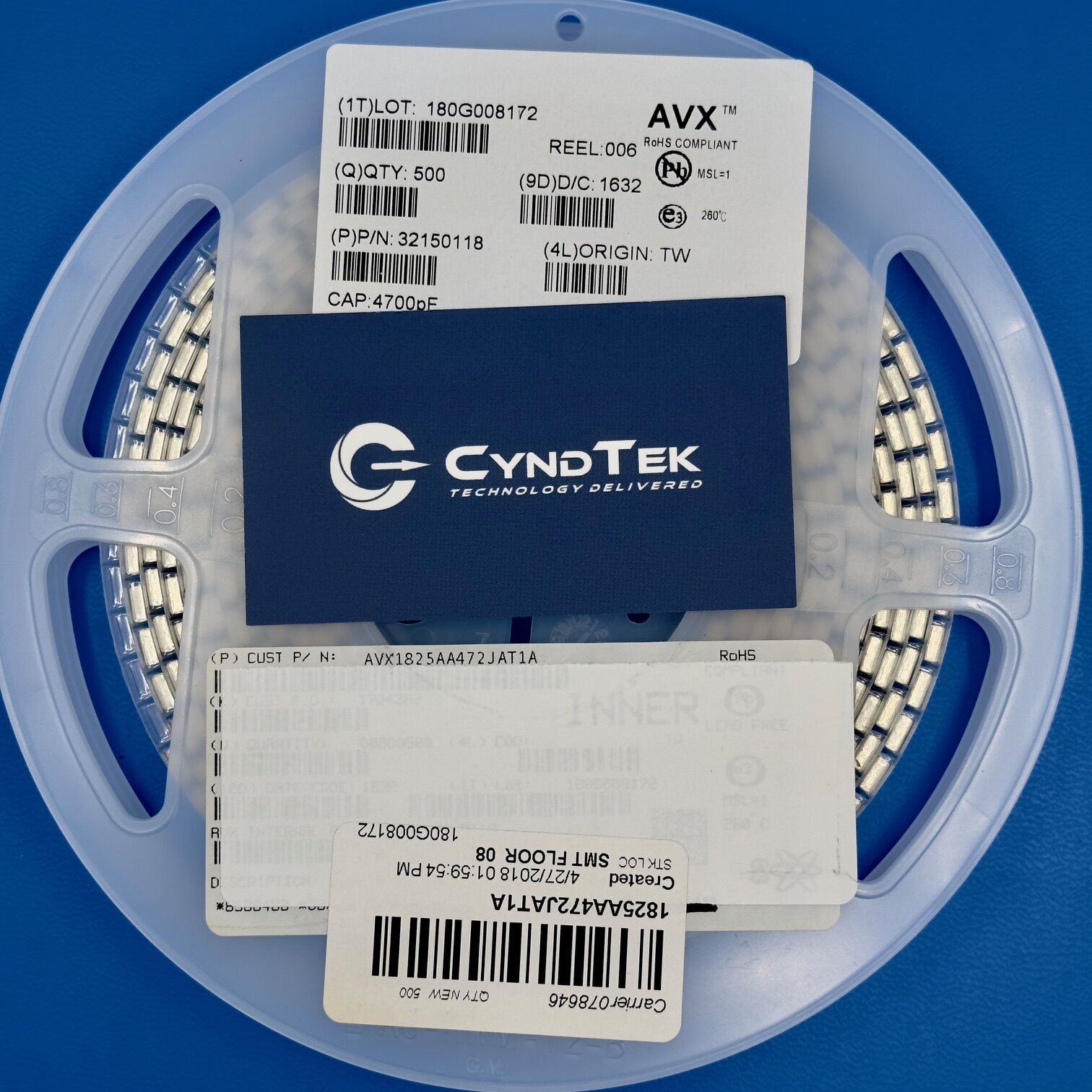

1825AA472JAT1A Specifications
Manufacturer: AVX
Part Number: 1825AA472JAT1A
Product Type: Multilayer Ceramic Capacitor
Capacitance: 4700 pF
Voltage Rating: 1000 V
Capacitance Tolerance: ±5%
Dielectric Type: C0G / NP0
Package Size: 1825 SMD
Mounting Type: Surface Mount
Temperature Stability: C0G / NP0 Stable Dielectric
Operating Temperature Range: -55°C to +125°C
Construction: Multilayer Ceramic
Termination Finish: Nickel Barrier with Tin
Applications Class: High Voltage Precision Circuits
Packaging: Factory
Key Features
The 1825AA472JAT1A is a multilayer ceramic capacitor designed for high voltage and precision electronic applications. It provides a capacitance value of 4700 pF with a 1000 volt rating and a ±5% tolerance. Additionally, the C0G NP0 dielectric offers excellent capacitance stability across temperature and voltage variations. Because this dielectric exhibits minimal capacitance change over temperature, it supports highly stable circuit performance. As a result, engineers frequently use this capacitor in RF circuits, precision filtering networks, and high voltage electronic systems.
Applications
High voltage power supply filtering
RF coupling and bypass circuits
Precision timing networks
Oscillator circuits
Industrial instrumentation electronics
High voltage signal filtering
Test and measurement equipment
Communication system electronics
Product Overview
The 1825AA472JAT1A capacitor from AVX supports electronic designs that require both high voltage capability and stable capacitance. First, the multilayer ceramic construction provides reliable electrical performance and long operational life.
Additionally, the C0G NP0 dielectric maintains very stable capacitance characteristics across a wide operating temperature range. Because many precision circuits require minimal capacitance drift, designers often select NP0 capacitors for timing and filtering networks.
Moreover, the 1825 surface mount package supports larger electrode structures that allow higher voltage ratings compared to smaller ceramic capacitor packages. This design makes the capacitor suitable for high voltage signal and power circuits.
Therefore, the 1825AA472JAT1A is commonly used in RF electronics, precision instrumentation systems, and industrial equipment that require stable high voltage capacitance.
