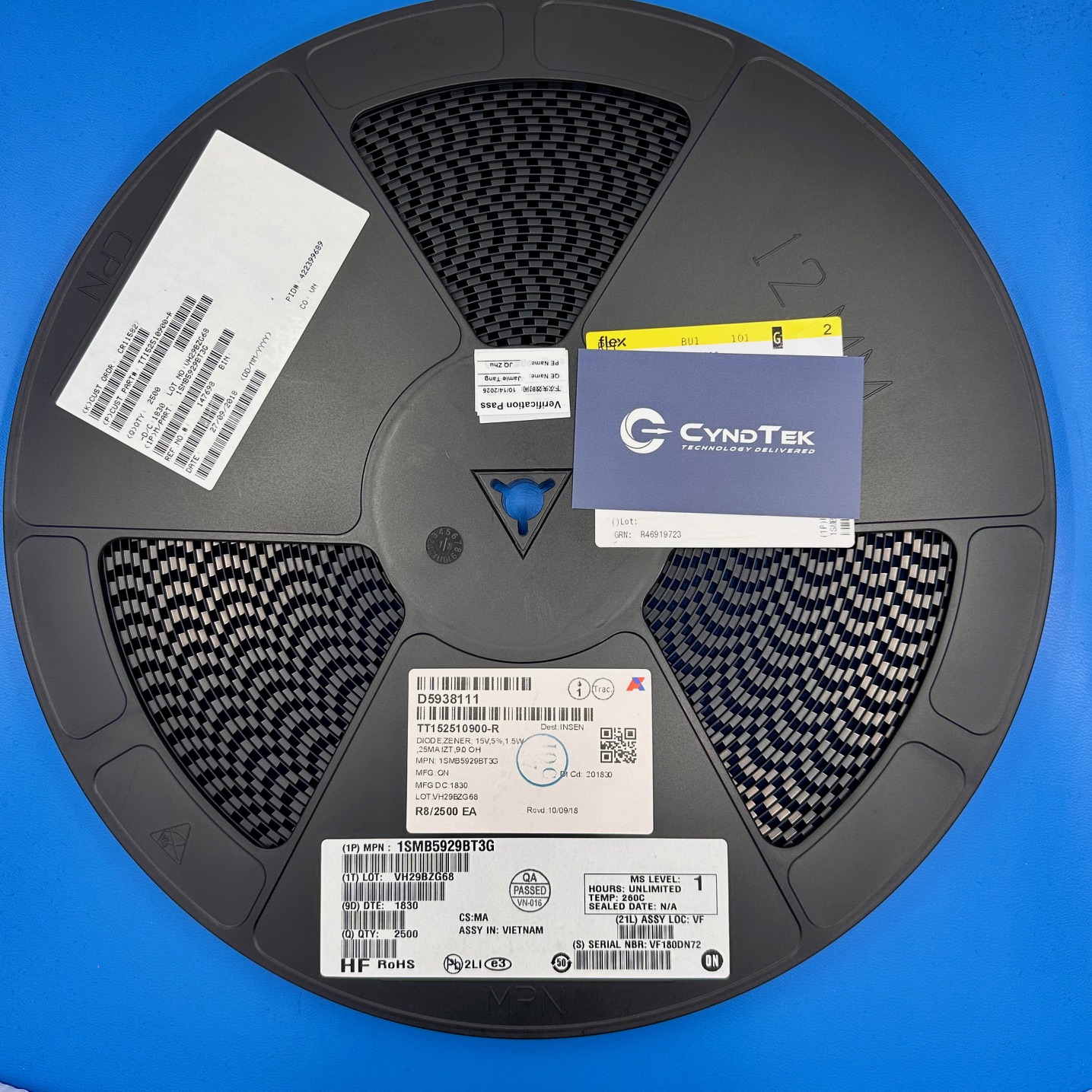

1SMB5929BT3G

1SMB5929BT3G

$0.09

DIODE ZENER 15V 3W SMB
  • Manufacturer: onsemi
  • Part Number: 1SMB5929BT3G
  • Packaging: Tape and Reel
  • Quantity: Each
  • Datecode: 1830

Availability: 3766 in stock

SKU TSX052B Category Brand:

1SMB5929BT3G Specifications

Manufacturer: onsemi
Part Number: 1SMB5929BT3G
Product Type: Zener Diode Voltage Regulator
Zener Voltage: 15 V
Power Dissipation: 3 W
Voltage Tolerance: ±5%
Impedance: 9 ohms
Reverse Leakage Current: 1 µA at 11.4 V
Forward Voltage: 1.5 V at 200 mA
Package / Case: SMB (DO-214AA)
Mounting Type: Surface Mount
Operating Temperature Range: -65°C to +150°C
RoHS Status: RoHS Compliant

Key Features

The 1SMB5929BT3G is a 15 V Zener diode voltage regulator designed for general-purpose voltage regulation applications. It offers a power dissipation of 3 W and maintains a voltage tolerance of ±5%, ensuring stable and reliable performance. The diode exhibits an impedance of 9 Ω and a low reverse leakage current of 1 µA at 11.4 V, contributing to its efficiency. With a forward voltage of 1.5 V at 200 mA, it supports effective operation in various circuit configurations. Encased in the SMB (DO-214AA) package, the 1SMB5929BT3G is suitable for surface-mount applications, facilitating compact and efficient PCB layouts. Its operating temperature range from -65°C to +150°C ensures consistent performance across diverse environmental conditions. Compliance with RoHS standards underscores onsemi’s commitment to environmental responsibility.

Applications

Voltage regulation in power supplies
Overvoltage protection
Reference voltage generation
Industrial automation systems
Power management in consumer electronics

Product Overview

The 1SMB5929BT3G from onsemi is engineered to provide precise voltage regulation in a variety of electronic applications. Its 15 V Zener voltage and 3 W power dissipation capacity make it suitable for stabilizing voltage levels and protecting circuits from overvoltage conditions. The diode’s ±5% voltage tolerance ensures accuracy, while its low reverse leakage current enhances efficiency. The SMB (DO-214AA) surface-mount package allows for easy integration into modern, compact circuit designs. Operating reliably over a wide temperature range, the 1SMB5929BT3G is a dependable choice for designers seeking effective voltage regulation solutions in industrial, consumer, and automotive electronics.
