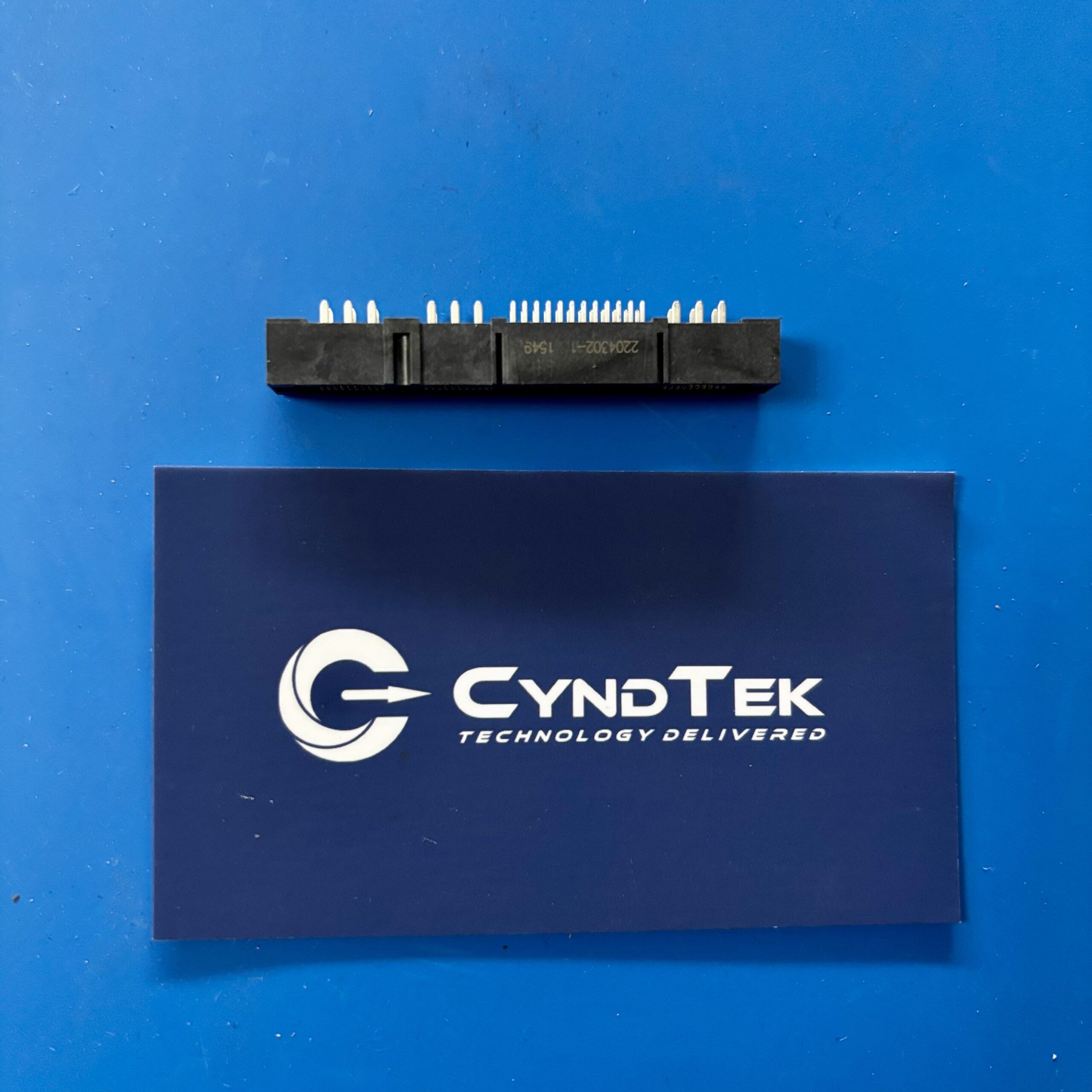

2204302-1

2204302-1 Specifications

Manufacturer: TE Connectivity
Part Number: 2204302-1
Product Type: MULTI-BEAM HD Power Connector
Connector System: Wire-to-Board
Mounting Type: Through Hole
Termination Style: Press-Fit
Contact Material: Copper Alloy
Contact Plating: Gold
Housing Material: High-Temperature Thermoplastic
Flammability Rating: UL94 V-0
Operating Temperature Range: -40°C to +125°C
Current Rating: Up to 135A per power contact
Voltage Rating: Not specified
Contact Layout: Not specified
Durability: Not specified
Color – Housing: Black
Compliance: RoHS Compliant

Key Features

The 2204302-1 is a high-power MULTI-BEAM HD connector designed for demanding wire-to-board applications. It supports up to 135A per power contact, making it ideal for systems that require substantial power distribution. The press-fit termination method eliminates the need for soldering, offering a reliable and efficient PCB connection. Its gold-plated copper alloy contacts maintain excellent conductivity and withstand harsh environments. The high-temperature thermoplastic housing is rated UL94 V-0, ensuring flame resistance and mechanical durability for industrial-grade usage.

Applications

High-density data center power distribution assemblies
Telecom infrastructure requiring high-current connectivity
Power distribution units (PDUs) in enterprise server systems
Industrial control cabinets needing modular power integration
Advanced computing systems and rack-mounted hardware platforms

Product Overview

The TE Connectivity 2204302-1 delivers robust performance for high-power applications in compact environments. Its MULTI-BEAM HD architecture ensures optimal current flow, while the press-fit design streamlines manufacturing by removing soldering steps. The gold-plated contacts reduce resistance and improve long-term electrical reliability, even under heavy use. Designed to perform from -40°C to +125°C, this connector meets the thermal demands of enterprise systems. With strong housing materials and a proven contact design, it provides dependable operation in environments where power density, safety, and footprint matter. This makes it a top-tier solution for industries that rely on secure and scalable power delivery.
