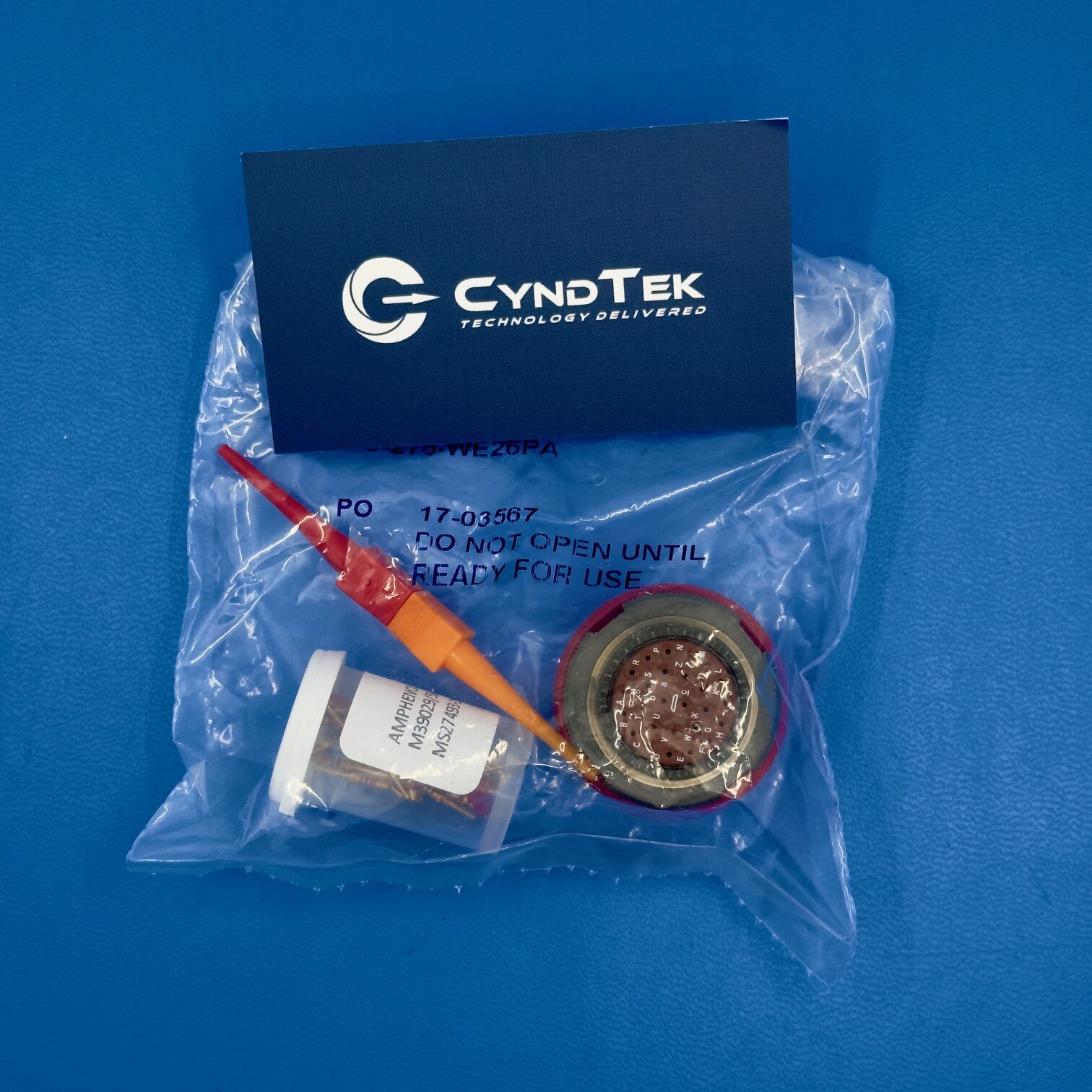

30-276-WE26PA Specifications
Manufacturer: Amphenol
Part Number: 30-276-WE26PA
NSN: 5935-01-559-6241
Connector Type: Circular Plug
Series: MIL-DTL-38999 Series III
Contact Gender: Pin
Number of Positions: 26
Configuration: Straight
Termination Type: Crimp
Contact Plating: Gold over Nickel
Shell Finish: Conductive Protective Plating
Coupling Style: Threaded
Operating Temperature Range: -65°C to +200°C
Compliance: MIL-DTL-38999 Qualified
Packaging: Factory
Key Features
The 30-276-WE26PA is a MIL-DTL-38999 Series III circular plug designed for rugged aerospace and defense interconnect systems. It features 26 gold-plated pin contacts to ensure stable signal transmission. Additionally, the threaded coupling mechanism provides secure mating under vibration and mechanical stress. The conductive shell finish enhances EMI shielding and corrosion resistance. Because it meets MIL-spec qualification standards, it integrates directly into regulated military and aerospace platforms. As a result, it supports mission-critical electrical assemblies requiring environmental sealing and durability.
Applications
Military aircraft avionics systems
Ground vehicle communication modules
Naval radar and control assemblies
Aerospace instrumentation platforms
Defense electronic subsystems
Secure tactical communication networks
Environmental sealed connector assemblies
Signal and power distribution harnesses
Product Overview
The 30-276-WE26PA from Amphenol delivers dependable circular connectivity in demanding environments. First, its 26-position insert configuration supports compact signal routing. Furthermore, the Series III threaded coupling ensures reliable engagement in vibration-prone installations. Because it incorporates gold-plated pin contacts, it improves conductivity and long-term performance.
Moreover, the conductive shell finish provides enhanced durability in corrosive field conditions. In addition, crimp termination allows consistent harness assembly in production environments. Therefore, it supports both new system builds and maintenance replacements. Overall, this circular plug offers rugged construction, environmental protection, and dependable MIL-spec performance for aerospace and defense applications.
Contact Us
Cyndtek supplies new, factory-packaged Amphenol MIL-DTL-38999 connectors for aerospace, defense, and government procurement programs. If you require immediate availability or project-level pricing, contact our team directly. We support OEMs, contractors, and procurement professionals nationwide. For ordering details and current inventory, visit https://cyndtek.com/shop/.
For additional available stock, browse our full inventory.
