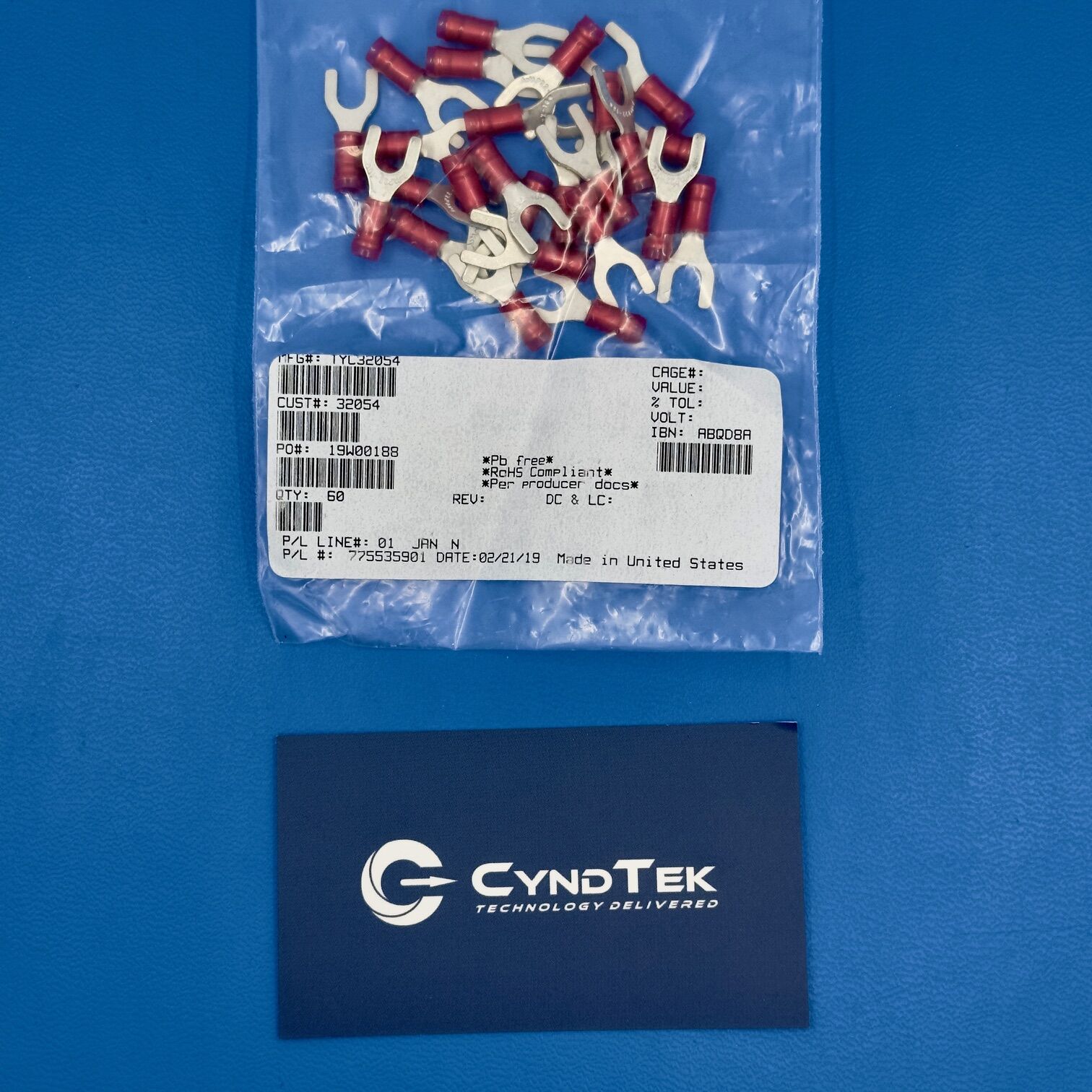

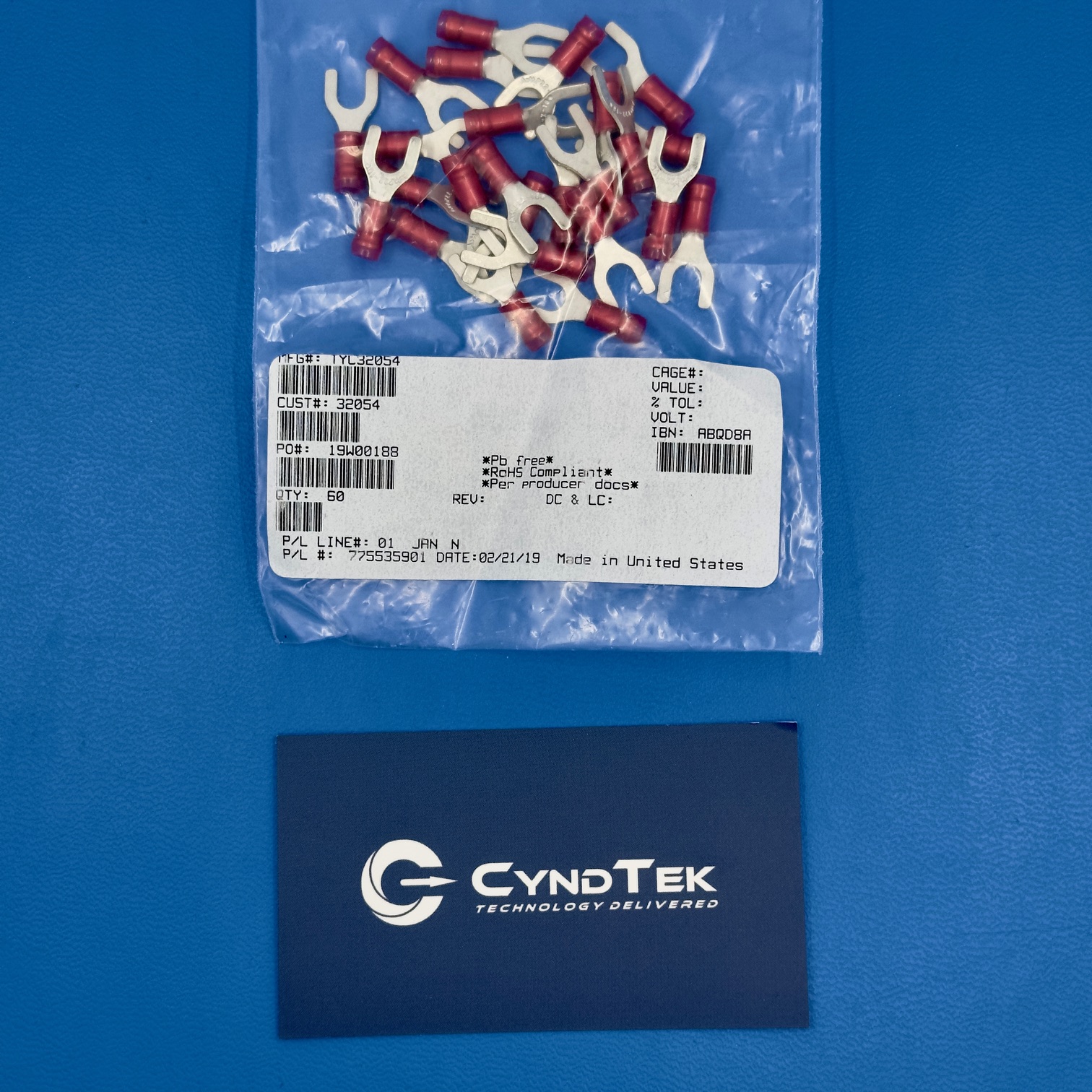

32054 Specifications
Manufacturer: TE Connectivity
Part Number: 32054
Product Type: PIDG Spade Tongue Terminal
Terminal Style: Spade Tongue
Insulation Type: PIDG Insulated
Wire Size Range: 16–14 AWG
Stud Size: No. 8
Termination Style: Crimp
Material: Copper
Plating: Tin Plated
Operating Temperature Range: -40°C to +105°C
Application Type: Wire-to-Stud Termination
RoHS Status: Compliant
Packaging: Factory
Key Features
The 32054 is a PIDG insulated spade tongue terminal engineered for secure wire-to-stud electrical connections. It supports 16 to 14 AWG wire sizes for dependable mechanical and electrical performance. Additionally, the PIDG insulation provides strain relief and protects the crimped connection. The tin-plated copper construction enhances conductivity while improving corrosion resistance. Because it uses a crimp termination method, it ensures consistent wire attachment in production assemblies. As a result, it is suitable for industrial, automotive, and commercial wiring systems.
Applications
Industrial control panels
Automotive electrical systems
Power distribution assemblies
Appliance wiring harnesses
Telecommunications equipment
Maintenance and repair operations
Grounding connections
Panel-mounted terminal blocks
Product Overview
The 32054 from TE Connectivity delivers reliable spade terminal performance in demanding electrical environments. First, its No. 8 stud compatibility allows secure fastening to common terminal posts. Furthermore, the PIDG insulated design enhances vibration resistance and long-term reliability. Because it uses a crimp-style termination, it supports efficient installation in both field service and manufacturing settings.
Moreover, the tin-plated copper body improves conductivity and corrosion resistance. In addition, the standardized dimensions ensure broad compatibility across wiring systems. Therefore, it supports both new production builds and maintenance replacements. Overall, this PIDG spade tongue terminal provides strong mechanical retention, consistent electrical performance, and professional-grade reliability.
