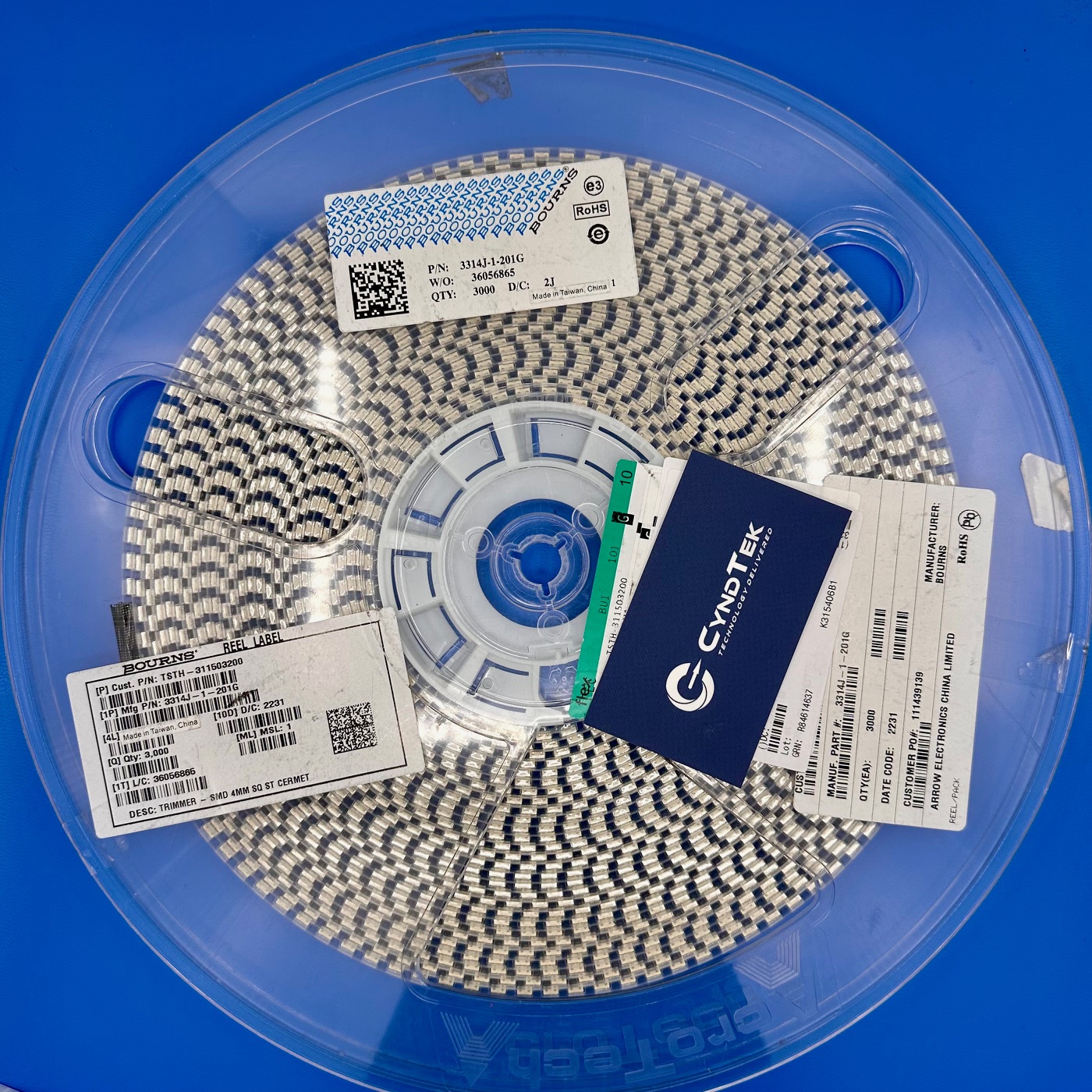

3314J-1-201G Specifications
Manufacturer: Bourns
Part Number: 3314J-1-201G
Product Type: Surface Mount Trimming Potentiometer
Resistance: 200 Ω
Tolerance: ±20%
Power Rating: 0.25 W at 70°C
Adjustment Type: Top Adjust
Temperature Coefficient: ±100 ppm/°C
Rotational Life: 100 cycles
Package / Case: 4 mm Square
Mounting Type: Surface Mount
Operating Temperature Range: -55°C to +125°C
RoHS Status: RoHS Compliant
Key Features
The 3314J-1-201G is a 4 mm square, single-turn cermet trimming potentiometer designed for surface mount applications. It features a top-adjustment mechanism and offers a resistance value of 200 Ω with a tolerance of ±20%. With a power rating of 0.25 W at 70°C, this trimmer is suitable for applications requiring precise resistance adjustments. The device exhibits a temperature coefficient of ±100 ppm/°C, ensuring stable performance across a wide temperature range. Additionally, it is sealed to withstand industrial environments and is compatible with surface mount manufacturing processes, including popular vacuum pick-and-place equipment. The trimmer’s rotational life is rated at 100 cycles, providing reliable long-term operation.
Applications
Calibration of test and measurement equipment
Adjustment of circuit parameters in industrial controls
Fine-tuning of audio equipment
Setting reference voltages in power supplies
Temperature compensation in sensor circuits
Product Overview
The 3314J-1-201G from Bourns is engineered to provide precise and reliable resistance adjustments in a compact 4 mm square package. Its cermet element ensures durability and stability, while the top-adjustment design facilitates easy access during calibration. The trimmer’s compatibility with standard surface mount processes and equipment simplifies integration into various electronic assemblies. Operating effectively over a temperature range of -55°C to +125°C, it is suitable for demanding applications where environmental stability is crucial. Compliance with RoHS standards underscores Bourns’ commitment to environmental responsibility. Overall, the 3314J-1-201G is a dependable choice for engineers seeking a high-quality trimming potentiometer for critical applications.
