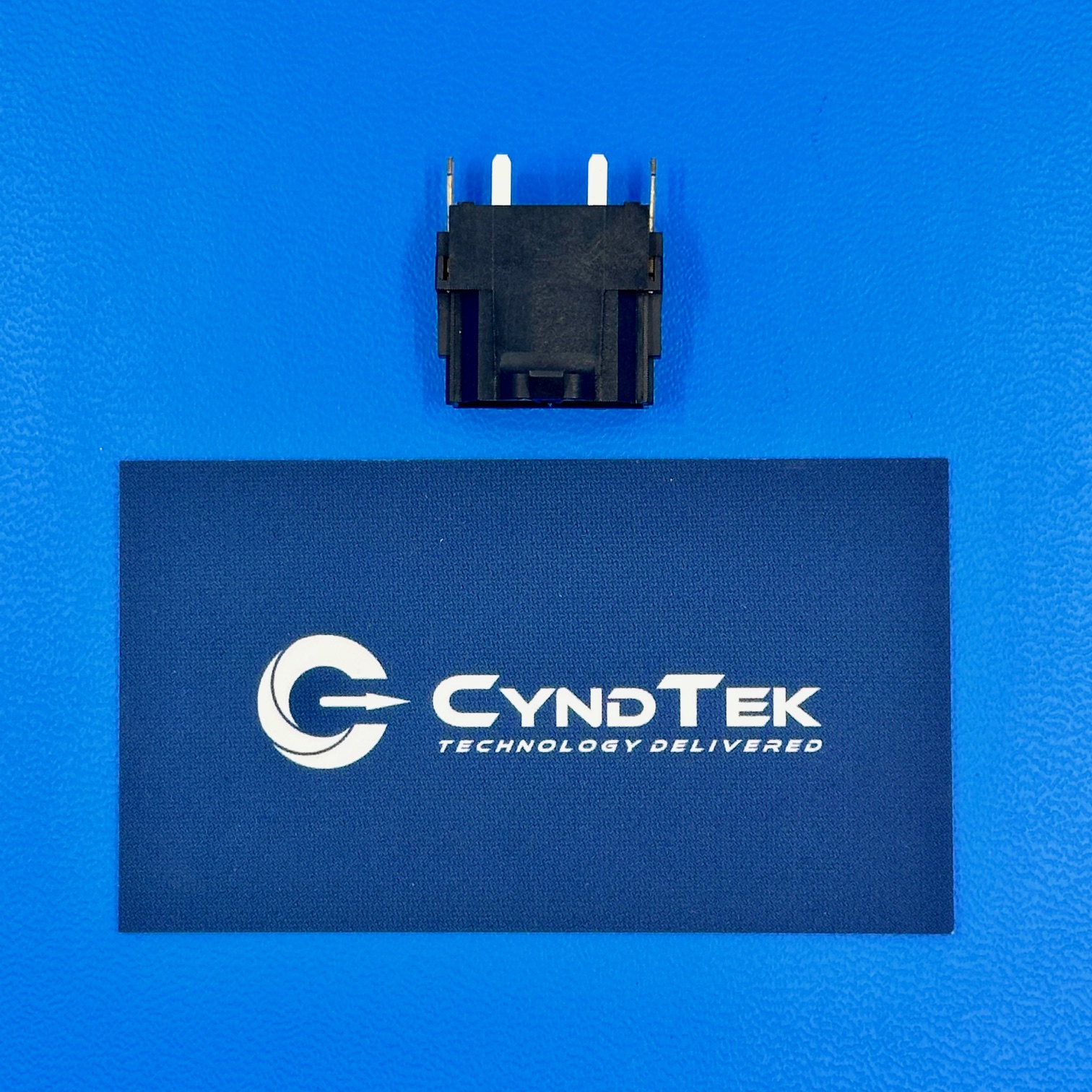

42819-2233

42819-2233

$3.00

CONN HEADER VERT 2POS 10MM
  • Manufacturer: Molex
  • Part Number: 42819-2233
  • Packaging: Individual
  • Quantity: Each
  • Datecode:2232

Availability: 1 in stock

SKU TSX054F Category Brand:

42819-2233 Specifications

Manufacturer: Molex
Part Number: 42819-2233
Product Type: Mini-Fit Sr. Vertical Power Header
Connector Type: Male, 2 Position
Pitch: 10.00mm
Mounting Type: Through Hole
Termination: Solder
Contact Finish: Gold Plated
Housing Material: High-Temperature Thermoplastic
Current Rating: 50.0A
Voltage Rating: 600V
Operating Temperature Range: -40°C to +105°C
RoHS Status: RoHS Compliant

Key Features

The 42819-2233 is a 2-position Mini-Fit Sr. power header engineered for high-current, high-reliability power delivery. It features a rugged, fully shrouded design that ensures proper mating alignment and secure retention through a locking ramp interface. The gold-plated copper alloy contacts offer low contact resistance and long-term conductivity, even in demanding environments. Additionally, the housing is molded from high-temperature thermoplastic, providing mechanical durability and thermal stability. Its 10.00mm pitch and through-hole termination support robust connections in power-heavy systems. Because it handles up to 50A at 600V, this connector is well-suited for industrial and power conversion applications.

Applications

Power distribution systems in industrial machinery
High-current outputs in telecommunications hardware
Battery interfaces in large-scale medical equipment
Automotive power control units
Rack-mounted power supplies and converters

Product Overview

The 42819-2233 from Molex delivers high-current, board-level connectivity in a compact and durable format. Designed with a 10.00mm pitch and rated for up to 50 amps, it supports power-intensive applications across various industries. Its vertical through-hole layout allows for strong mechanical retention and easy integration into dense PCBs. Gold-plated contacts ensure signal stability, while the rugged housing resists heat and physical stress. Furthermore, the locking ramp mechanism secures connections and prevents accidental disengagement. Because of its fully shrouded design, the connector offers polarization to avoid mating errors, improving reliability in high-stakes systems.
