43650-0528 Specifications:
- Manufacturer: Molex
- Part Number: 43650-0528
- Series: Micro-Fit 3.0
- Connector Type: Header, Male Pins
- Number of Positions: 5
- Number of Rows: 1
- Pitch – Mating: 3.00mm
- Mounting Type: Through Hole
- Termination: Solder
- Contact Finish – Mating: Gold
- Contact Finish Thickness – Mating: 15.0µin (0.38µm)
- Contact Material: Brass
- Insulation Material: High Temperature Thermoplastic
- Insulation Color: Black
- Shrouding: Shrouded – 4 Wall
- Features: Board Guide, Glow-Wire Capable
- Operating Temperature Range: -40°C to +125°C
- Current Rating (Amps): Up to 8.5A
- Voltage Rating: Up to 600V
- Flammability Rating: UL94 V-0
- Mated Stacking Heights: 17.27mm
- Durability (Mating Cycles): Up to 30 cycles

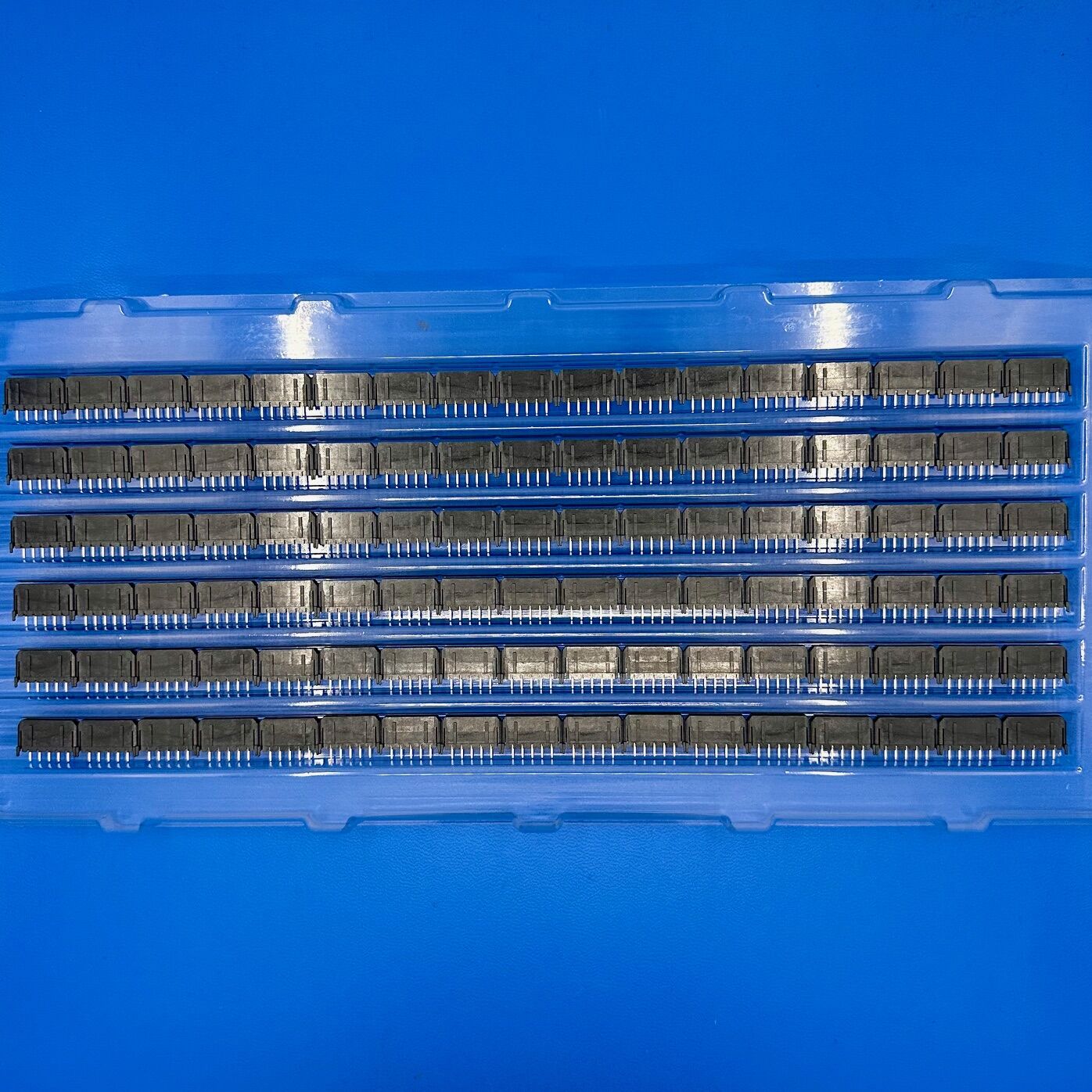

- Packaging: Tray
Key Features:
- High Current and Voltage Capacity: Supports up to 8.5A per contact and 600V, suitable for power-intensive applications.
- Compact Design: 3.00mm pitch allows for space-saving in high-density configurations.
- Durable Construction: High-temperature thermoplastic housing ensures reliability under varying environmental conditions.
- Enhanced Safety: Glow-wire capable, meeting IEC 60335-1 standards for household appliances.
- Secure Mating: Fully shrouded design with locking mechanism prevents misalignment and ensures stable connections.
Applications:
- Consumer Electronics: Televisions, gaming consoles, and home entertainment systems.
- Computing: Desktops, servers, and workstations requiring reliable power connections.
- Industrial Equipment: Automation systems, motor controls, and robotics.
- Automotive: In-vehicle infotainment systems, battery management, and lighting controls.
- Telecommunications: Networking equipment, routers, and switches.
Product Overview:
The Molex 43650-0528 is a 5-position, single-row, vertical header from the Micro-Fit 3.0 series, designed for wire-to-board applications. With a 3.00mm pitch, it offers a compact solution without compromising on power delivery, supporting up to 8.5A and 600V per contact. The high-temperature thermoplastic housing ensures durability, while the gold-plated brass contacts provide reliable conductivity and corrosion resistance. Its fully shrouded design with locking features ensures secure and accurate mating, making it suitable for various applications, from consumer electronics to industrial machinery.
