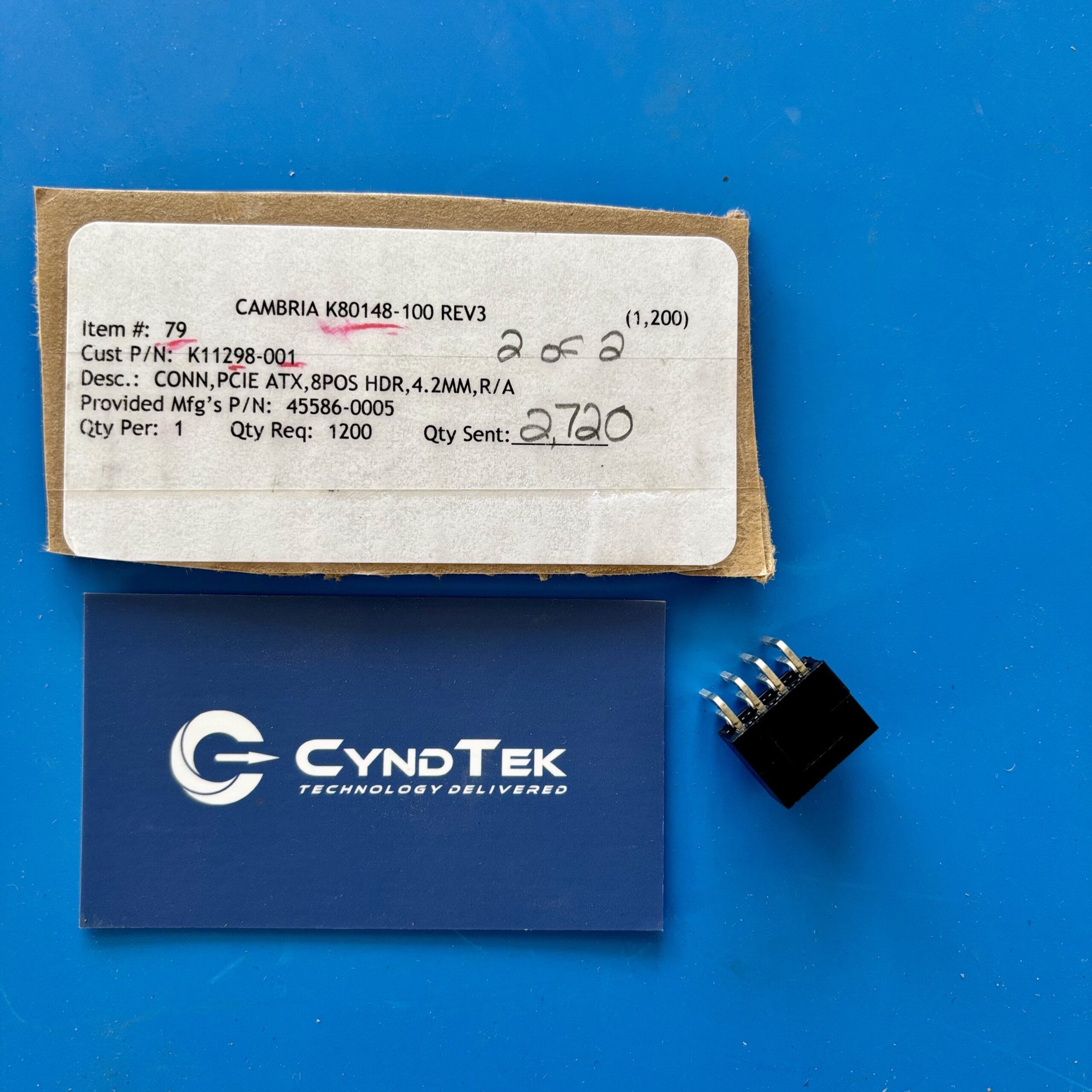

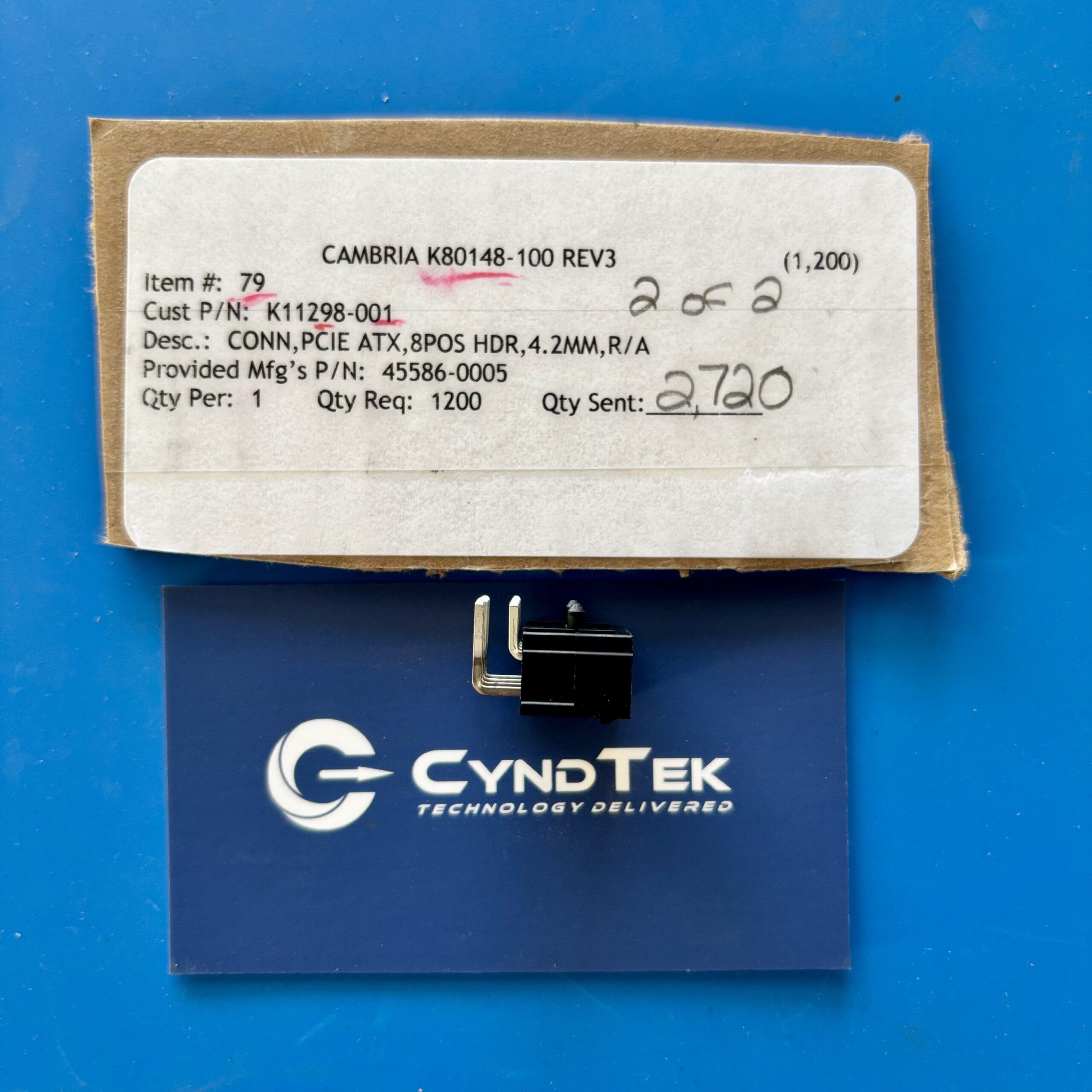

45586-0005

45586-0005 Specifications

Manufacturer: Molex
Part Number: 45586-0005
Product Type: Mini-Fit Jr. Header
Number of Positions: 8
Number of Rows: 2
Pitch – Mating Interface: 4.20 mm
Mounting Type: Through Hole, Right Angle
Termination: Solder
Contact Material: Brass
Plating Contact – Mating: Gold (0.76 µm)
Contact Plating – Termination: Tin (2.54 µm)
Insulation Material: Polyamide (PA), Nylon
Color – Resin: Black
Current Rating (Amps): 9.0A
Voltage Rating: 600V AC (RMS)/DC
Operating Temperature Range: -40°C to +105°C
Durability (mating cycles max): 30
Flammability Rating: UL94 V-0
PCB Thickness – Recommended: 1.78 mm max
PCB Retention: Yes
Packaging Type: Tray
Compliance: RoHS Compliant

Key Features

The Molex 45586-0005 Mini-Fit Jr. Header is engineered for power and signal applications requiring a compact, high-density connector system. Its 4.20 mm pitch and dual-row configuration accommodate eight circuits, making it suitable for space-constrained designs. The right-angle, through-hole mounting facilitates efficient PCB layouts, while the fully shrouded housing ensures proper mating and protection against misalignment. Gold-plated brass contacts enhance conductivity and resistance to corrosion, supporting a current rating of up to 9.0A per contact. The connector’s UL94 V-0 flammability-rated nylon housing provides durability and compliance with stringent safety standards.

Applications

Power supplies in industrial automation equipment
Data and telecommunications hardware requiring reliable power connections
Consumer electronics such as desktop computers and servers
Automotive infotainment systems and electronic control units
Medical devices needing compact, high-current connectors

Product Overview

Molex’s 45586-0005 Mini-Fit Jr. Header offers a robust solution for applications demanding high-current capacity within a compact form factor. Its dual-row, right-angle design with a 4.20 mm pitch provides design flexibility for wire-to-board configurations. The connector’s fully shrouded housing ensures secure mating and protects against misalignment, enhancing reliability in critical applications. Gold-plated brass contacts deliver excellent electrical performance and durability, supporting up to 30 mating cycles. With a current rating of 9.0A per contact and a voltage rating of 600V AC/DC, this connector is suitable for a wide range of power and signal applications. The UL94 V-0 rated nylon housing meets stringent flammability requirements, ensuring safety and compliance in various industries.
