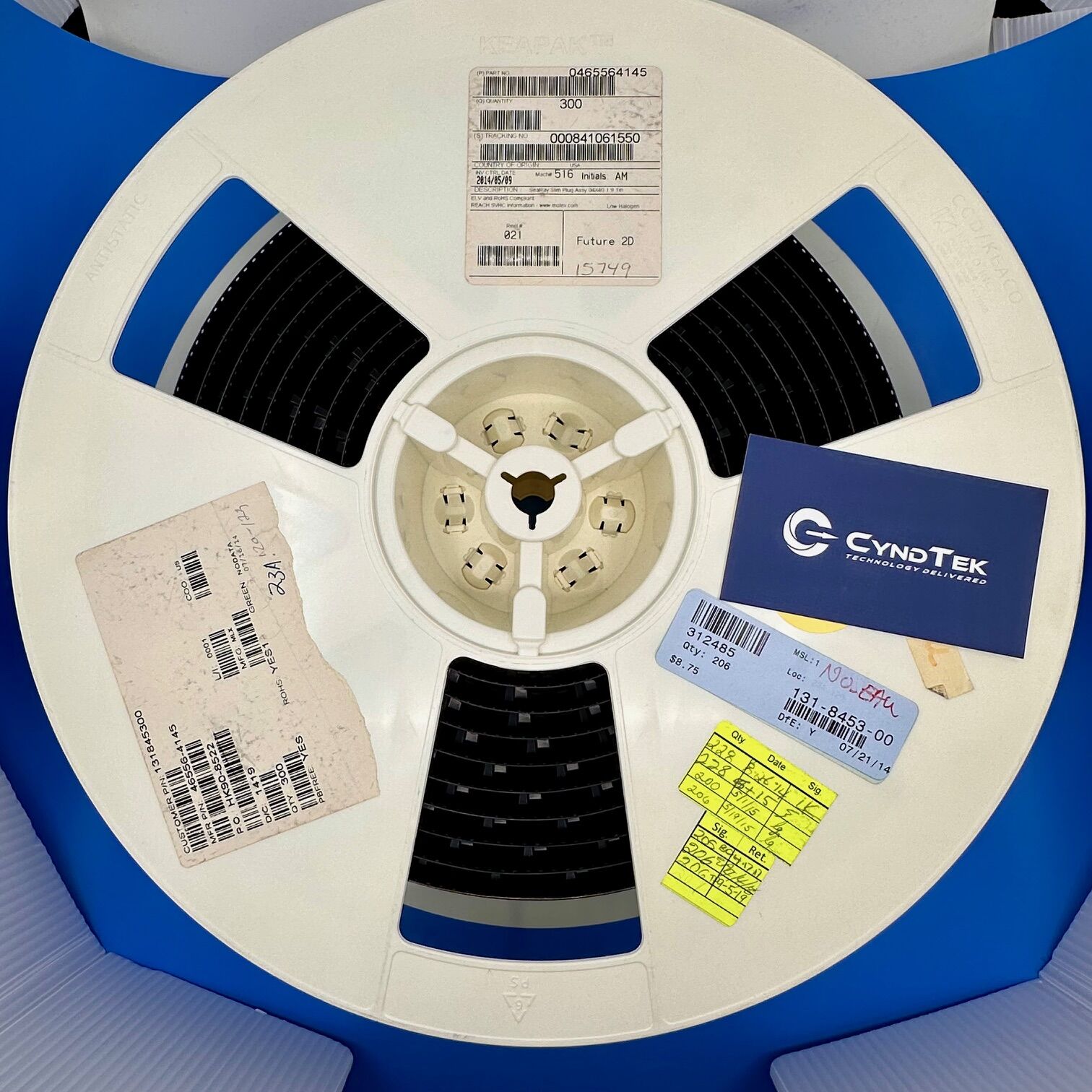

46556-4145

46556-4145 Specifications

Manufacturer: Molex
Part Number: 46556-4145
Product Type: 1.27mm SEARAY™ Slim Board-to-Board Connector Plug
Number of Circuits: 160
Number of Rows: 4
Pitch – Mating Interface: 1.27mm
Pitch – Termination Interface: 1.27mm
Unmated Height: 2.00mm
Current Rating: 2.7A per contact
Voltage Rating: 240V AC
Durability: 100 mating cycles
Termination Interface Style: Surface Mount
Operating Temperature Range: -55°C to +125°C
Flammability Rating: UL 94V-0
RoHS Status: RoHS Compliant

Key Features

The 46556-4145 is a high-density, low-profile board-to-board connector plug from Molex’s SEARAY™ Slim series. It features a 1.27mm pitch with a 4-row configuration, accommodating 160 circuits. The connector’s compact design achieves an unmated height of just 2.00mm, making it suitable for applications where space is limited. Rated for currents up to 2.7A per contact and voltages up to 240V AC, it ensures reliable performance in demanding environments. The connector supports up to 100 mating cycles, providing durability for repeated connections. Its surface mount termination facilitates automated assembly processes, enhancing manufacturing efficiency.

Applications

High-speed data communications equipment
Telecommunications infrastructure
Networking hardware
Industrial control systems
Medical devices

Product Overview

The 46556-4145 connector plug is designed to meet the needs of modern electronic systems requiring high-density, low-profile interconnections. Its 1.27mm pitch and 4-row arrangement allow for a high number of circuits within a compact form factor. The connector’s robust electrical ratings and durability make it suitable for various applications, including data communications, telecommunications, and industrial control systems. Its surface mount design supports efficient manufacturing processes, while the UL 94V-0 flammability rating ensures compliance with safety standards.
