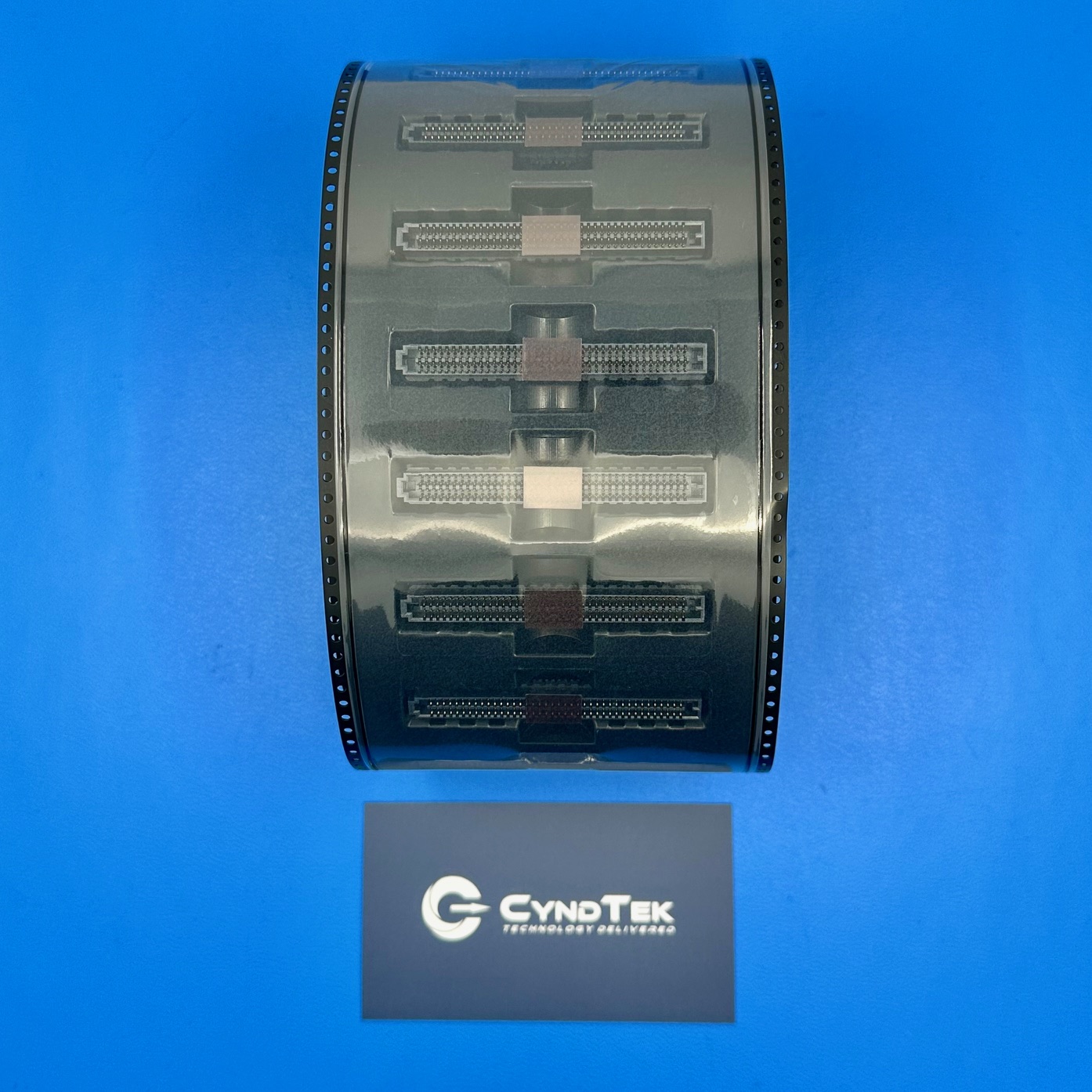

46557-4245 Specifications
Manufacturer: Molex
Part Number: 46557-4245
Product Type: High-Density Array Connector
Series: SEARAY Slim
Connector Type: Receptacle
Number of Positions: 160
Number of Rows: 4
Pitch: 1.27 mm
Mounting Type: Surface Mount
Contact Finish: Gold
Features: Board Guide, Pick and Place
Package / Case: Not specified
Operating Temperature Range: Not specified
RoHS Status: RoHS Compliant
Key Features
The 465574245 is a high-density array connector from Molex’s SEARAY Slim series, designed to provide robust and reliable board-to-board connections. Featuring a 1.27 mm pitch and 160 positions arranged in four rows, this surface-mount receptacle offers a compact solution for high-speed data transmission. The gold-plated contacts ensure excellent conductivity and durability, while the inclusion of board guides and pick-and-place features facilitates easy and accurate assembly. This connector is ideal for applications requiring high signal integrity and space-saving designs.
Applications
High-speed data communication systems
Networking equipment
Telecommunications infrastructure
Industrial automation systems
Medical devices
Aerospace and defense electronics
Product Overview
Molex’s 46557-4245 SEARAY Slim high-density array connector provides a reliable solution for complex electronic systems requiring dense interconnections. Its 1.27 mm pitch and 160-position configuration support high-speed data transfer while minimizing space usage on the PCB. The connector’s gold-plated contacts enhance signal integrity and longevity, making it suitable for demanding environments. Additionally, features like board guides and pick-and-place compatibility streamline the manufacturing process, reducing assembly time and costs. This connector’s versatility makes it a suitable choice for various industries, including telecommunications, industrial automation, and aerospace.
