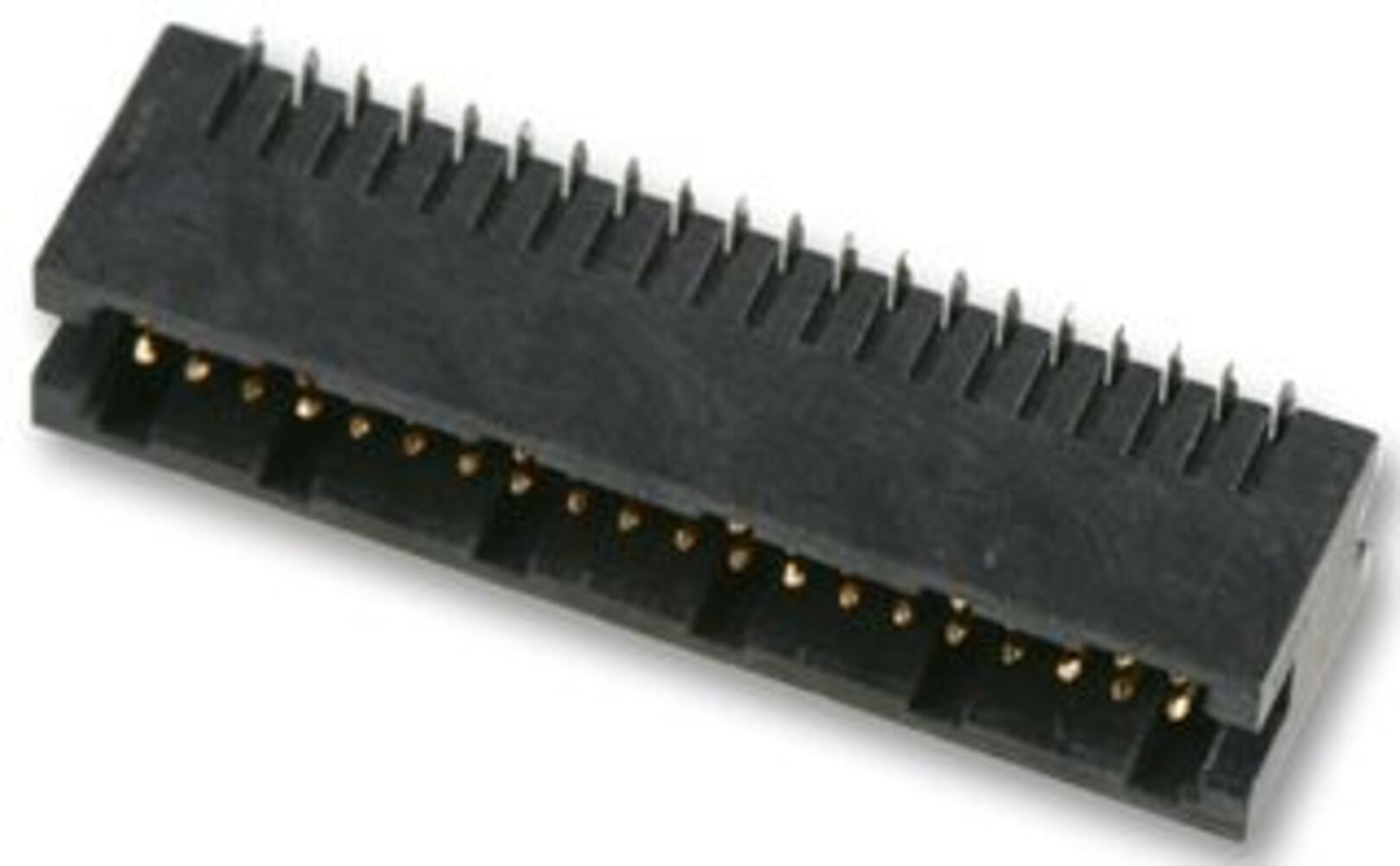

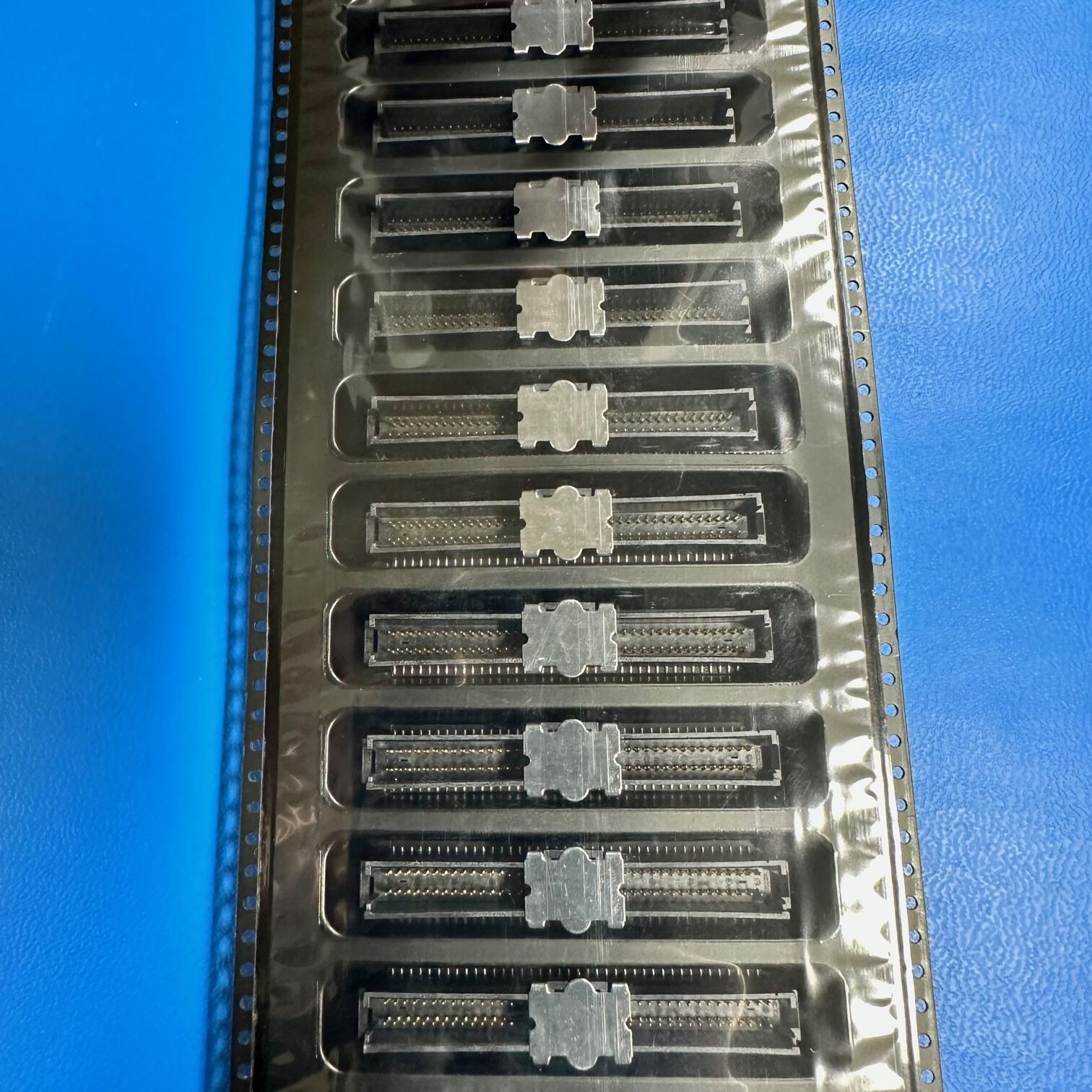

5-147377-7

Type: PCB Mount Header
Connector System: Board-to-Board, Wire-to-Board
Header Type: Fully Shrouded
Sealable: No
Termination: Printed Circuit Board
Load Condition: Fully Loaded
Mount Orientation: Vertical
Number of Positions: 80
Number of Rows: 2

Electrical Characteristics:

• Dielectric Withstanding Voltage (Max): 500 V
• Operating Voltage: 30 VAC

Contact Features:

• Contact Shape & Form: Round
• Contact Mating Area Plating: Bright Gold
• Contact Type: Pin
• Contact Current Rating (Max): 1 A

Termination Features:

• Termination Method: Surface Mount
• Termination Area Plating Material: Tin
• Contact Base Material: Phosphor Bronze

Mechanical Features:

• Mating Retention: With Panel Mount Feature
• Mating Alignment: With Latched Alignment
• Connector Mounting Type: Board Mount

Housing Details:

• Centerline (Pitch): 1.27 mm [.05 in]
• Housing Material: PPA

Dimensions:

• Length: .1 in

Usage Conditions:

• Operating Temperature Range: -65°C to 105°C [-85°F to 221°F]

Solder Process Feature: Board Standoff
Circuit Application: Power & Signal

Industry Standards:

• Approved Standards: CSA LR7189, UL E28476
• UL Flammability Rating: UL 94V-0

This PCB Mount Header, part of the AMPMODU System 50, features a fully shrouded, round pin design with surface mount termination. With 80 positions and a 1.27 mm pitch, it ensures reliable connections for both power and signal applications. Operating within a wide temperature range and meeting stringent industry standards, this connector offers outstanding performance and durability.
