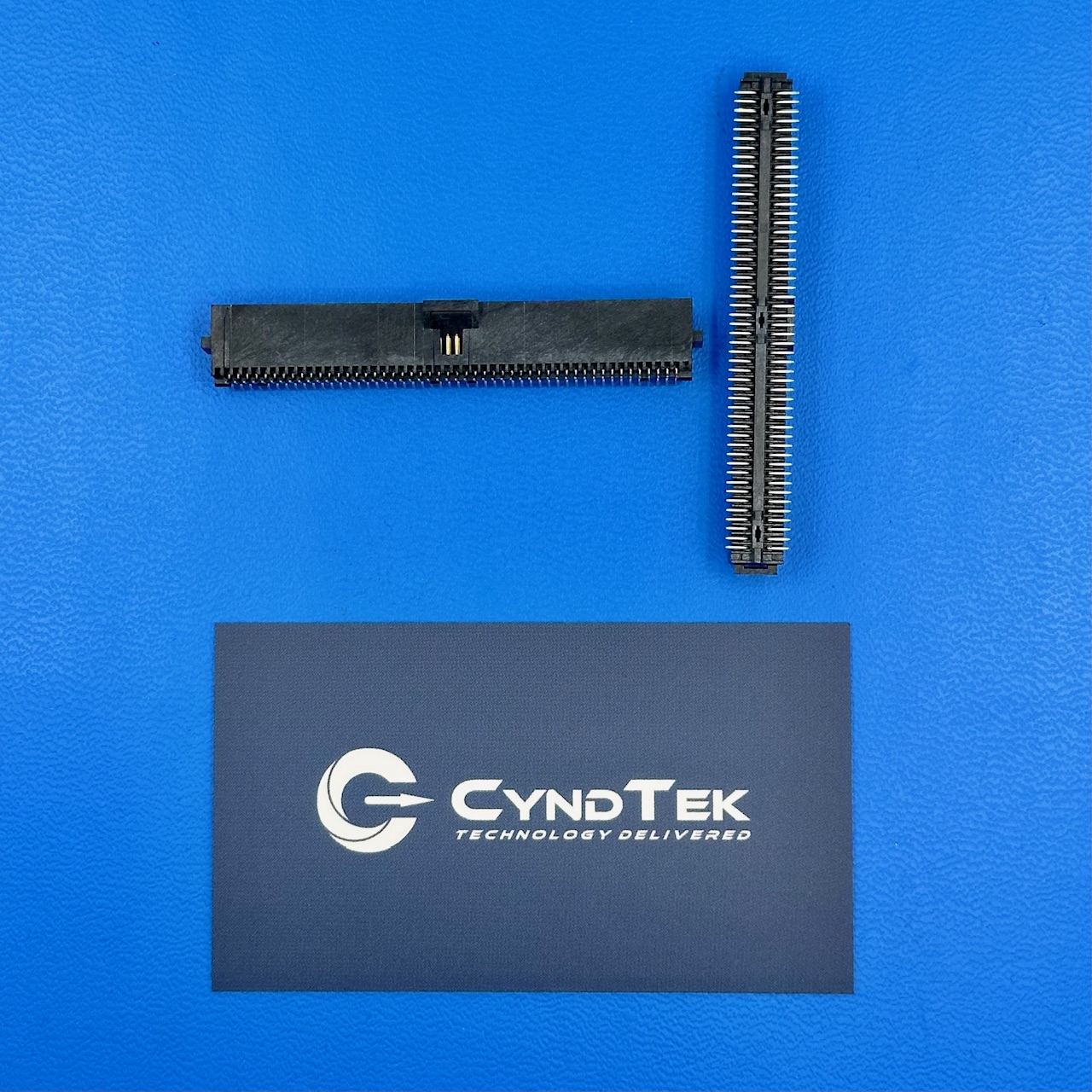

5-147377-8

5-147377-8 Specifications

Manufacturer: TE Connectivity
Part Number: 5-147377-8
Product Type: Board-to-Board Connector
Number of Positions: 100
Pitch: 2.00 mm
Contact Plating: Gold over Nickel
Housing Material: Thermoplastic
Termination Method: Solder
Mounting Type: Surface Mount
Operating Temperature Range: -65°C to +105°C
RoHS Status: RoHS Compliant

Key Features

The 5-147377-8 is a board-to-board connector from TE Connectivity, offering 100 positions with a 2.00 mm pitch. Its contacts are plated with gold over nickel, ensuring reliable conductivity and resistance to corrosion. The housing is constructed from thermoplastic, providing durability and stability in various applications. Designed for surface mount technology (SMT), this connector facilitates efficient soldering processes. It operates effectively within a temperature range of -65°C to +105°C, making it suitable for environments with extreme temperature variations.

Applications

Data communication systems
Industrial control equipment
Medical devices
Telecommunications infrastructure
Consumer electronics

Product Overview

The 5-147377-8 connector by TE Connectivity is engineered for high-density board-to-board connections, accommodating 100 positions within a compact 2.00 mm pitch design. The gold over nickel contact plating enhances signal integrity and longevity, while the thermoplastic housing ensures mechanical robustness. Its surface mount configuration supports automated assembly processes, contributing to manufacturing efficiency. With an operating temperature range spanning from -65°C to +105°C, this connector is versatile for use in various demanding applications.
