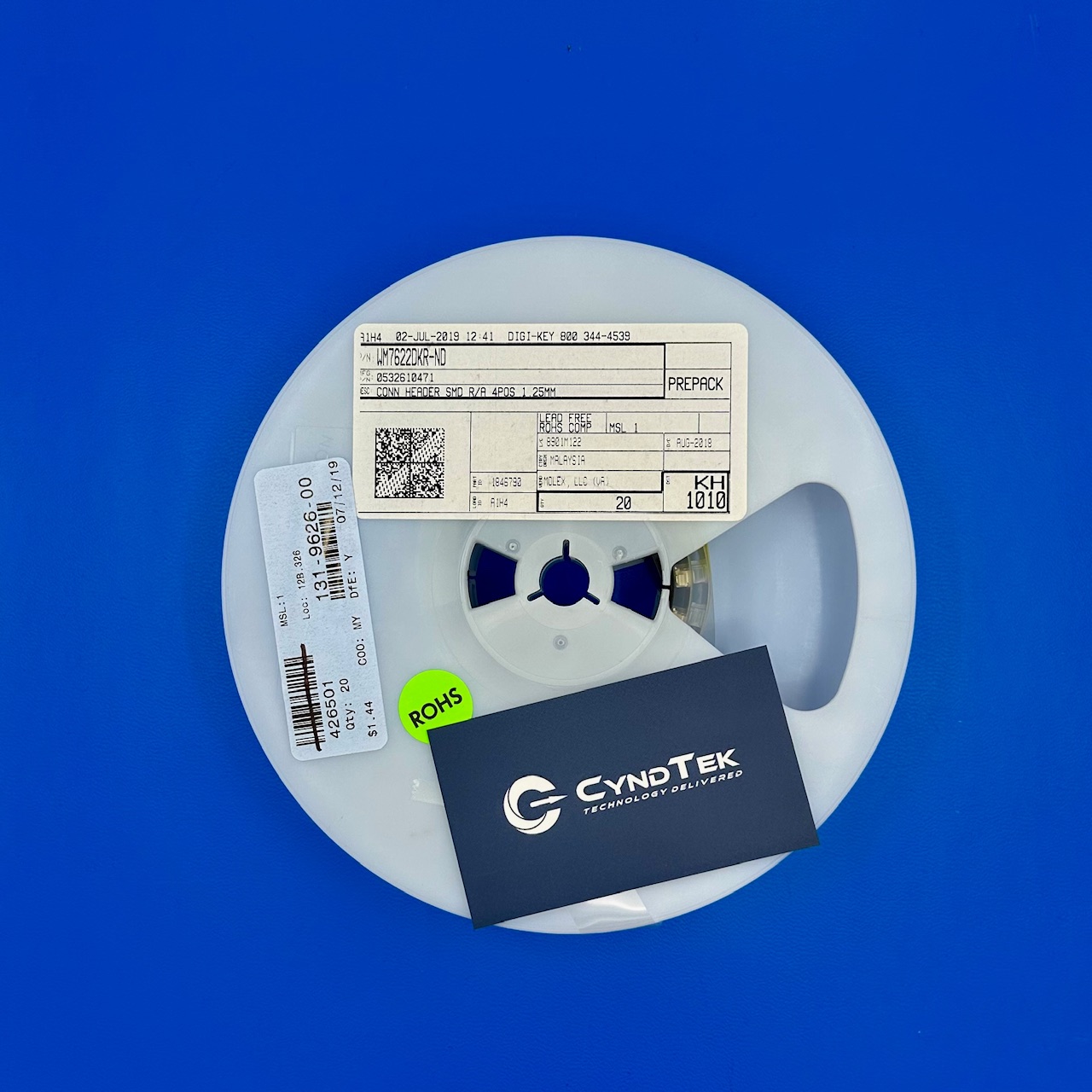

53261-0471

53261-0471 Specifications

• Manufacturer: Molex
• Part Number: 53261-0471
• Product Type: FPC Connector
• Number of Positions: 4
• Pitch: 0.50mm
• Mounting Type: Surface Mount (SMD/SMT)
• Termination Method: Solder
• Contact Material: Phosphor Bronze
• Contact Plating: Gold
• Housing Material: Liquid Crystal Polymer (LCP)
• Operating Temperature Range: -25°C to +85°C
• Voltage Rating: 50V AC/DC
• Current Rating: 0.5A
• Mating Cycles: 20

Key Features

• Compact design suitable for high-density applications.
• Reliable contact design ensures a secure connection.
• Surface-mount technology enables efficient PCB integration.
• Gold-plated contacts enhance conductivity and corrosion resistance.
• Designed for flexible printed circuit (FPC) applications.

Applications

• Consumer electronics such as smartphones and tablets.
• Medical devices requiring compact connectors.
• Industrial equipment with space-saving needs.
• Automotive electronics including infotainment systems.
• Wearable technology and IoT devices.

Product Overview

The 53261-0471 FPC connector is designed for high-density and space-saving applications, offering a secure and reliable connection for flexible printed circuits. Its compact size, 0.50mm pitch, and gold-plated contacts provide excellent electrical performance and durability. Furthermore, its SMD/SMT mounting method simplifies PCB assembly, making it an ideal choice for various industries, including consumer electronics, automotive, and medical devices. With a voltage rating of 50V AC/DC and a current capacity of 0.5A, this connector ensures stable performance even in demanding environments.
