53261-1071 Specifications
Manufacturer: Molex
Part Number: 53261-1071
Product Type: 1.25mm Pitch PicoBlade PCB Header
Number of Positions: 10
Number of Rows: 1
Pitch – Mating Interface: 1.25mm
Mounting Type: Surface Mount, Right Angle
Termination: Solder
Contact Type: Male Blade
Contact Material: Phosphor Bronze
Plating Contact – Mating: Tin
Plating Contact – Termination: Tin
Insulation Material: Polyamide (PA46), Nylon 4/6
Insulation Height: 3.40mm
Shrouding: Fully Shrouded
Lock to Mating Part: Yes (Friction Lock)
Operating Temperature Range: -40°C to +105°C
Voltage Rating: 125V
Current Rating: 1.0A
Flammability Rating: UL94 V-0

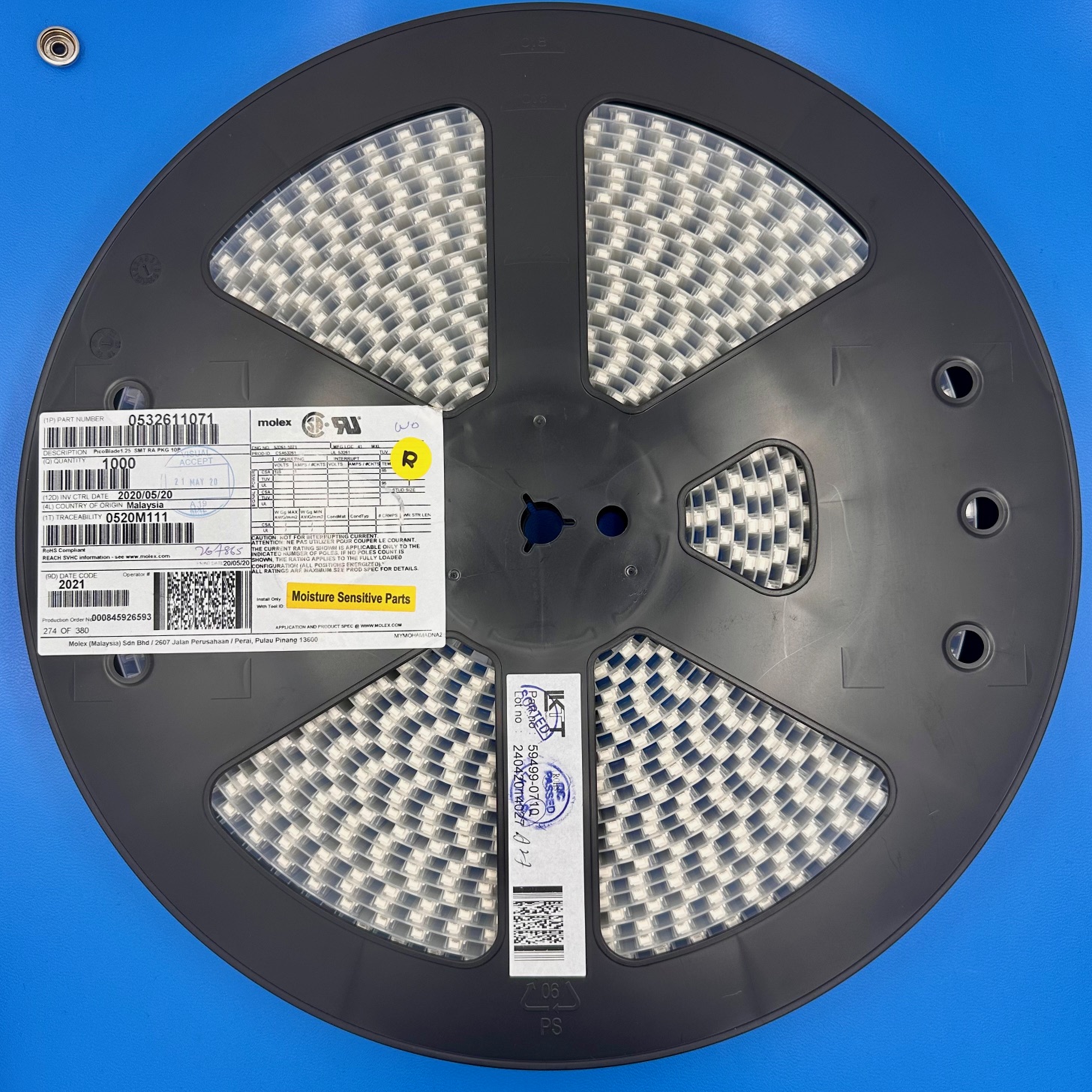

Packaging Type: Tape and Reel
RoHS Status: RoHS Compliant
Key Features
The 53261-1071 is a 1.25mm pitch PicoBlade PCB header from Molex, designed for compact and reliable wire-to-board connections. It features a single row of 10 positions with a right-angle surface mount configuration, facilitating efficient use of PCB space. The fully shrouded design and friction lock mechanism ensure secure mating and prevent accidental disconnections. Constructed with phosphor bronze contacts plated with tin, it offers reliable electrical performance and corrosion resistance. The polyamide insulation material provides durability and supports an insulation height of 3.40mm. Rated for a maximum voltage of 125V and a current of 1.0A per contact, it operates effectively within a temperature range of -40°C to +105°C. Compliance with UL94 V-0 flammability standards and RoHS directives underscores its safety and environmental considerations.
Applications
Signal transmission in automotive electronics.
Data connections in consumer electronics.
Control interfaces in industrial equipment.
Medical device signal pathways.
Communication modules in computing devices.
Product Overview
Molex’s 53261-1071 PicoBlade PCB header is engineered for applications requiring compact and reliable wire-to-board connections. Its 1.25mm pitch and right-angle surface mount design allow for efficient PCB layout in space-constrained environments. The fully shrouded housing and friction lock mechanism provide secure mating, reducing the risk of accidental disconnections. High-quality materials, including phosphor bronze contacts and polyamide insulation, ensure durability and consistent electrical performance. With a voltage rating of 125V and current rating of 1.0A per contact, it is suitable for various low-power signal transmission applications. Operating across a wide temperature range and meeting stringent flammability and environmental standards, the 53261-1071 offers a dependable solution for designers seeking compact and secure interconnect solutions.
