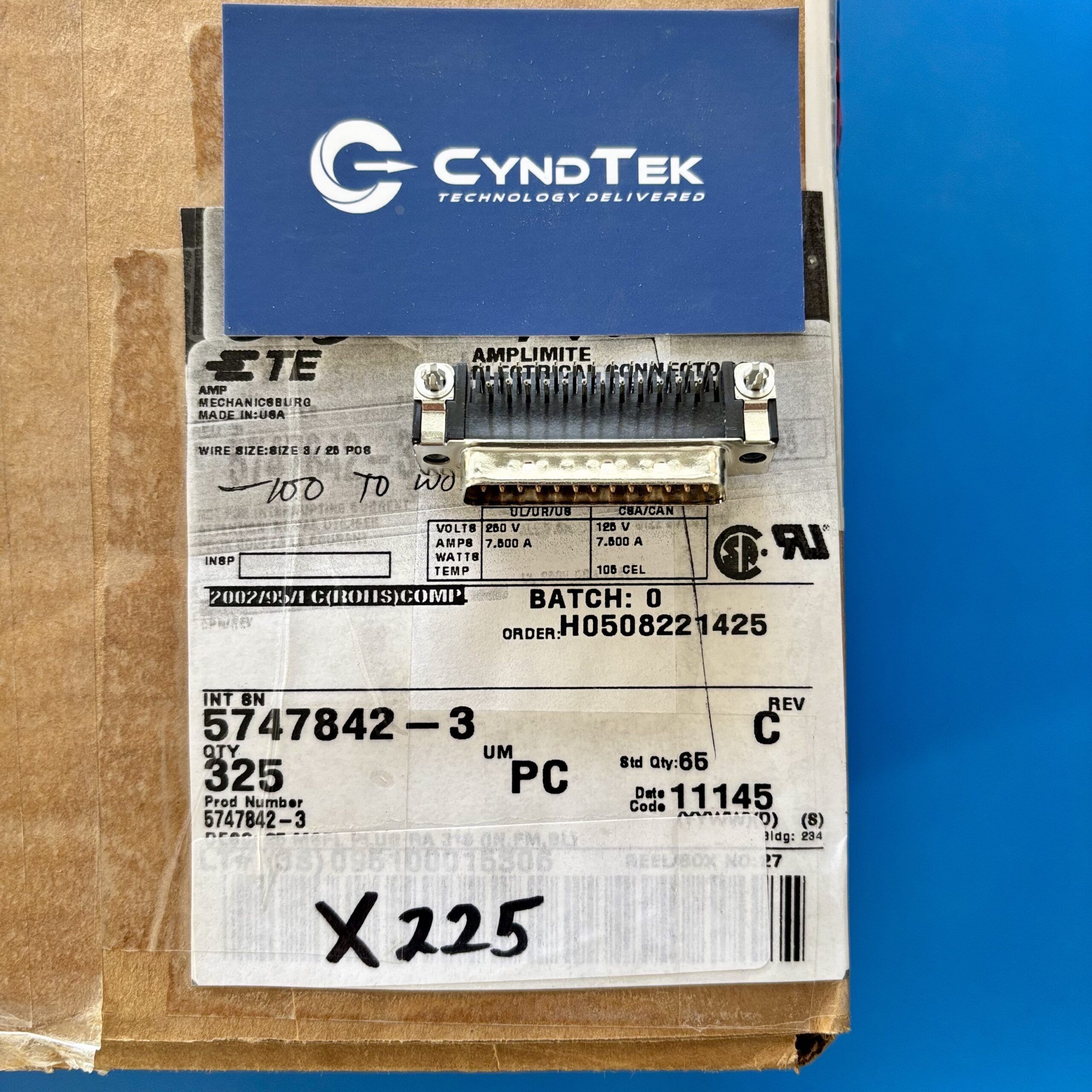

5747842-3

5747842-3 Specifications

Manufacturer: TE Connectivity
Part Number: 5747842-3
Product Type: D-Sub Plug Connector
Connector Type: Plug, Male Pins
Number of Positions: 25
Number of Rows: 2
Shell Size: 3
Centerline (Pitch): 2.77 mm [0.109 in]
Mounting Type: Through Hole, Right Angle
Termination Style: Solder
Contact Material: Brass
Plating Contact   – Mating Area: Gold Flash
Contact Plating – Termination Area: Tin
Shell Material: Carbon Steel
Shell Plating: Tin
Housing Material: Nylon, Polyester
Flammability Rating: UL94 V-0
Operating Temperature Range: -55°C to +105°C
Current Rating: 6A per contact
Compliance: RoHS Compliant

Key Features

The 5747842-3 is a 25-position D-Sub plug connector designed for board-to-board signal applications. Its right-angle, through-hole configuration facilitates efficient PCB mounting and space utilization. The connector features gold flash-plated brass contacts, ensuring reliable conductivity and resistance to corrosion. The tin-plated carbon steel shell provides robust mechanical protection and EMI shielding. Additionally, the nylon and polyester housing meets UL94 V-0 flammability standards, enhancing safety in various operating environments.

Applications

Data communication interfaces requiring secure D-Sub connections
Industrial control systems utilizing standard signal transmissions
Computer peripherals needing reliable board-to-board connectivity
Instrumentation equipment with compact design constraints
Telecommunication devices employing multi-pin interconnects

Product Overview

The TE Connectivity 5747842-3 D-Sub plug connector offers a dependable solution for applications necessitating 25-pin signal connections. Its 2.77 mm pitch and right-angle orientation support compact PCB layouts, while the gold flash-plated contacts ensure consistent electrical performance. The connector’s tin-plated shell enhances durability and provides effective shielding against electromagnetic interference. Operating within a temperature range of -55°C to +105°C and rated for 6A per contact, this connector is suitable for demanding environments across various industries.
