600226
Specifications
Manufacturer: CNC Tech
Part Number: 600226
Date Code: 2144
Quantity Available: 1 spool
Product Type: Magnet Wire
Wire Gauge: 26 AWG
Conductor Material: Annealed Bare Copper
Insulation Material: Polyamide
Magnet Wire Rating: MW35-C HY
Thermal Class: 200
Approximate Length: 877.5 m / 2,878.2 ft
Spool Weight: 1 kg / 2.2 lb
Insulation Diameter: 0.018 inch / 0.46 mm
Packaging: Spool
Application: Transformer, inductor, coil, motor, and winding applications
Key Features
26 AWG enameled copper magnet wire
MW35-C HY magnet wire rating
Thermal Class 200 insulation system
Annealed bare copper conductor
Polyamide insulation material
877.5 meter approximate spool length
2,878.2 foot approximate spool length
1 kg spool for winding and repair work
Suitable for coils, transformers, and inductors
Useful for prototype, repair, and production applications
Applications
Transformer winding
Inductor winding
Motor winding
Solenoid coils
Electromagnetic coil assemblies
Repair and rewind work
Prototype electrical assemblies
Industrial control equipment
Power supply components
Laboratory and engineering projects
Product Description

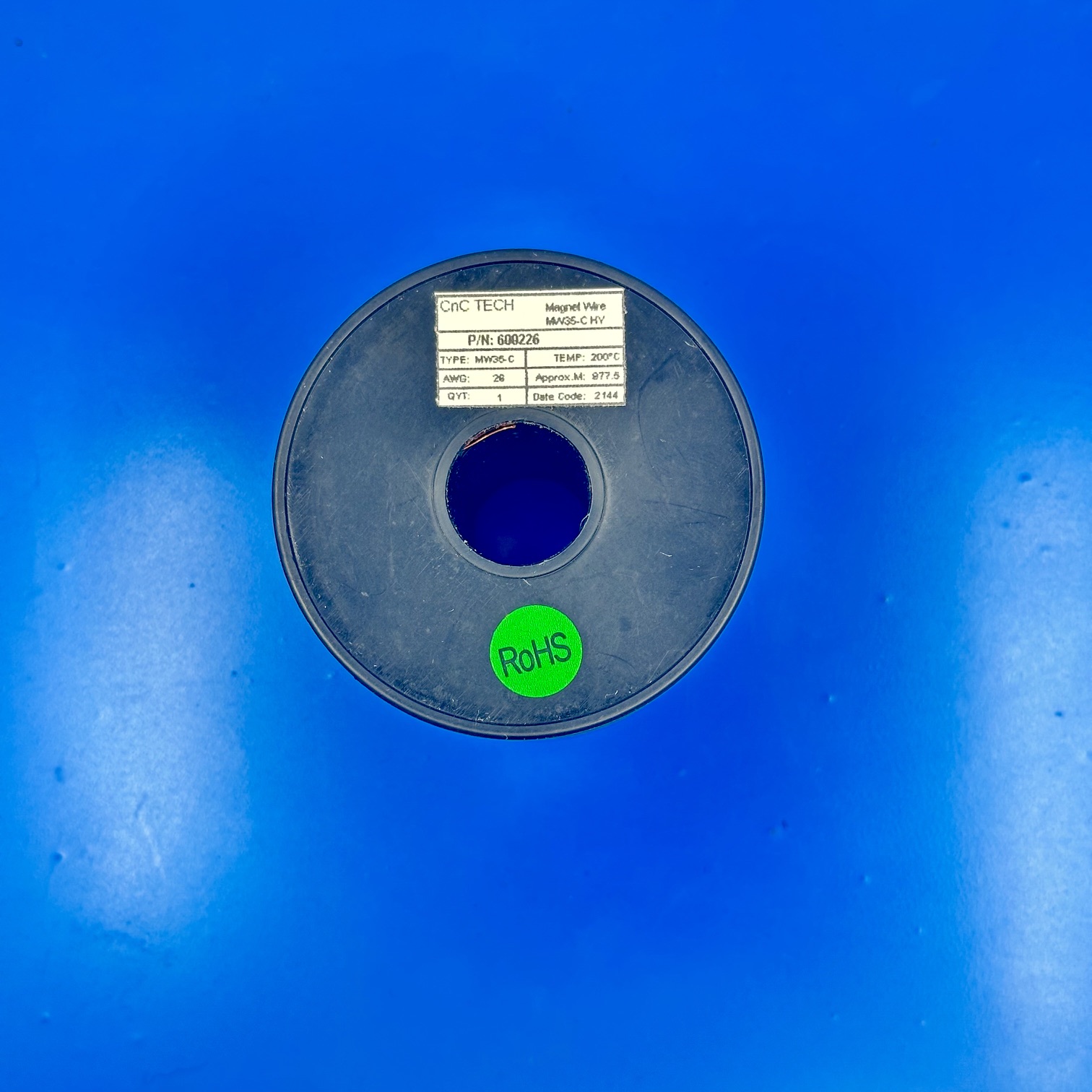

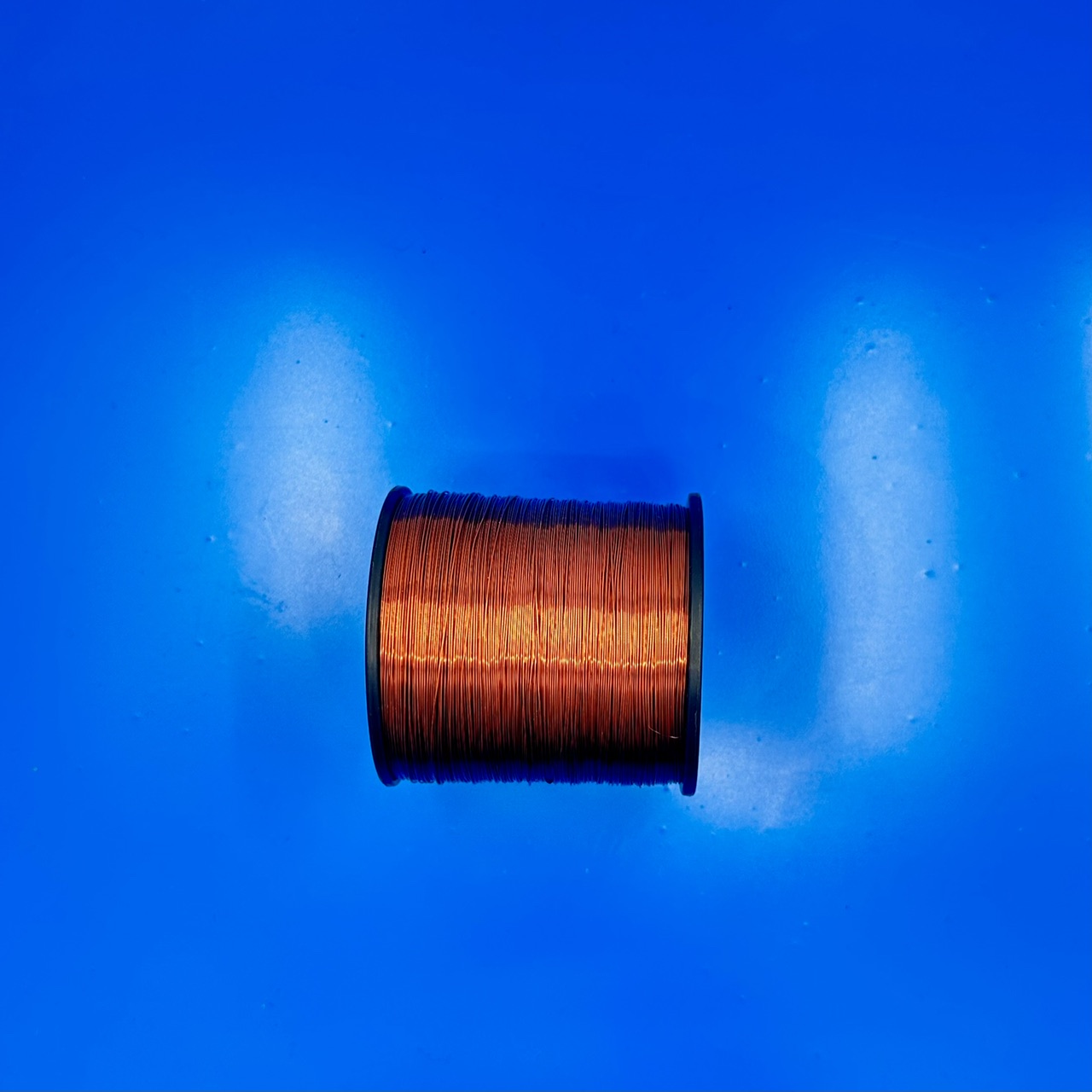

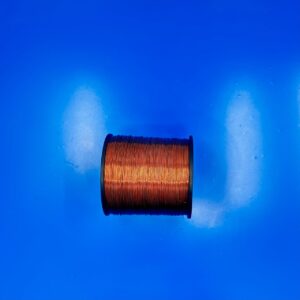

The 600226 from CNC Tech is a 26 AWG enameled copper magnet wire. It is designed for winding, repair, prototype, and production applications. This wire uses an annealed bare copper conductor with a polyamide insulation system. In addition, it carries an MW35-C HY magnet wire rating for demanding coil and winding work.
This magnet wire is supplied on a 1 kg spool. The approximate wire length is 877.5 meters, or 2,878.2 feet. As a result, it gives technicians, engineers, and production teams a practical amount of wire for small builds, repair jobs, and controlled production needs. The 26 AWG size also works well where compact winding and manageable current capacity are both important.
The Thermal Class 200 rating helps support applications that require higher temperature resistance than basic general-purpose wire. Therefore, this product can be useful in transformer winding, inductor winding, solenoid coils, motor work, and electromagnetic assemblies. It can also support industrial control equipment, power supply components, and laboratory projects.
Because magnet wire applications can vary, buyers should confirm the wire gauge, insulation type, thermal class, spool length, and winding requirements before purchase. They should also review any electrical, mechanical, or temperature requirements for the final assembly.
Cyndtek® supplies electronic components, wire, cable, and hard-to-find parts for OEM, repair, test, and production applications. To request pricing or availability for 600226, visit our Cyndtek shop or contact sales@cyndtek.com with your quantity, target price, and required delivery schedule.
