6098-5269

Sumitomo 6098-5269 Specifications:

• Series: NH Series
• Number of Pins: 8
• Terminal Size: 0.64 mm (025)
• Material: Polybutylene Terephthalate (PBT)
• Color: Natural
• Mating Part: 6098-5271 (NH Series)
• Contact Resistance:
  • Initial: ≤10 mΩ
  • After Durability Tests: ≤30 mΩ
• Leakage Current: ≤1 mA
• Insulation Resistance: ≥100 MΩ

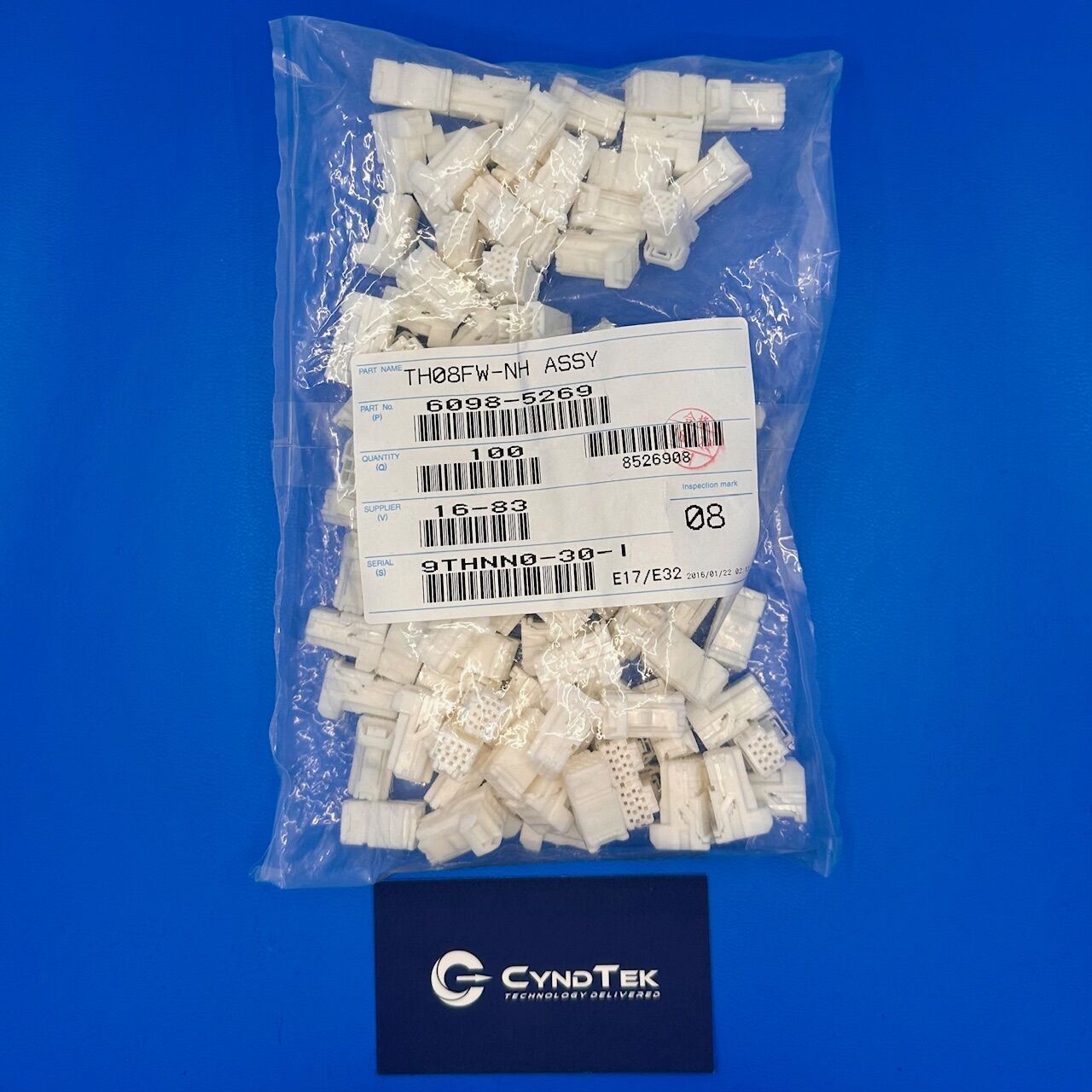

The Sumitomo 6098-5269 is an 8-position unsealed female housing connector primarily used in automotive wiring applications. Primarily, it is designed to accommodate 0.64 mm terminals, ensuring compatibility with the corresponding 6098-5271 male housing. Moreover, its polybutylene terephthalate (PBT) construction provides excellent durability, while its natural color allows for easy identification. In addition to its low initial contact resistance of ≤10 mΩ, it maintains reliability over time, as its resistance remains ≤30 mΩ even after durability tests. Furthermore, with an insulation resistance of ≥100 MΩ, it effectively prevents electrical leakage. Additionally, this connector serves as a dependable solution for inline wiring applications where an unsealed connection is preferred.

The Sumitomo 6098-5269 connector is commonly found in automotive wiring harnesses, particularly in non-sealed applications where exposure to moisture or harsh environmental conditions is minimal. More specifically, it is often used in interior vehicle components, such as dashboard controls, infotainment systems, and lighting circuits, where secure electrical connections are essential. Additionally, it can be found in engine compartments, though primarily in areas protected from direct exposure to water and debris. Beyond the automotive industry, this type of connector may also be utilized in motorcycles, industrial machinery, and electronic equipment, especially when a compact and reliable multi-position connector is needed. As a result, its versatility makes it an ideal choice for applications requiring secure, low-resistance electrical connections in environments where a fully sealed connector is unnecessary.
