64097

64097

$10.00

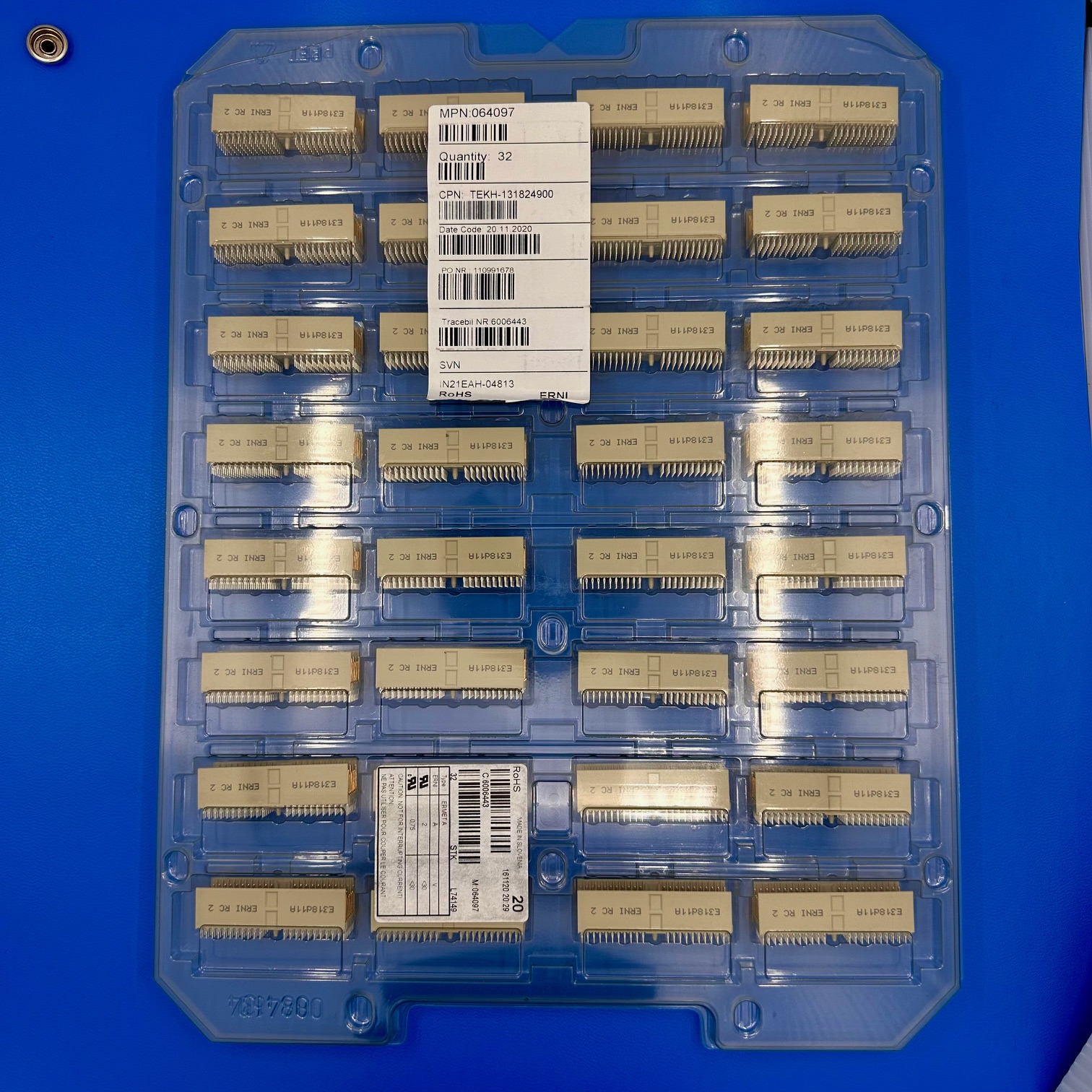

2MM HM A 154POS M 3.7MM GOLD CONTACT
  • Manufacturer: ERNI
  • Part Number: 64097
  • Packaging: Tray
  • Quantity: Each
  • Datecode: 20+

Availability: 70 in stock

SKU TR4B Category Brand:

64097 Specifications

Manufacturer: ERNI (a TE Connectivity Company)
Part Number: 64097
Product Type: Hard Metric Backplane Connector
Connector Style: Type B, Right Angle Male
Pitch: 2.00 mm
Total Positions: 110
Mounting Type: Through Hole, Press-Fit
Termination Type: Press-Fit Pins
Contact Plating: Gold over Nickel
Current Rating: 1.5 A per contact
Operating Voltage: 750 V RMS
Contact Resistance: Max 20 mΩ
Insulation Resistance: Min 1,000 MΩ
Mating Cycles: 250 min
Housing Material: Thermoplastic, UL 94V-0
Operating Temperature Range: -55°C to +125°C
RoHS Status: RoHS Compliant

Key Features

The 64097 is a right-angle hard metric connector from ERNI, engineered for high-density backplane applications where robust performance and signal integrity are critical. Its 2.00 mm pitch and 110-position configuration support compact, high-speed system architectures. Using proven press-fit termination, the connector provides reliable gas-tight connections without soldering, reducing stress on PCB pads. Furthermore, its gold-plated contacts ensure consistent conductivity and signal performance over extended cycles. The design meets IEC 61076-4-101 standards, making it suitable for telecommunications, industrial control, and computing environments that demand mechanical stability and data integrity.

Applications

Telecom switches and multiplexer racks with backplane interconnects
Industrial automation controllers using modular board-to-backplane layouts
Data center infrastructure including server chassis and blade systems
Military-grade electronic subsystems with high shock and vibration resilience
High-reliability computing platforms with dense signal routing requirements

Product Overview

The ERNI 64097 hard metric connector is a high-performance solution for modular backplane systems. Designed for right-angle mating, this connector accommodates 110 signal and ground paths in a compact layout. Thus making it ideal for complex system interconnects. Its press-fit technology offers low-insertion-force connectivity while maintaining mechanical stability and long-term performance. Gold-over-nickel plated contacts enhance durability and reduce degradation in demanding electrical environments. Because of its adherence to strict IEC and performance standards, the 64097 series is trusted for use in mission-critical, high-speed communication systems.
