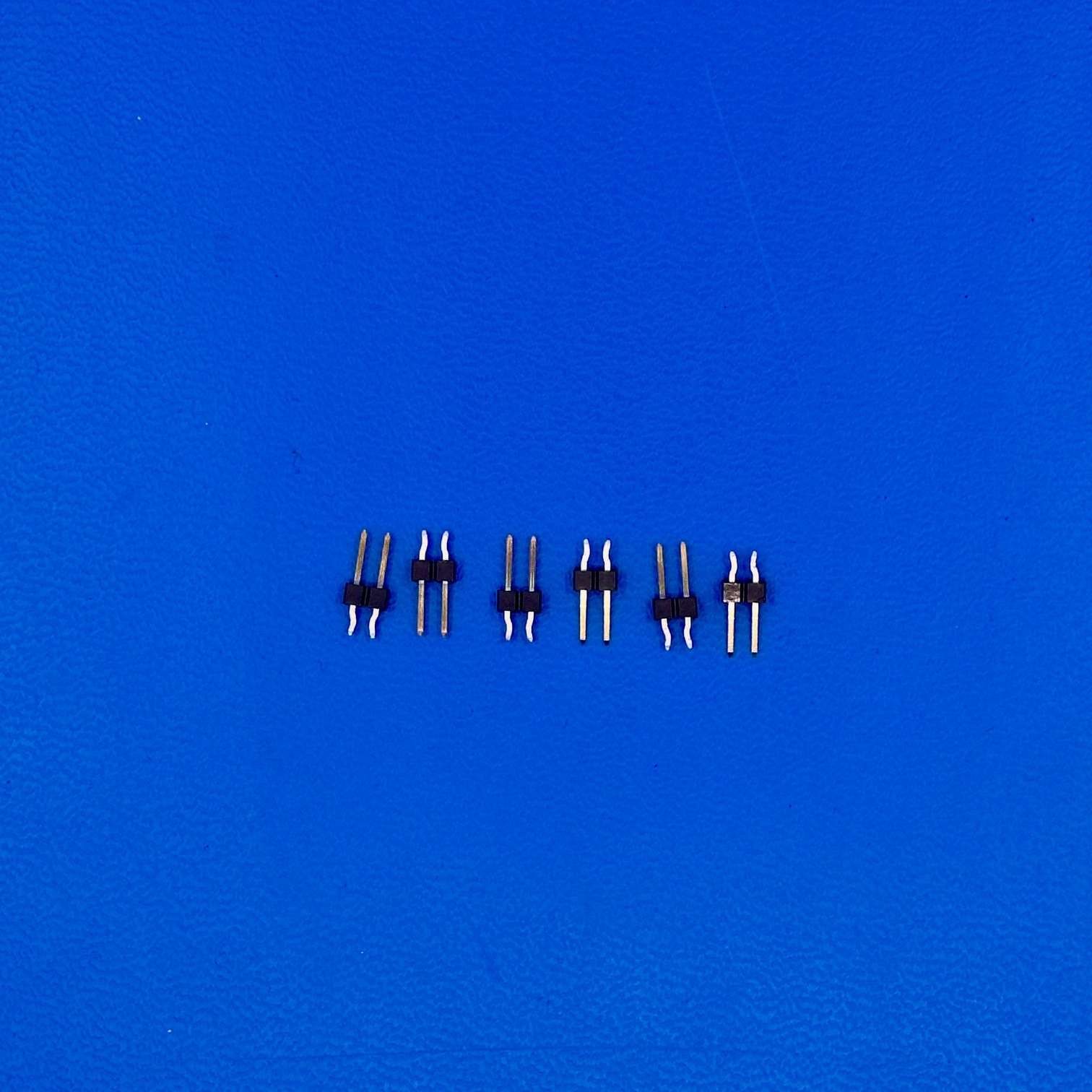

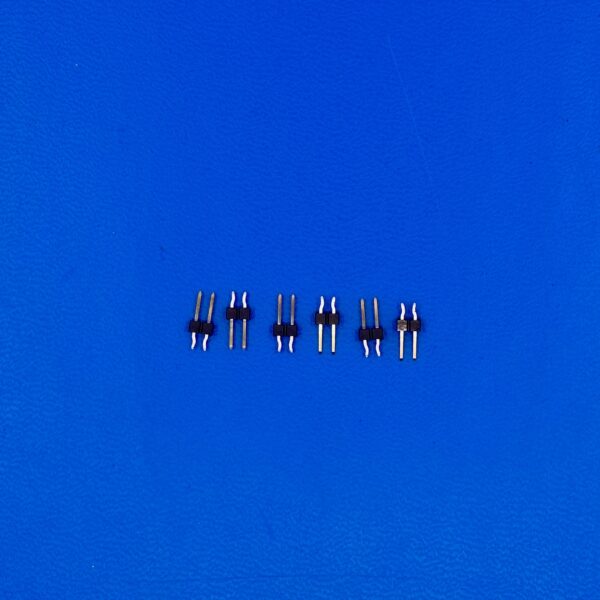

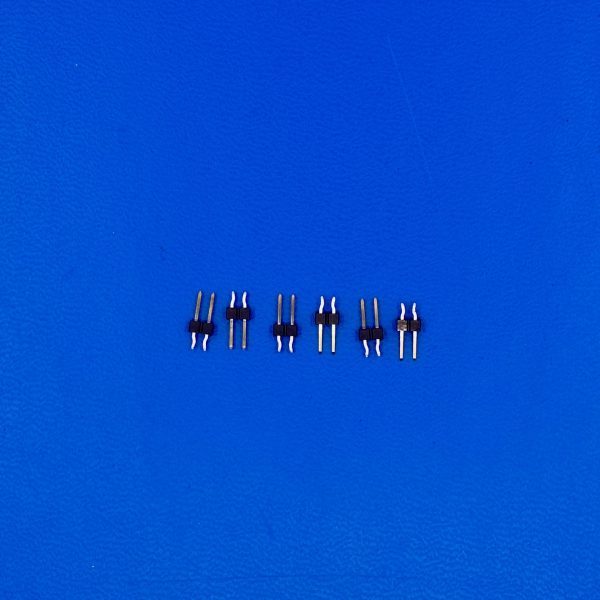

69190-202HLF

69190-202HLF

$0.15

CONN HEADER VERT 2POS 2.54MM
  • Manufacturer: FCI
  • Part Number: 69190-202HLF
  • Packaging: bulk
  • Quantity: Each
  • Datecode: 2219

Availability: 561 in stock

SKU TSX054E Category Brand:

69190-202HLF Specifications

Manufacturer: Amphenol ICC (FCI)
Part Number: 69190-202HLF
Product Type: Unshrouded Vertical Pin Header
Connector Type: Header, Male Pins
Number of Positions: 2
Number of Rows: 1
Pitch – Mating: 0.100″ (2.54mm)
Mounting Type: Through Hole
Termination: Press-Fit, Solder
Contact Length – Mating: 0.230″ (5.84mm)
Contact Length – Post: 0.120″ (3.05mm)
Overall Contact Length: 0.450″ (11.43mm)
Insulation Height: 0.100″ (2.54mm)
Contact Shape: Square
Finish – Mating: Gold or GXT™
Finish Thickness – Mating: 15.0µin (0.38µm)
Contact Material: Phosphor Bronze
Insulation Material: Glass-Filled PCT
Operating Temperature Range: -65°C to +130°C
Current Rating: 3A
Material Flammability Rating: UL94 V-0
RoHS Status: RoHS Compliant

Key Features

The 69190-202HLF is a compact, unshrouded vertical pin header designed for robust and reliable board-to-board connections. It offers a 2-position, single-row configuration with a standard 2.54mm pitch, ensuring broad compatibility with existing PCB layouts. The gold or GXT™ plated contacts provide excellent conductivity while reducing contact resistance and wear over time. Its through-hole mounting and press-fit termination offer a secure electrical connection ideal for vibration-prone environments. The glass-filled PCT insulation provides high thermal resistance and mechanical strength. Because of its 3A current rating and wide temperature range, this header is suitable for demanding applications in industrial, consumer, and automotive systems.

Applications

Computing equipment such as workstations and blade servers
Industrial automation panels and PLC modules
Consumer electronics including TVs and digital audio systems
Telecommunications routers and switching devices
Automotive control units and in-vehicle infotainment modules

Product Overview

The 69190-202HLF from Amphenol ICC delivers reliable and compact PCB-to-PCB connectivity in high-performance systems. With a 2.54mm pitch and simple, unshrouded design, it integrates easily into standard board layouts. Its phosphor bronze contacts and gold plating ensure long-term reliability and excellent signal integrity. Additionally, the durable PCT housing resists high temperatures and maintains strength during soldering or mechanical stress. The part supports a current rating of 3A and maintains stable operation in environments ranging from -65°C to +130°C. Designers in need of a space-efficient, press-fit header with dependable performance will find this part especially well-suited for industrial, networking, or automotive designs.
