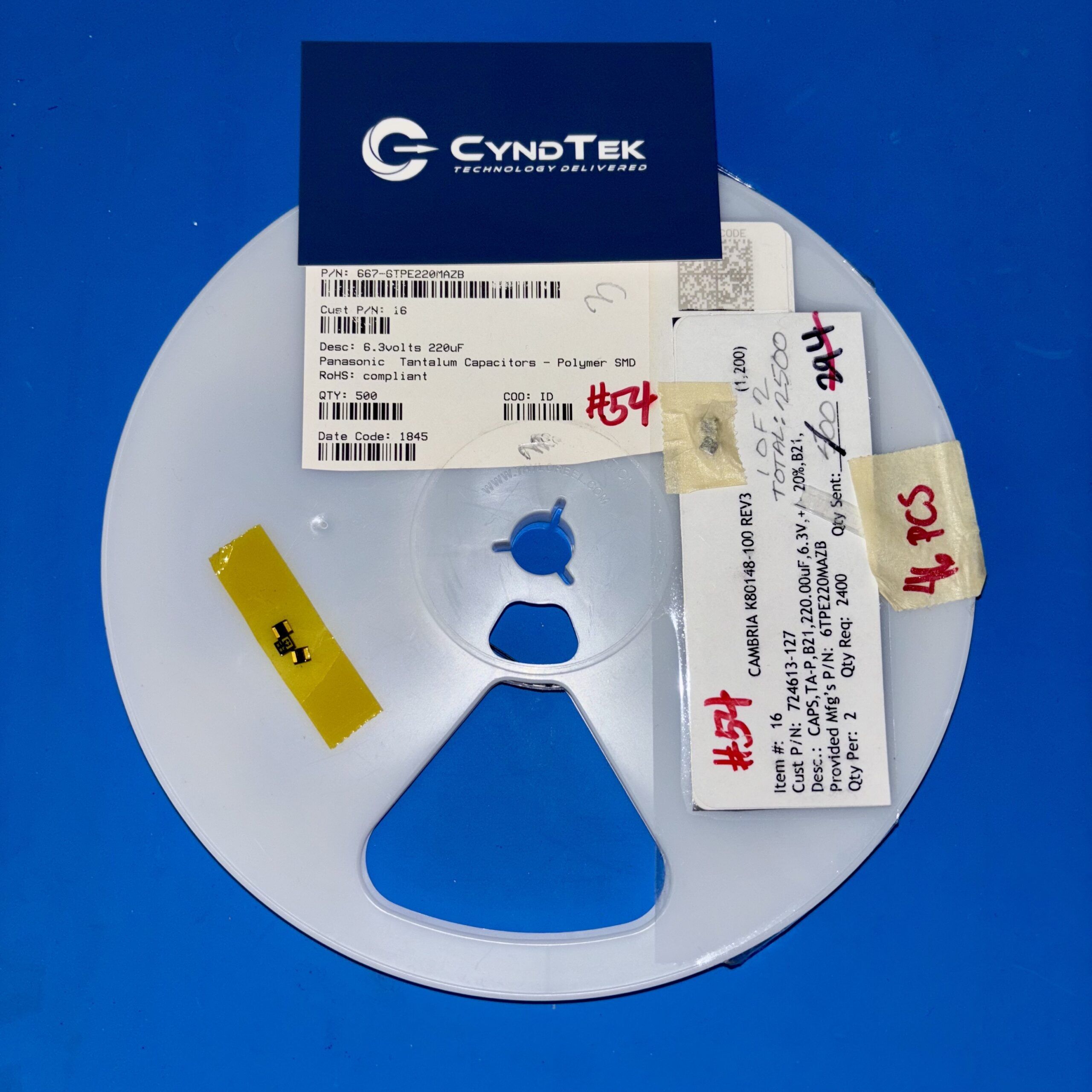

6TPE220MAZB

6TPE220MAZB Specifications

Manufacturer: Panasonic Electronic Components
Part Number: 6TPE220MAZB
Product Type: Conductive Polymer Tantalum Solid Capacitor
Capacitance: 220 µF ±20%
Voltage Rating: 6.3 V DC
Equivalent Series Resistance (ESR): 35 mΩ at 100 kHz
Leakage Current: 138.6 µA (maximum)
Dissipation Factor: 0.1 (maximum)
Ripple Current: 1400 mA RMS at 100 kHz, 45°C
Operating Temperature Range: -55°C to +105°C
Endurance: 1000 hours at 85°C
Package / Case: 1411 (3.5 mm x 2.8 mm x 1.9 mm)
Mounting Type: Surface Mount
Polarity: Polar
RoHS Status: RoHS Compliant

Key Features

The 6TPE220MAZB from Panasonic Electronic Components is a conductive polymer tantalum solid capacitor designed for applications requiring high capacitance and low ESR in a compact form factor. With a capacitance of 220 µF and a voltage rating of 6.3 V DC, it effectively supports power stabilization and noise suppression in electronic circuits. The capacitor’s low ESR of 35 mΩ at 100 kHz ensures efficient performance in high-frequency applications, while its maximum leakage current of 138.6 µA contributes to reliable operation. Measuring just 3.5 mm x 2.8 mm x 1.9 mm, this surface-mount device is suitable for high-density PCB layouts. Its endurance rating of 1000 hours at 85°C, combined with an operating temperature range of -55°C to +105°C, guarantees long-term reliability across various environmental conditions.

Applications

Power supply decoupling in high-frequency switching regulators.
Noise suppression in DC-DC converters for telecommunications equipment.
Energy storage in solid-state drives (SSDs) to enhance data integrity.
Voltage stabilization in automotive electronic control units (ECUs).
Filtering applications in portable consumer electronics to ensure signal clarity.

Product Overview

Panasonic’s 6TPE220MAZB capacitor offers a robust solution for engineers seeking high capacitance and low ESR in a miniature package. Its conductive polymer tantalum construction provides stable electrical characteristics and enhanced reliability. Thus making it ideal for demanding applications such as power supply decoupling and noise suppression. The capacitor’s compact dimensions facilitate integration into space-constrained designs. Compliance with RoHS standards underscores Panasonic’s commitment to environmental responsibility. With a ripple current rating of 1400 mA RMS and a dissipation factor of 0.1, the 6TPE220MAZB ensures efficient performance in high-frequency circuits, contributing to the overall stability and longevity of electronic systems.
