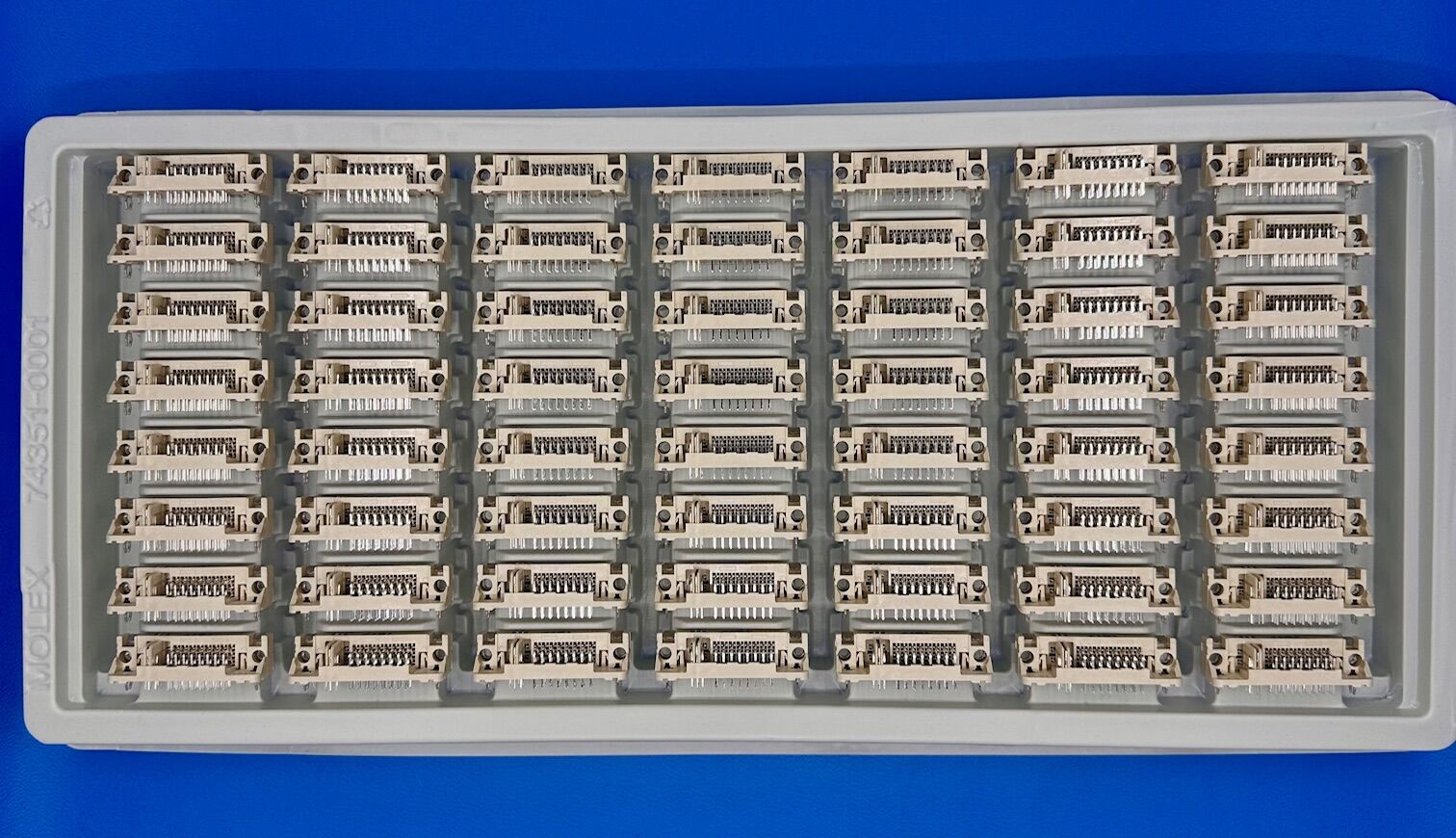

743209010

743209010 Specifications

Manufacturer: Molex
Part Number: 743209010
Product Type: DVI-I Digital/Analog Visual Interface Receptacle
Mounting Type: Panel Mount, Through Hole
Orientation: Right Angle
Number of Positions: 29
Contact Plating: Gold (0.76μm / 30μ”)
Contact Material: Copper Alloy
Shield Material: Deep Draw Steel
Housing Material: LCP (Liquid Crystal Polymer), UL94V-0, Natural (White)
Tail Aligner Material: LCP, UL94V-0, Natural (White)
Current Rating: 3A
Operating Temperature Range: -20°C to +85°C
Recommended Mounting Hardware: Molex P/N 71781-0001, 82007-0300, or 88780-6066
Compliance: Meets DDWG DVI Specification

Key Features

• Compact design suitable for space-constrained applications.
• Supports up to 48Gbps bandwidth, enabling 8K resolution display.
• Gold-plated contacts ensure reliable electrical connections.
• Panel mount with through-hole termination provides secure mounting.
• Right-angle orientation facilitates efficient PCB layout.

Applications

• High-resolution display interfaces.
• Digital video equipment requiring compact connector solutions.
• Consumer electronics with DVI connectivity.
• Professional audio-video systems.
• Space-constrained applications needing high-speed data transmission.

Product Overview

The Molex 743209010 is a DVI-I Digital/Analog Visual Interface receptacle connector designed for panel mount applications. It features a right-angle orientation with 29 positions, accommodating both digital and analog signals for versatile connectivity. Constructed with gold-plated copper alloy contacts and a deep draw steel shield, it ensures reliable performance and durability. The connector’s compact design and compliance with DDWG DVI specifications make it suitable for high-resolution display interfaces and space-constrained applications requiring high-speed data transmission.
