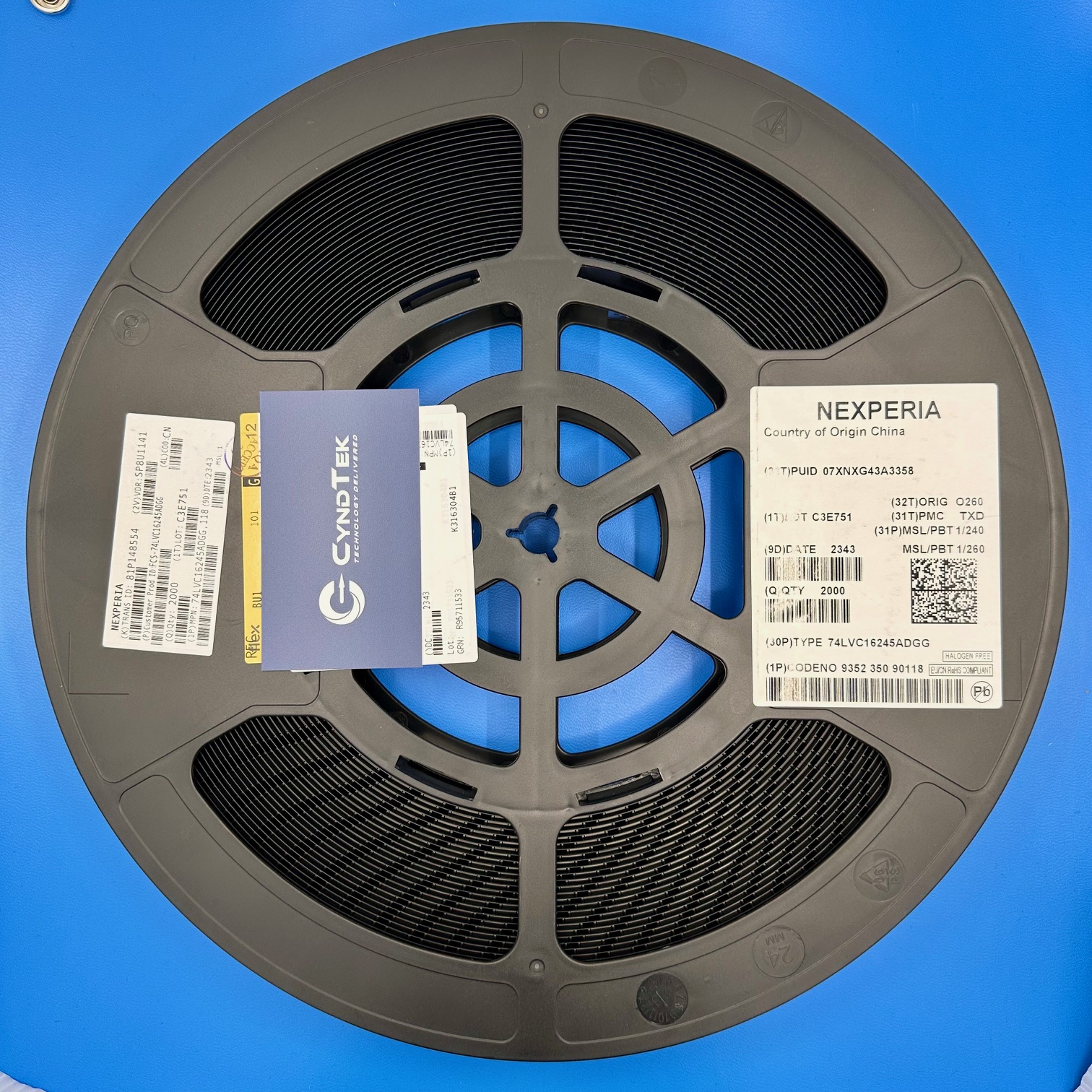

74LVC16245ADGG

74LVC16245ADGG,118 Specifications

Manufacturer: Nexperia
Part Number: 74LVC16245ADGG,118
Product Type: 16-bit Bus Transceiver with Direction Control
Logic Type: Transceiver, Non-Inverting
Number of Elements: 2
Number of Bits per Element: 8
Input Type: –
Output Type: 3-State
Current – Output High, Low: 24mA, 24mA
Voltage – Supply: 1.2V ~ 3.6V
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 48-TFSOP (0.240″, 6.10mm Width)
Supplier Device Package: 48-TSSOP
RoHS Status: RoHS Compliant

Key Features

The 74LVC16245ADGG,118 from Nexperia is a 16-bit transceiver with 3-state outputs, capable of operating as two 8-bit transceivers or a single 16-bit transceiver. It features two output enables (1OE and 2OE) for controlling eight outputs each, and two direction control inputs (1DIR and 2DIR). Inputs are overvoltage tolerant up to 5.5 V, allowing for compatibility with higher voltage systems. The device supports a wide supply voltage range from 1.2 V to 3.6 V and offers a low power dissipation characteristic. Schmitt-trigger action at all inputs ensures tolerance to slower input rise and fall times. Additionally, the device includes I_OFF circuitry for partial power-down mode operation, preventing damaging backflow currents when powered down.

Applications

Bidirectional data buses in computing systems
Level shifting in mixed-voltage environments
Peripheral interfacing in embedded systems
Communication systems requiring direction-controlled data flow
Industrial automation equipment with multi-voltage logic levels

Product Overview

Nexperia’s 74LVC16245ADGG,118 is engineered for efficient bidirectional data transfer in various applications. Its 16-bit configuration, combined with direction control and 3-state outputs, provides flexibility for complex data bus systems. The device’s wide operating voltage range and overvoltage-tolerant inputs make it suitable for mixed-voltage environments. Schmitt-trigger inputs enhance noise immunity, ensuring reliable operation in electrically noisy conditions. Compliance with RoHS standards reflects Nexperia’s commitment to environmentally responsible manufacturing practices.
