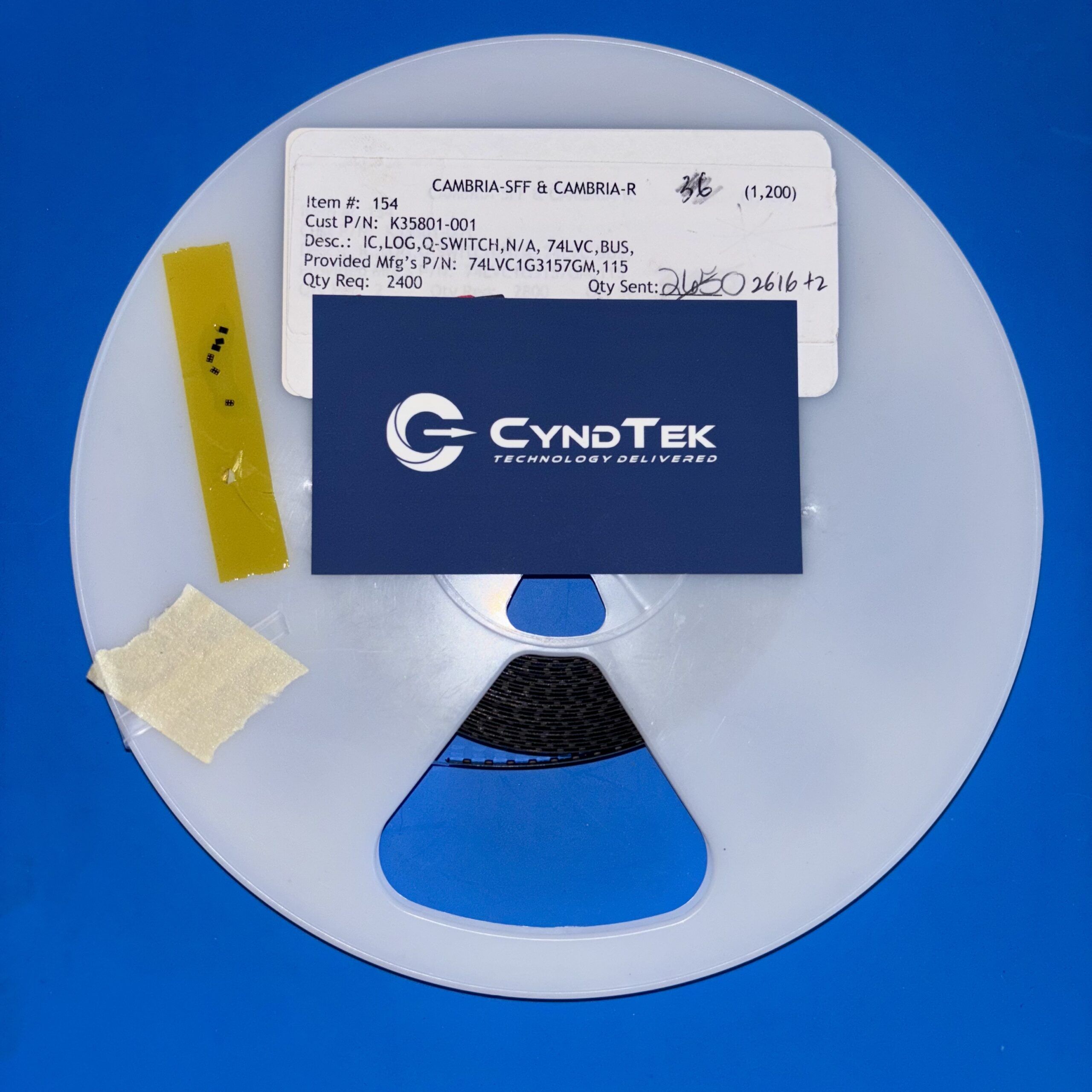

74LVC1G3157GM

74LVC1G3157GM Specifications

Manufacturer: Nexperia
Part Number: 74LVC1G3157GM
Product Type: Analog Switch
Switch Configuration: SPDT (Single-Pole Double-Throw)
Number of Circuits: 1
On-State Resistance: 10 ohms max
Bandwidth: 300 MHz
Supply Voltage Range: 1.65 V to 5.5 V
Turn-On Time: 4 ns
Turn-Off Time: 3.5 ns
Charge Injection: 7.5 picocoulombs
Channel Capacitance (Off): 6 pF
Operating Temperature Range: -40°C to +125°C
Package Type: 6-XSON (SOT886)
Mounting Type: Surface Mount
Compliance: RoHS Compliant

Key Features

The 74LVC1G3157GM is a compact analog switch designed for low-power and high-speed signal routing. With a single-pole double-throw configuration, it efficiently directs one input to two outputs under digital control. Its low on-resistance of 10 ohms reduces signal loss, while its high bandwidth of 300 MHz supports analog and digital signals alike. Switching speeds as fast as 4 ns improve response time in real-time systems. Additionally, its compact 6-XSON package is ideal for miniaturized applications that demand space efficiency and reliability. The device also includes break-before-make behavior to prevent output shorting during transition states.

Applications

Signal path switching in handheld radios and transmitters
Analog routing in high-frequency communication boards
Smartphone sensor multiplexing and control
Touchscreen signal interfacing in embedded systems
Portable audio and video signal switching

Product Overview

The 74LVC1G3157GM by Nexperia is an analog SPDT switch designed to meet the needs of systems requiring fast and low-loss signal transitions. With a wide voltage supply range and fast switching speeds, it excels in designs that demand both power efficiency and high-frequency performance. Its 300 MHz bandwidth ensures compatibility with analog and digital signals. Thus allowing low charge injection to minimize signal interference during switching. The 6-XSON package reduces board footprint without sacrificing performance. Ideal for smartphones, test equipment, and embedded devices, this switch supports stable operation across a wide temperature range.
