78730-1002 Specifications

Manufacturer: Molex
Part Number: 78730-1002
Product Type: DDR4 DIMM Socket
Number of Positions: 288
Pitch – Mating Interface: 0.85 mm
Mounting Type: Surface Mount, Vertical
Termination: SMD/SMT
Contact Material: Copper Alloy
Plating Contact – Mating: Gold (0.76 µm)
Contact Plating – Termination: Tin (2.54 µm)
Insulation Material: Nylon
Color – Resin: Black
Current Rating (Amps): 0.75A
Voltage Rating: 29V AC (RMS)/DC
Operating Temperature Range: -55°C to +85°C
Durability (mating cycles max): 25
Flammability Rating: UL94 V-0
PCB Thickness – Recommended: 1.57 mm, 3.18 mm

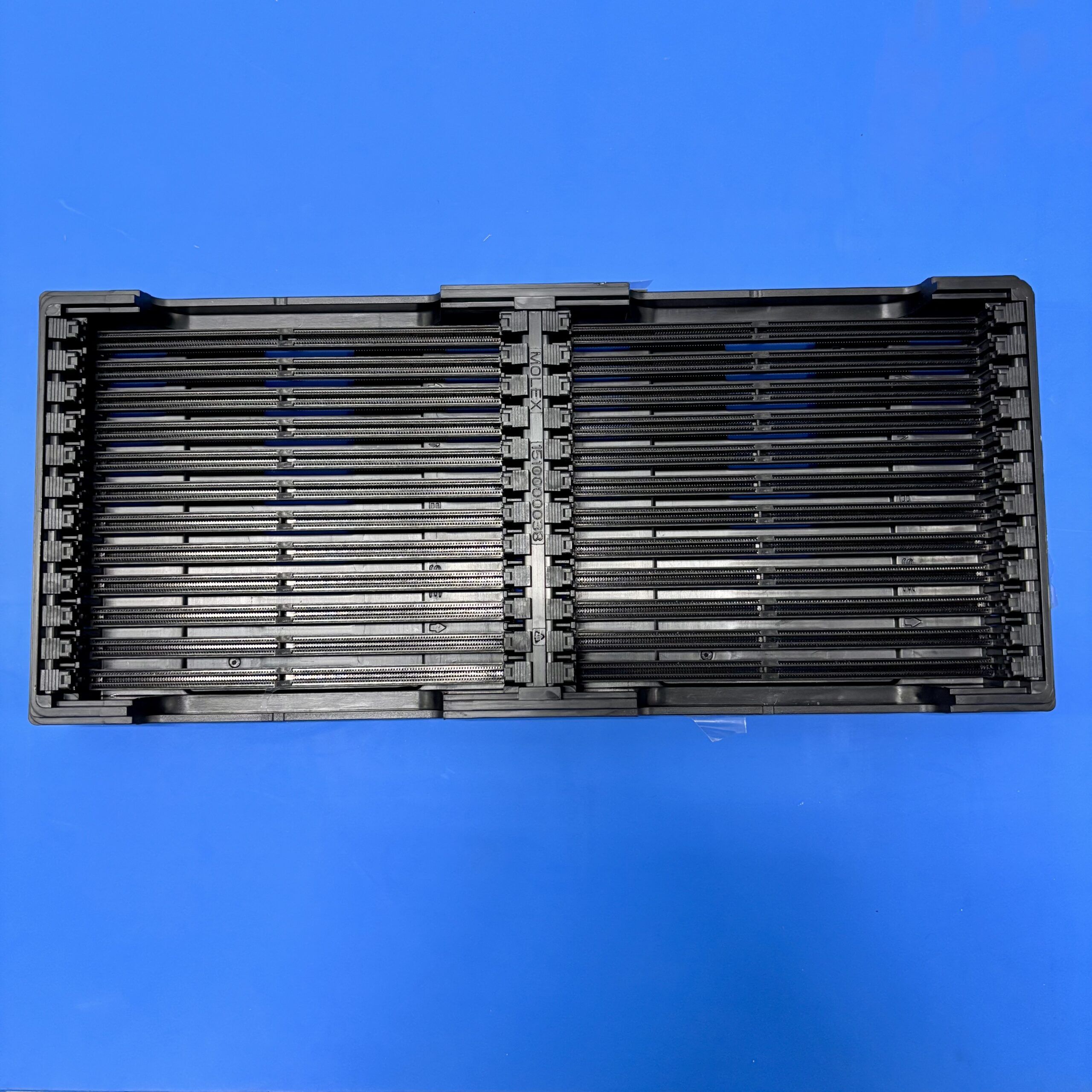

Packaging Type: Tray
Compliance: RoHS Compliant

Key Features

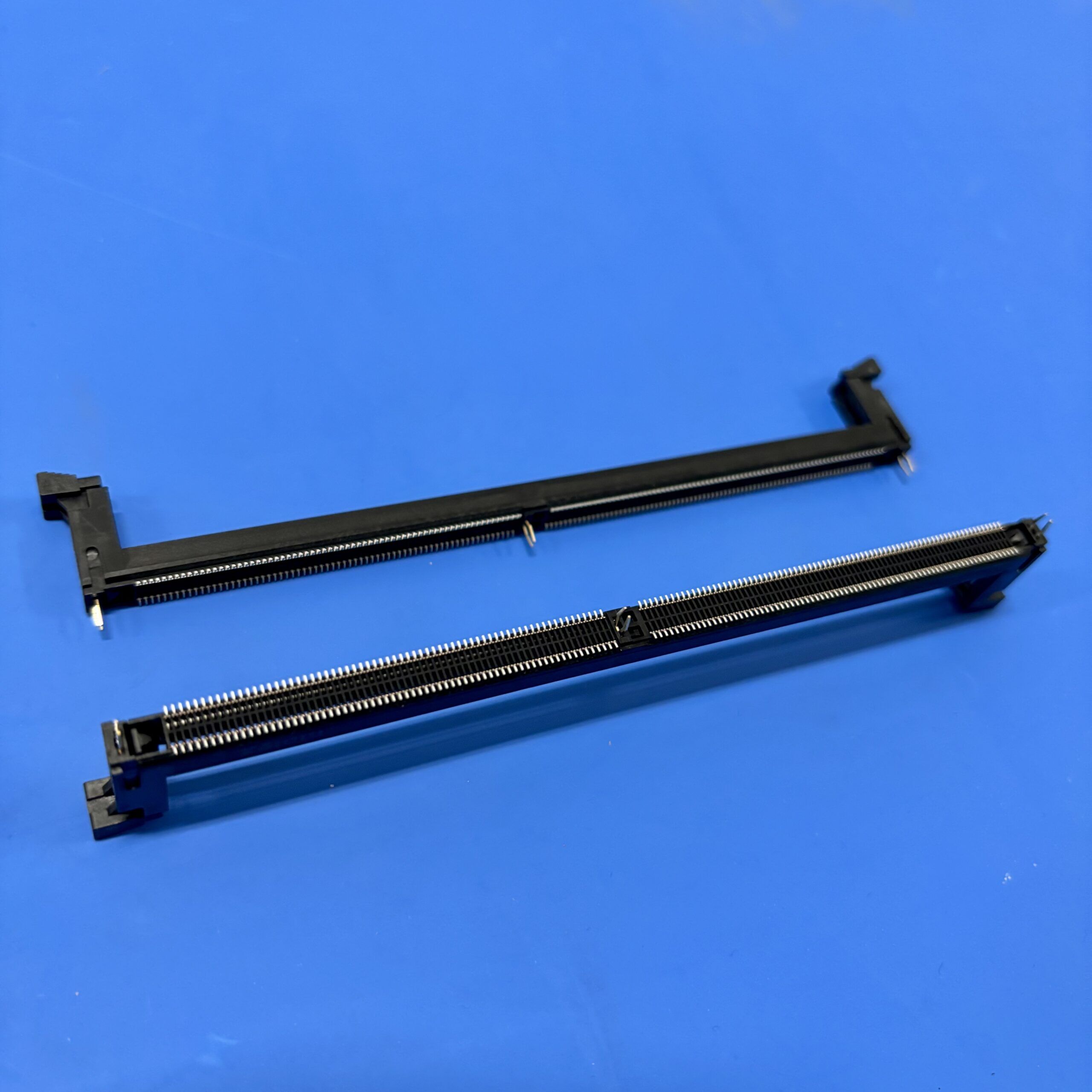

The Molex 78730-1002 DDR4 DIMM socket is designed to accommodate 288-pin memory modules, providing a reliable interface for high-speed data applications. Its 0.85 mm pitch and vertical surface mount configuration facilitate efficient use of PCB space in compact designs. The socket’s copper alloy contacts, plated with 0.76 µm gold, ensure excellent conductivity and resistance to corrosion. Thus supporting a current rating of 0.75A per contact. The black nylon housing, with UL94 V-0 flammability standards, offers durability and safety in various operating environments. Additionally, the socket’s design includes forklocks and black latches for secure module retention and easy installation.

Applications

Data servers requiring high-speed memory interfaces
Desktop and laptop computers utilizing DDR4 memory modules
Telecommunication equipment demanding reliable data processing
Industrial automation systems with advanced computing needs
High-performance computing platforms for scientific research

Product Overview

Molex’s 78730-1002 DDR4 DIMM socket provides a robust solution for integrating 288-pin memory modules into electronic systems. Its precise 0.85 mm pitch and vertical surface mount design optimize PCB layout efficiency, making it suitable for space-constrained applications. The socket’s copper alloy contacts, featuring 0.76 µm gold plating, deliver reliable electrical performance. Allowing maximum longevity supporting up to 25 mating cycles. With a current rating of 0.75A per contact and a voltage rating of 29V AC/DC, this connector meets the demands of high-speed data environments. The black nylon housing adheres to UL94 V-0 flammability standards, ensuring compliance with stringent safety regulations. Forklocks and latches incorporated into the design enhance module retention, providing secure and stable connections essential for critical applications. Operating effectively within a temperature range of -55°C to +85°C, the 78730-1002 socket is a dependable choice for integrating DDR4 memory modules across various industries.
