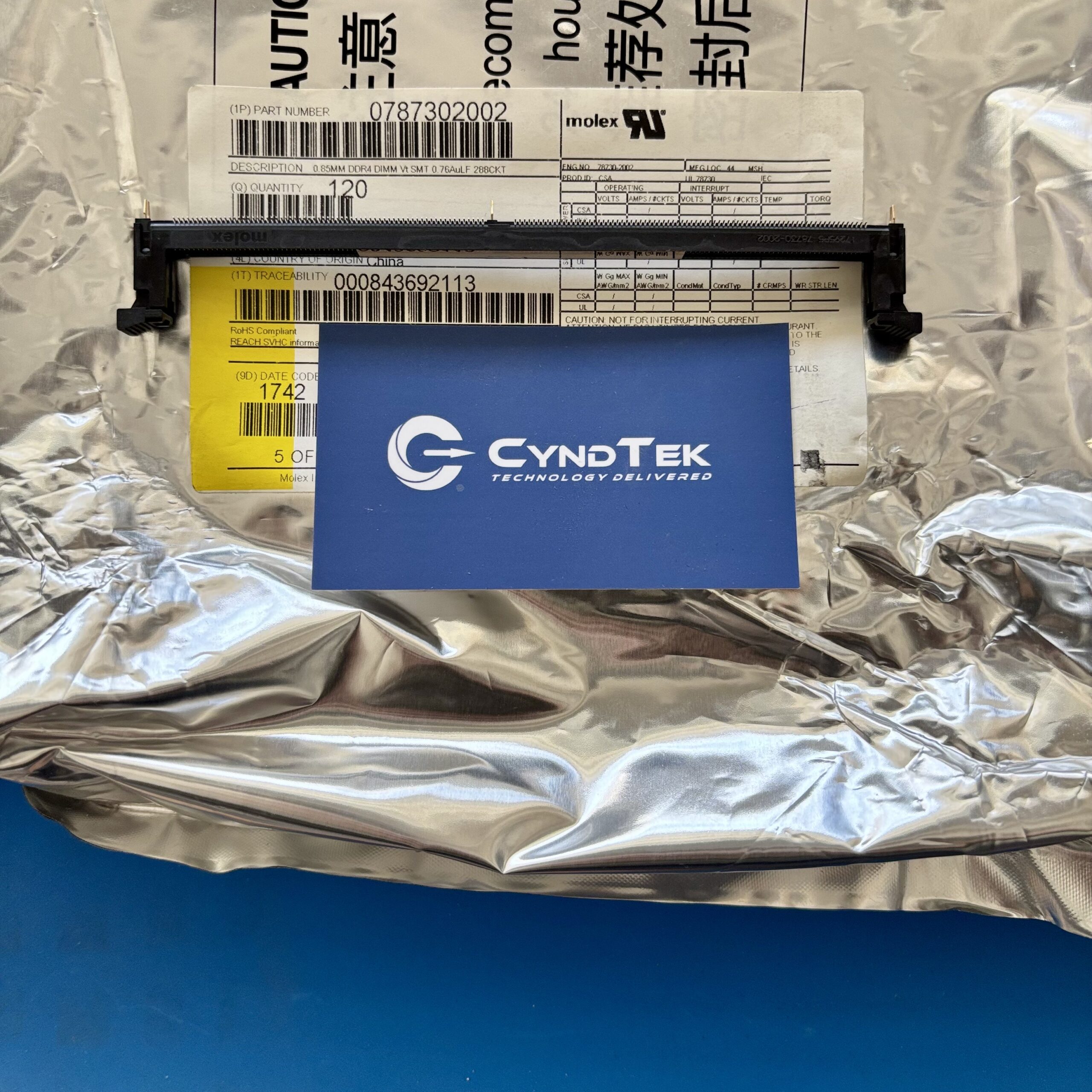

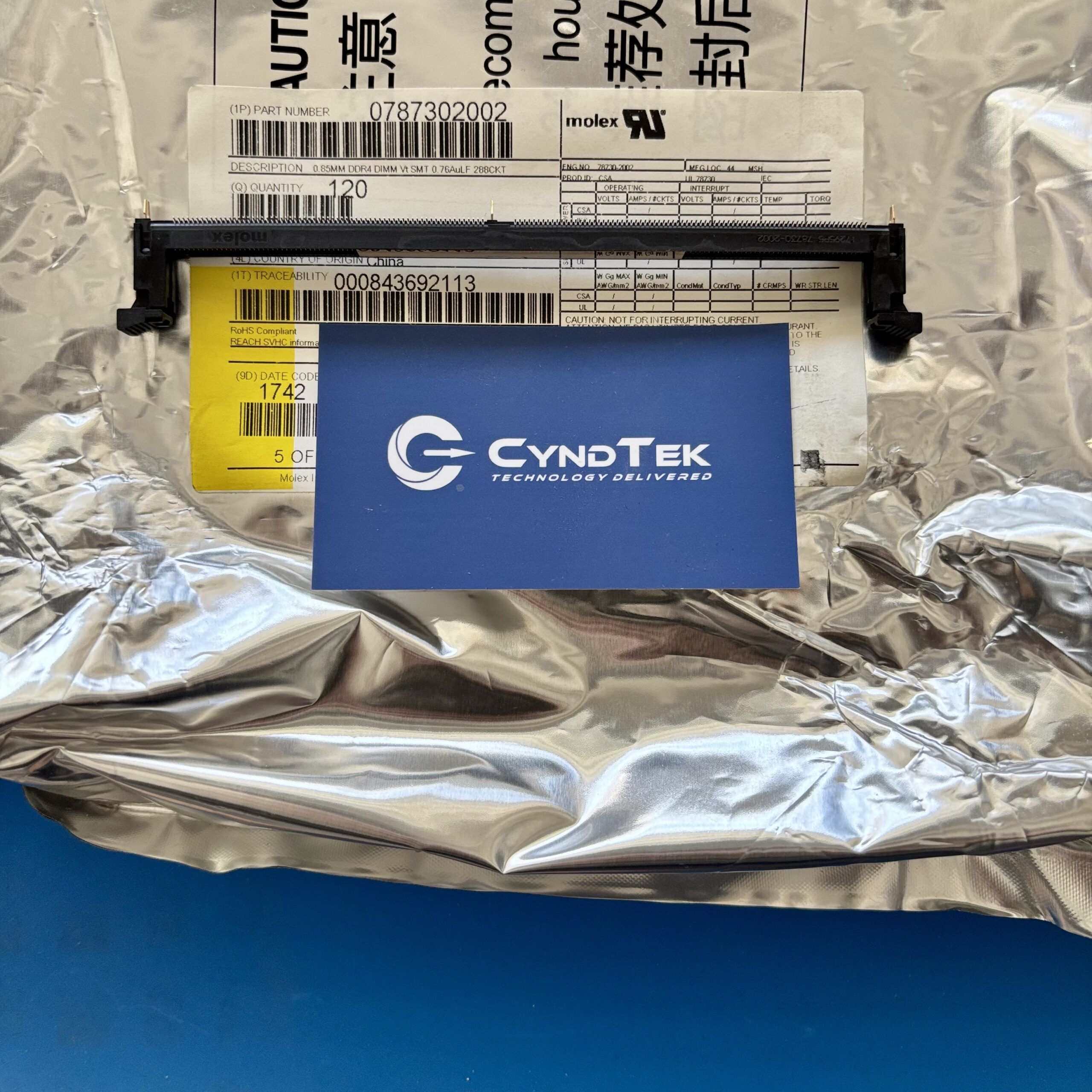

78730-2002 Specifications
Manufacturer: Molex
Part Number: 78730-2002
Product Type: DDR4 DIMM Socket
Number of Positions: 288
Pitch – Mating Interface: 0.85 mm
Mounting Type: Surface Mount, Vertical
Termination Style: Solder
Contact Material: Copper Alloy
Contact Plating: Gold (0.76 µm)
Voltage Rating: 29V AC/DC
Current Rating: 0.75A
Durability: 25 Mating Cycles
Housing Material: Black Nylon
Flammability Rating: UL94 V-0
Operating Temperature Range: -55°C to +85°C
Recommended PCB Thickness: 1.57 mm or 3.18 mm
Compliance: RoHS Compliant
Key Features
The 78730-2002 DDR4 socket provides a dependable interconnect for 288-pin memory modules in high-speed data environments. It features a 0.85 mm pitch, ensuring reliable spacing and signal routing in dense board designs. The vertical surface-mount configuration maximizes layout efficiency, while gold-plated copper alloy contacts ensure solid electrical performance. Its nylon housing offers flame resistance with UL94 V-0 compliance. Additionally, built-in forklocks and latches secure the DIMM module and simplify the installation process.
Applications
Memory expansion in enterprise servers and data centers
DDR4 integration in high-performance computing systems
Telecommunication hardware with dense PCB architecture
Storage arrays that rely on modular memory slots
Industrial controllers requiring embedded high-speed RAM
Product Overview
The 78730-2002 offers designers a reliable solution for DDR4 memory integration where space and stability are critical. Its compact footprint and surface-mount layout support high-density board configurations. Moreover, the gold-plated contact system delivers consistent data signal quality, even in demanding applications. Operating between -55°C and +85°C, it performs reliably across commercial and industrial temperature ranges. The robust mechanical structure ensures retention and durability over 25 cycles, helping to maintain secure connections during maintenance or upgrades. With flammability-rated housing and RoHS compliance, this socket is ideal for use in servers, communication gear, and advanced embedded systems.
