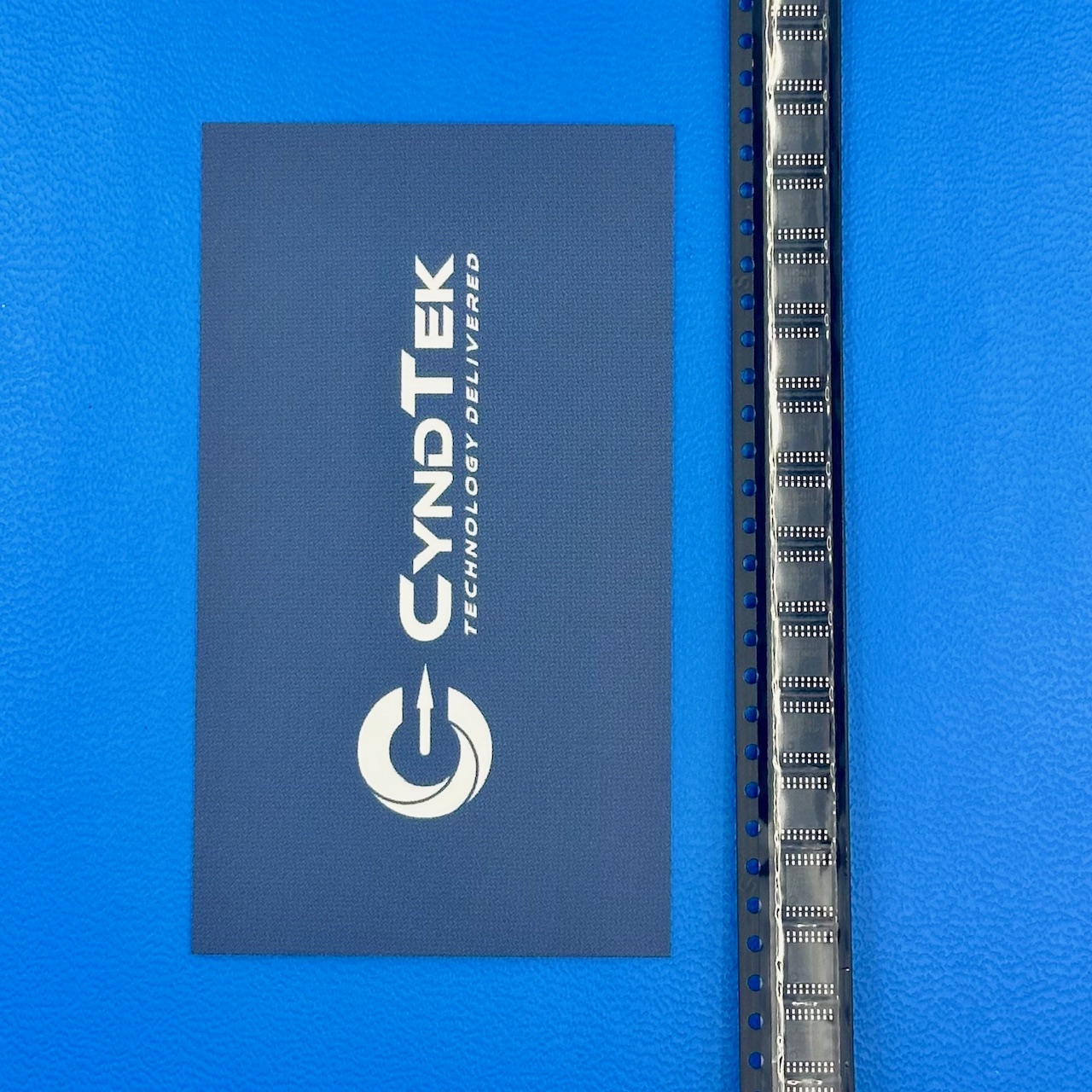

8305AGILF

8305AGILF Specifications

Manufacturer: Renesas Electronics Corporation
Part Number: 8305AGILF
Product Type: Low Skew, 1-to-4, Multiplexed Differential/LVCMOS-to-LVCMOS/LVTTL Fanout Buffer
Number of Outputs: 4
Input Types: Differential (LVPECL, LVDS, LVHSTL, HCSL, SSTL) and LVCMOS/LVTTL
Output Types: LVCMOS, LVTTL
Maximum Output Frequency: 350 MHz
Output Skew: 40 ps (maximum)
Part-to-Part Skew: 700 ps (maximum)
Additive Phase Jitter (RMS): 0.04 ps (typical)
Supply Voltage Range: 3.135 V to 3.465 V
Operating Temperature Range: -40°C to +85°C
Mounting Type: Surface Mount
Package / Case: 16-TSSOP (4.40 mm Width)
RoHS Status: RoHS Compliant

Key Features

The 8305AGILF from Renesas Electronics is a high-performance fanout buffer designed to distribute clock signals with minimal skew and jitter. It offers four LVCMOS/LVTTL outputs and supports selectable differential or single-ended clock inputs. The differential input pair (CLK, nCLK) is compatible with various signal levels, including LVPECL, LVDS, LVHSTL, HCSL, and SSTL, while the LVCMOS_CLK input supports LVCMOS and LVTTL levels. The device operates at frequencies up to 350 MHz, ensuring suitability for high-speed applications. With an output skew of 40 ps and additive phase jitter of 0.04 ps RMS, it delivers precise timing performance. The 8305AGILF operates within a supply voltage range of 3.135 V to 3.465 V and is specified for an operating temperature range of -40°C to +85°C. Its compact 16-TSSOP package facilitates efficient PCB layout and integration.

Applications

Clock distribution in high-speed communication systems.
Data synchronization in networking equipment.
Timing signal management in computing platforms.
Clock buffering in industrial automation systems.
Signal replication in test and measurement instruments.

Product Overview

Renesas Electronics’ 8305AGILF is engineered to provide reliable and precise clock signal distribution for applications requiring minimal skew and jitter. Its versatile input compatibility allows seamless integration with various signal standards, making it adaptable to diverse system requirements. The device’s high-frequency operation and low additive phase jitter ensure optimal performance in demanding environments. Its surface-mount 16-TSSOP package supports straightforward assembly and space-efficient designs. Compliance with RoHS standards reflects Renesas’s commitment to environmentally responsible manufacturing.

Note: The 8305AGILF has been designated as obsolete and is no longer in production. For new designs, consider the recommended substitute 8L30205NLGI from Renesas Electronics, which offers similar functionality and improved performance characteristics.
