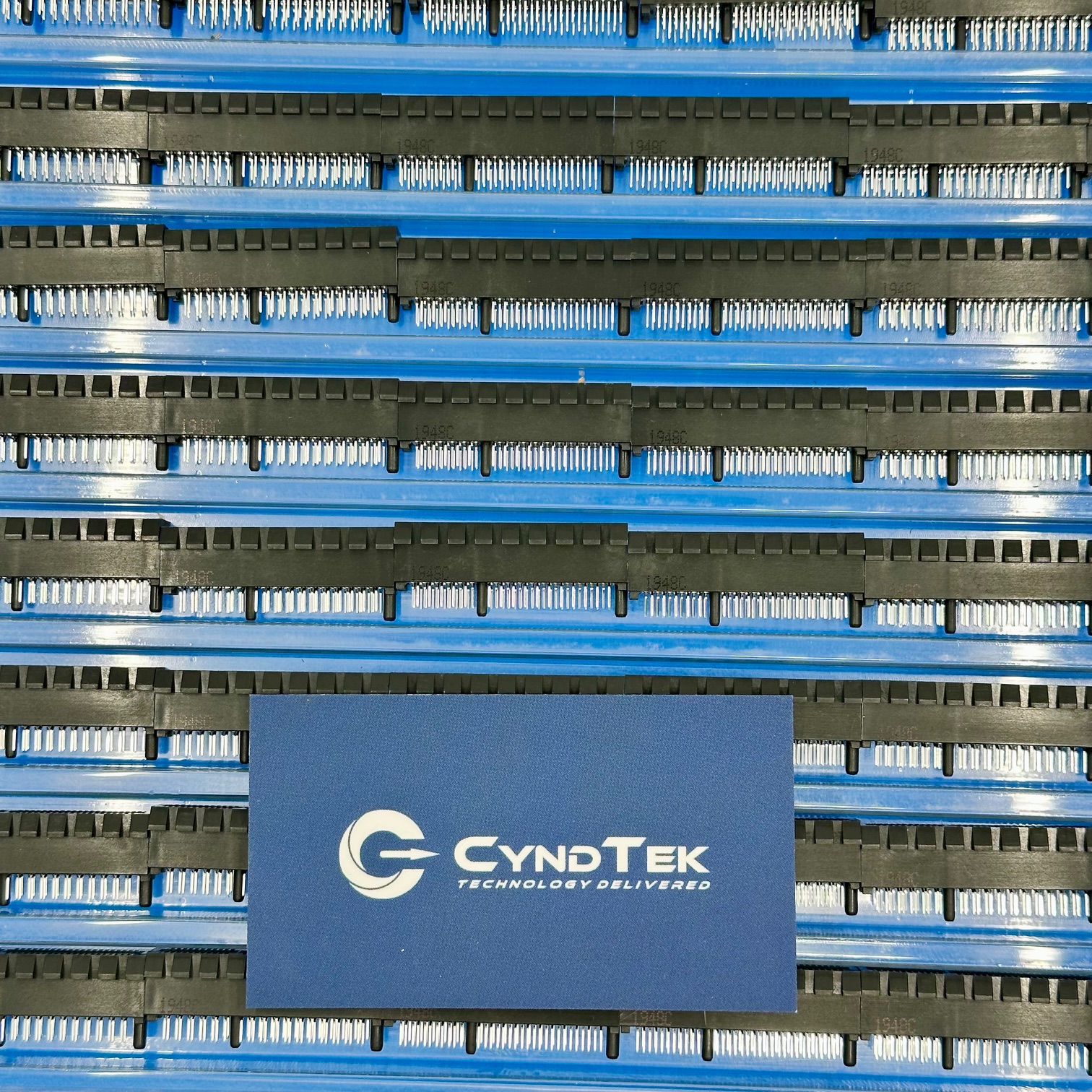

CONN PCI EXP FMALE 64POS 0.039
  • Manufacturer: Molex
  • Part Number: 87715-9105
  • Packaging: Trays
  • Quantity: Each
  • Datecode: 1948

Availability: 516 in stock

SKU TR5A Category Brand:

87715-9105 Specifications

Manufacturer: Molex
Part Number: 87715-9105
Product Type: PCI Express Edge Card Connector
Series: 87715
Number of Positions: 64
Pitch: 1.00 mm (0.039 inches)
Card Thickness Supported: 1.57 mm (0.062 inches)
Mounting Type: Through Hole
Termination Style: Staggered Solder
Material Contact: Phosphor Bronze
Contact Finish (Mating): Gold, 15 µin (0.38 µm)
Contact Finish (Termination): Tin
Housing Material: Glass-Filled Nylon 4/6
Color: Black
Current Rating: 1.1 A per contact
Voltage Rating: 50 V AC (RMS)/DC
Operating Temperature Range: -55°C to +85°C
Durability: 50 Mating Cycles
RoHS Status: RoHS Compliant

Key Features

The 87715-9105 from Molex is a PCIe edge card connector that offers dependable signal transmission in high-speed circuit designs. It supports 64 contacts and accommodates a 1.57 mm thick card, making it ideal for standard PCI Express interface applications. The contact material is made of phosphor bronze, with gold plating applied to the mating area to reduce resistance and maintain conductivity. Additionally, the connector uses staggered solder terminations to ensure strong mechanical retention and simplified PCB layout. Its housing is constructed from flame-retardant, glass-filled nylon for increased structural integrity and heat resistance. Because of these design choices, it performs reliably even in elevated temperature environments or high-cycle use cases.

Applications

High-performance computing systems that use PCI Express cards
Telecommunications hardware with modular interface backplanes
Industrial machinery requiring durable interconnects for control modules
Network infrastructure devices like routers and switches
Compact embedded boards featuring PCIe expansion capability

Product Overview

The 87715-9105 PCI Express edge card connector delivers a space-efficient solution for signal and power connectivity. With a 1.00 mm pitch and 64 total positions, it provides broad compatibility with standard PCIe configurations. Its staggered termination design helps improve solder joint strength while also streamlining board assembly. Moreover, the combination of gold-plated contacts and flame-resistant housing enhances both electrical and physical reliability. The connector is designed to handle currents up to 1.1 A per contact and operates across a wide temperature range from -55°C to +85°C. These features make it a great fit for networking, industrial, and embedded system applications. Thanks to its compact THT footprint, designers can easily integrate it into tight PCB layouts without sacrificing robustness or performance.
