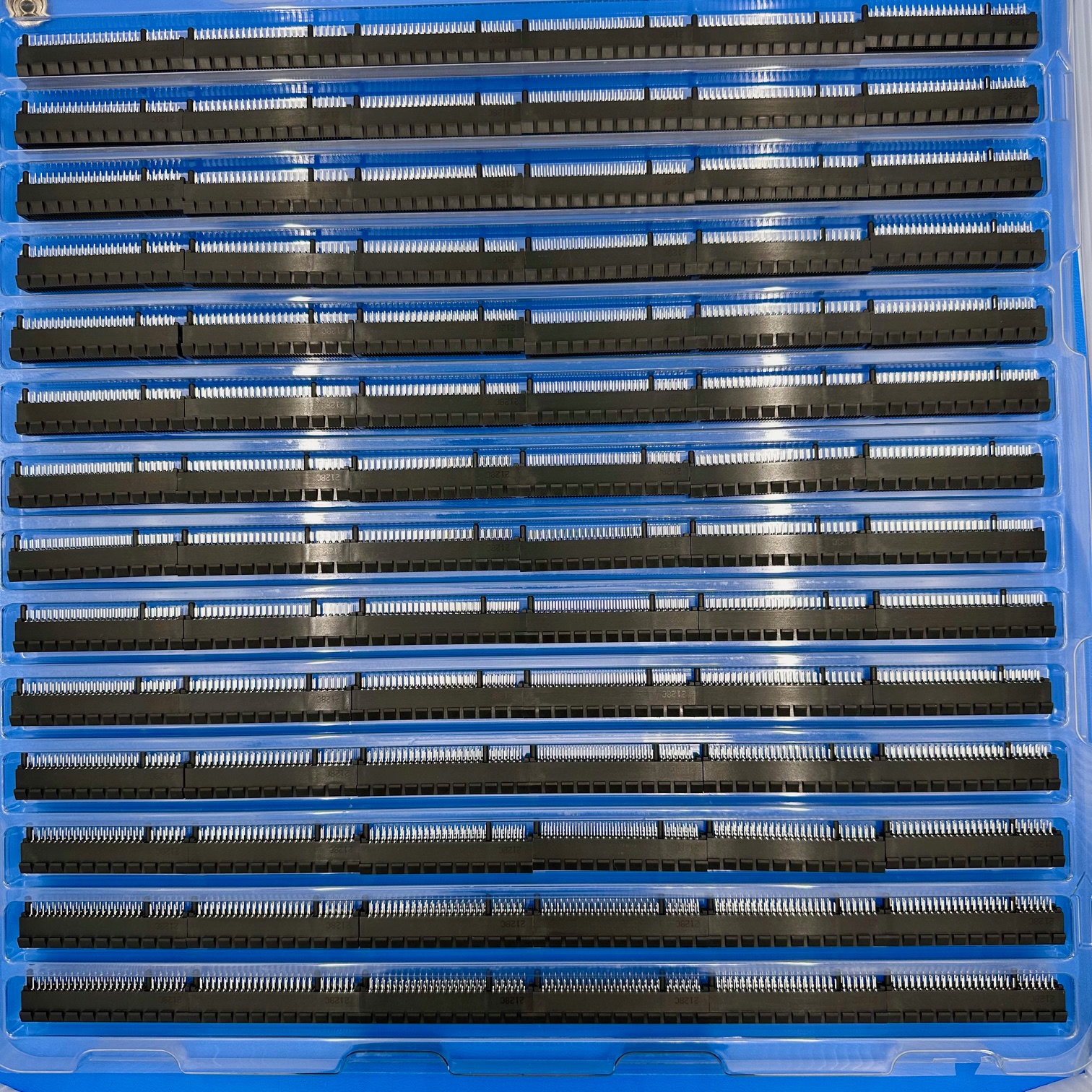

87715-9206 Specifications
Manufacturer: Molex
Part Number: 87715-9206
Product Type: PCI Express Edge Card Connector
Series: 87715
Number of Positions: 98
Pitch: 1.00 mm (0.039 inches)
Card Thickness Supported: 1.57 mm (0.062 inches)
Mounting Type: Through Hole
Termination Style: Solder
Material Contact: Phosphor Bronze
Contact Finish (Mating): Gold
Contact Finish (Termination): Tin
Housing Material: Nylon 4/6
Color: Black
Current Rating: 1.1 A per contact
Voltage Rating: 50 V AC (RMS)/DC
Operating Temperature Range: -55°C to +85°C
Durability: 50 Mating Cycles
RoHS Status: RoHS Compliant
Key Features
The 87715-9206 is a PCI Express edge card connector from Molex, designed to support high-speed data transmission in computing and communication applications. With a 1.00 mm pitch and 98 positions, it accommodates PCIe configurations requiring robust connectivity. The connector supports standard card thicknesses of 1.57 mm, ensuring compatibility with a wide range of PCIe cards. Constructed with phosphor bronze contacts and a gold finish on the mating area, it offers reliable electrical performance and durability. The black housing, made from Nylon 4/6, provides mechanical stability and meets UL 94V-0 flammability standards. Operating within a temperature range of -55°C to +85°C and supporting up to 50 mating cycles, this connector is suitable for environments requiring consistent and reliable performance.
Applications
High-performance computing systems requiring PCI Express connectivity
Networking equipment such as routers and switches demanding reliable data transmission
Telecommunication devices where high-speed signal integrity is critical
Industrial automation systems integrating PCIe-based control modules
Embedded systems and motherboards designed for PCI Express expansion
Product Overview
Molex’s 87715-9206 PCI Express edge card connector offers a reliable solution for high-speed data applications. Its 98-position design with a 1.00 mm pitch supports PCIe configurations requiring robust connectivity, accommodating standard 1.57 mm thick cards. The through-hole mounting and solder terminations ensure a secure and stable connection to PCBs. Featuring phosphor bronze contacts with gold plating, the connector maintains excellent signal integrity and durability over 50 mating cycles. The black Nylon 4/6 housing enhances mechanical strength and complies with UL 94V-0 flammability standards. Operating effectively between -55°C and +85°C, the 87715-9206 is ideal for demanding environments in computing, networking, and industrial applications.
