87832-2014

87832-2014

$1.00

CONN HEADER SMD 20POS 2MM
  • Manufacturer: Molex
  • Part Number: 87832-2014

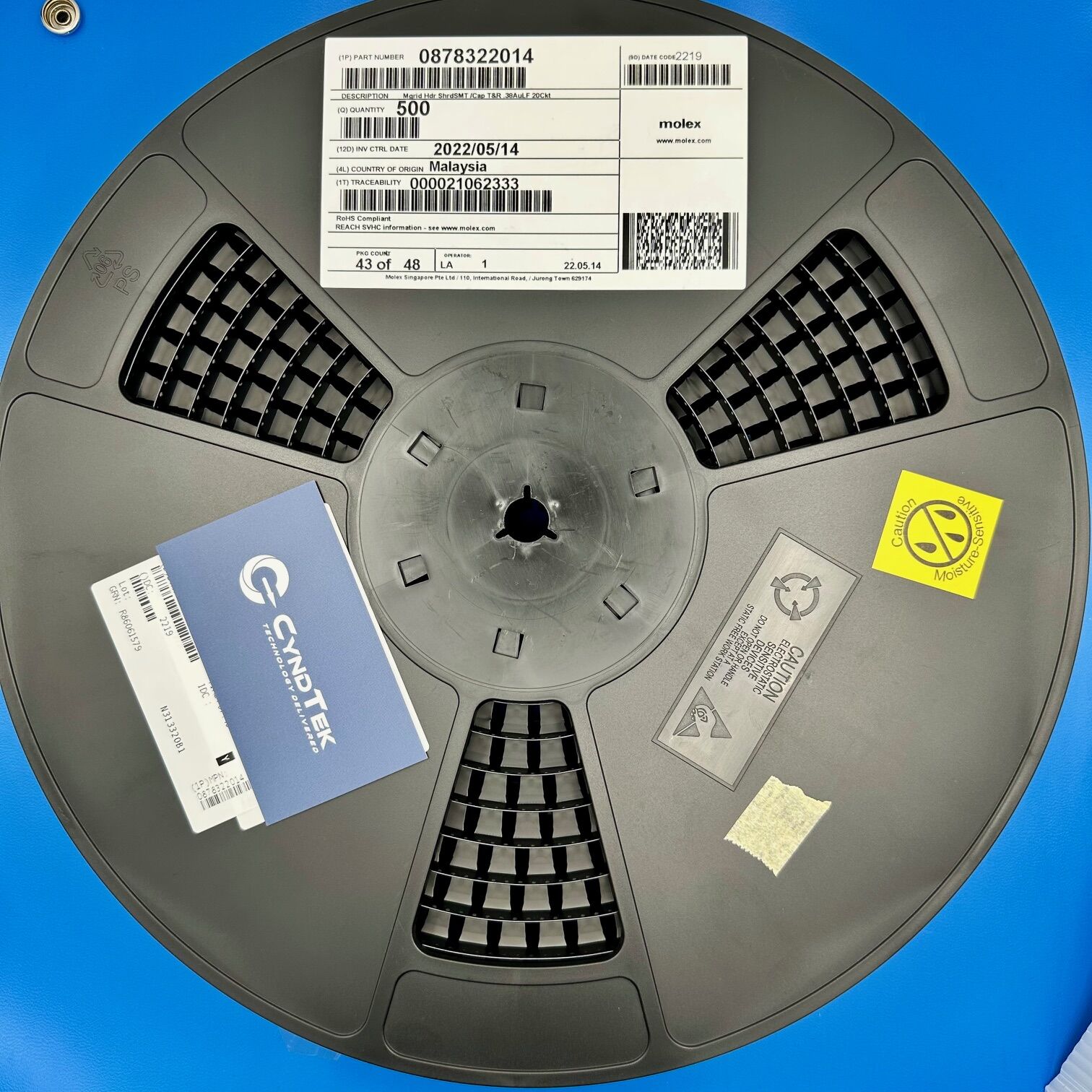

  • Packaging: Tape and Reel
  • Quantity: Each
  • Datecode: 2219

Availability: 1295 in stock

SKU TSX053C Category Brand:

87832-2014 Specifications

Manufacturer: Molex
Part Number: 87832-2014
Product Type: 2.00mm Pitch Milli-Grid PCB Header
Number of Positions: 20
Number of Rows: 2
Pitch – Mating Interface: 2.00mm
Mounting Type: Surface Mount
Termination: Solder
Contact Material: Phosphor Bronze
Contact Finish – Mating: Gold (0.38µm)
Insulation Material: Nylon
Flammability Rating: UL 94 V-0
Operating Temperature Range: -55°C to +105°C
Current Rating: 2.0A per contact
Voltage Rating: 125V
RoHS Status: RoHS Compliant

Key Features

The 87832-2014 is a 2.00mm pitch Milli-Grid PCB header designed for reliable signal transmission in compact electronic applications. With 20 positions arranged in two rows, it facilitates efficient board-to-board or wire-to-board connections. The surface mount design supports automated assembly, enhancing manufacturing efficiency. The header’s phosphor bronze contacts, plated with 0.38µm gold, ensure excellent conductivity and resistance to corrosion. Its nylon insulation material provides durability and meets the UL 94 V-0 flammability rating, indicating superior flame resistance. Operating effectively within a temperature range of -55°C to +105°C, the 87832-2014 is suitable for environments requiring robust performance. Rated for 2.0A per contact and 125V, it accommodates various low-power applications. Compliance with RoHS standards underscores Molex’s commitment to environmental responsibility.

Applications

Telecommunications equipment
Data networking hardware
Industrial control systems
Consumer electronics
Automotive electronics

Product Overview

The 87832-2014 from Molex is engineered to provide dependable interconnections in applications where space and performance are critical. Its 2.00mm pitch and dual-row configuration allow for high-density PCB layouts, optimizing board real estate. The surface mount termination facilitates streamlined assembly processes, reducing production time and costs. Gold-plated phosphor bronze contacts offer low contact resistance and high durability, ensuring consistent signal integrity over the product’s lifespan. The nylon housing not only provides mechanical stability but also meets stringent flammability standards, enhancing safety in various applications. With a broad operating temperature range and compliance with RoHS directives, the 87832-2014 is a versatile solution for designers seeking a reliable, environmentally friendly connector for modern electronic systems.
