9760718005

9760718005

$0.50

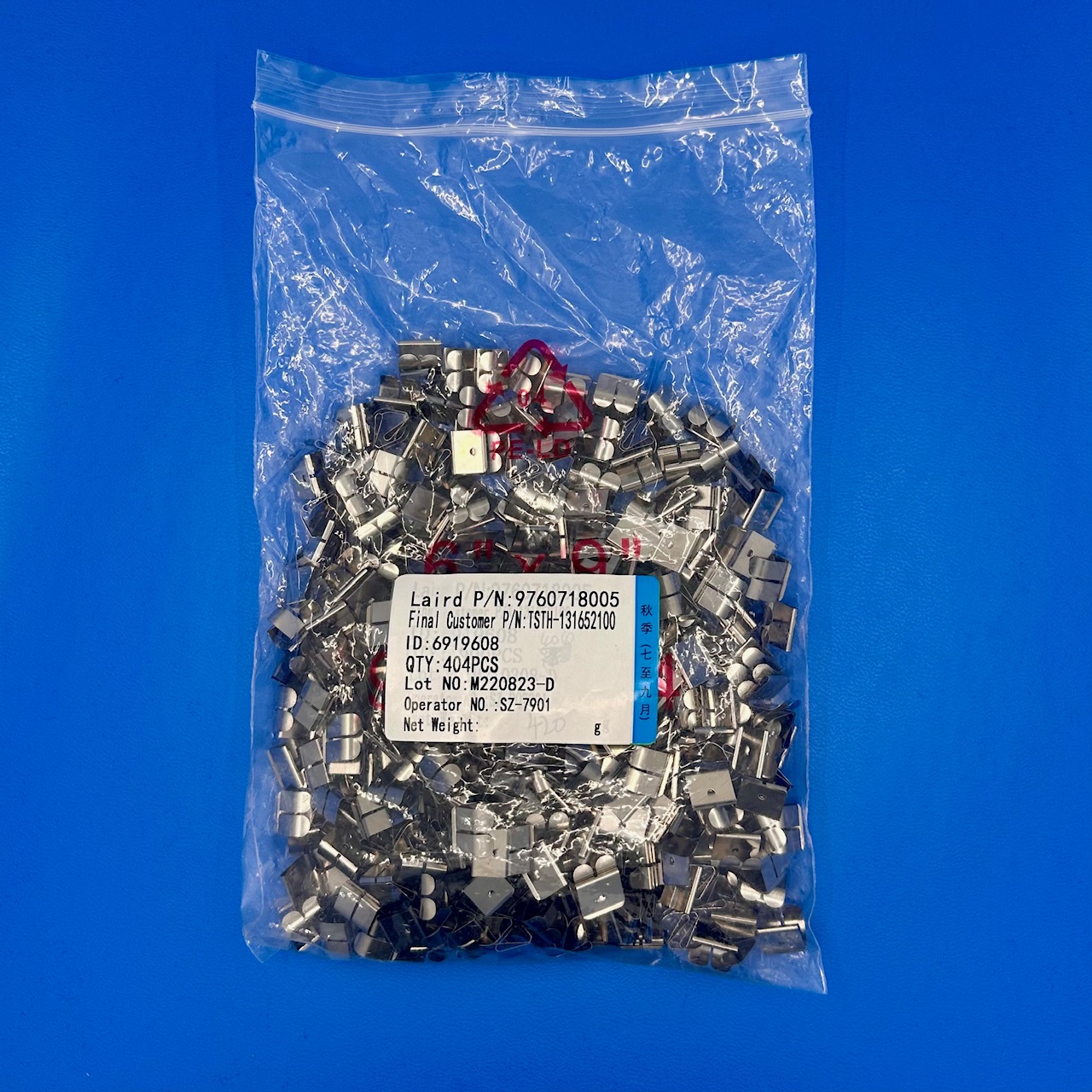

CONTACT, ELEC; EMI, CLIP ON
  • Manufacturer: Laird
  • Part Number: 9760718005
  • Packaging: Bulk
  • Quantity: Each
  • Datecode: 22+

Availability: 1298 in stock

SKU TSX054G Category Brand:

9760718005 Specifications

Manufacturer: Laird Performance Materials
Part Number: 9760718005
Product Type: EMI Grounding Clip
Mounting Type: Clip-on (Surface Contact)
Material: Conductive Metal with Spring Properties
Finish: Likely tin or nickel-plated (typical for grounding clips)
Operating Function: Spring-loaded for press-fit grounding
Compression Range: Moderate to high
Packaging Quantity: Bulk
RoHS Status: RoHS Compliant

Key Features

The 9760718005 from Laird is a clip-on EMI grounding contact designed to establish electrical contact between shielding surfaces and chassis ground. Its spring-loaded metal construction enables consistent compression, ensuring reliable contact over time. This part offers compatibility with automatic assembly and is often integrated into modular shielding schemes where soldering or mechanical fasteners aren’t ideal. Additionally, the design supports consistent grounding while allowing for easy mechanical removal and replacement. Its lightweight, durable construction fits demanding high-cycle applications, especially where minimal insertion force is critical.

Applications

Board-level grounding between metal enclosures and PCBs
Chassis-to-shield grounding in RF shielding cans
Telecommunication devices requiring removable EMI suppression
Medical imaging systems with modular electronics
Industrial control equipment with replaceable shielding panels

Product Overview

Laird’s 9760718005 is engineered to offer an efficient EMI grounding solution using a compact clip-on design. It provides a secure mechanical and electrical connection without requiring solder or adhesives. The component maintains a consistent force under compression, ensuring stable EMI suppression over repeated cycles. Its form factor supports flexible placement across multiple contact points, making it ideal for modular or field-serviceable systems. As a result, this grounding clip simplifies both initial installation and long-term maintenance, supporting robust design across industrial, medical, and communication sectors.
