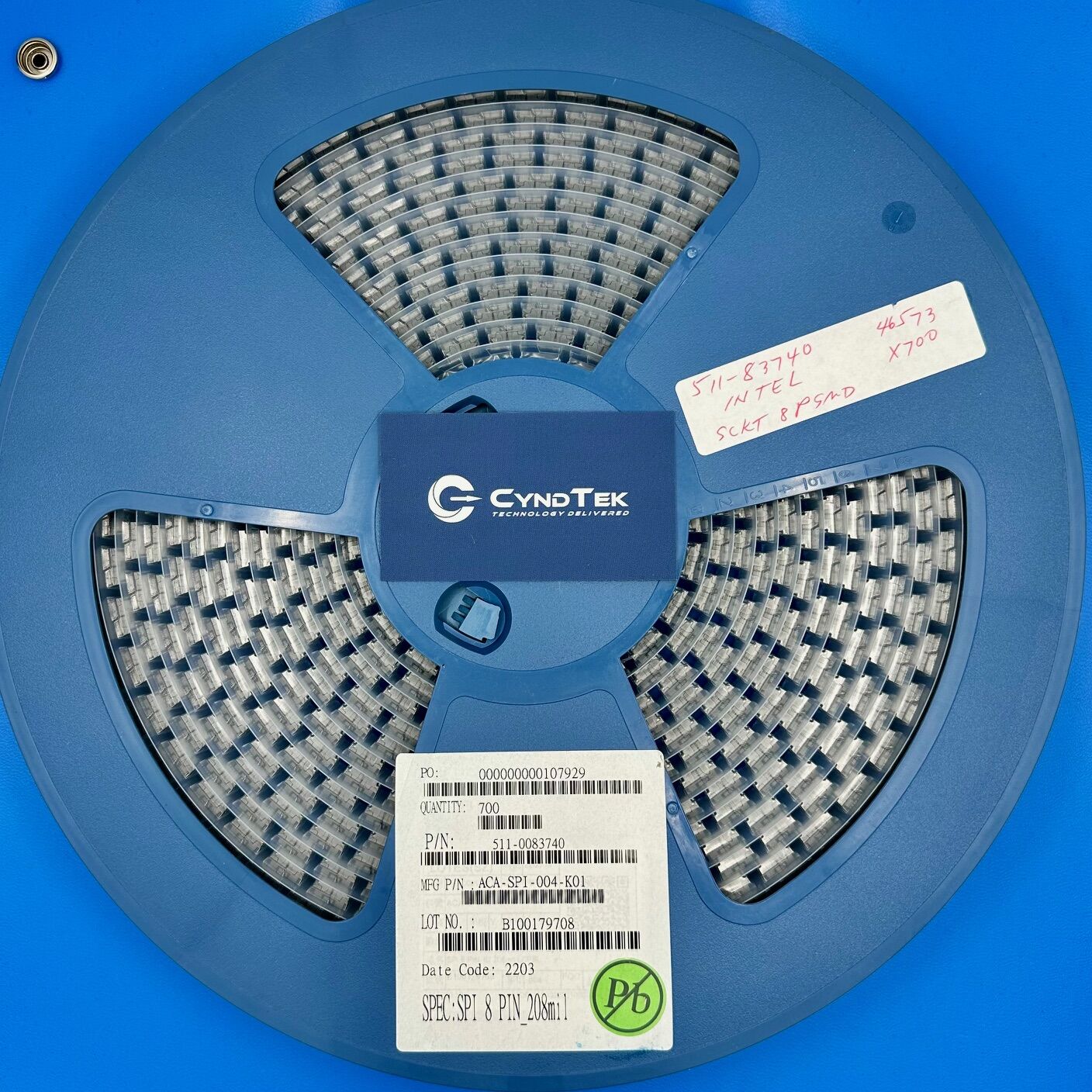

ACA-SPI-004-K01

ACA-SPI-004-K01 Specifications

Part Number: ACA-SPI-004-K01
Product Type: SOIC Socket
Number of Positions: 8 (2 x 4)
Pitch – Mating Interface: 1.27 mm
Mounting Type: Surface Mount
Termination Style: Solder
Contact Material: Phosphor Bronze
Contact Plating: Gold (1.00 µin)
Housing Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Features: Board Guide, Closed Frame
Compliance: RoHS Compliant

Key Features

The ACA-SPI-004-K01 is an 8-position SOIC socket designed for secure integration of small-outline integrated circuits. Its 1.27 mm pitch and surface mount configuration optimize PCB space utilization. The socket’s phosphor bronze contacts, plated with 1.00 µin gold, ensure reliable conductivity and resistance to corrosion. The liquid crystal polymer housing meets UL94 V-0 flammability standards, providing durability and compliance with stringent safety requirements. Additionally, the socket features a board guide and closed frame design for precise alignment and secure seating of IC components.

Applications

Facilitates prototyping and testing of SOIC packaged ICs
Enables easy replacement of BIOS chips in computing systems
Supports firmware updates and debugging in embedded systems
Allows for quick swapping of SPI flash memory modules
Provides reliable connections in development boards and programming devices

Product Overview

The ACA-SPI-004-K01 SOIC socket offers a reliable solution for integrating 8-pin small-outline ICs into various electronic systems. Its precise 1.27 mm pitch and surface mount design facilitate efficient PCB layout, making it suitable for space-constrained applications. The socket’s phosphor bronze contacts, featuring 1.00 µin gold plating, deliver dependable electrical performance and longevity. The liquid crystal polymer housing adheres to UL94 V-0 flammability standards, ensuring compliance with stringent safety regulations. The inclusion of a board guide and closed frame enhances component alignment and retention, providing secure and stable connections essential for critical applications. This socket is an ideal choice for prototyping, testing, and applications requiring frequent IC replacement or updates.
