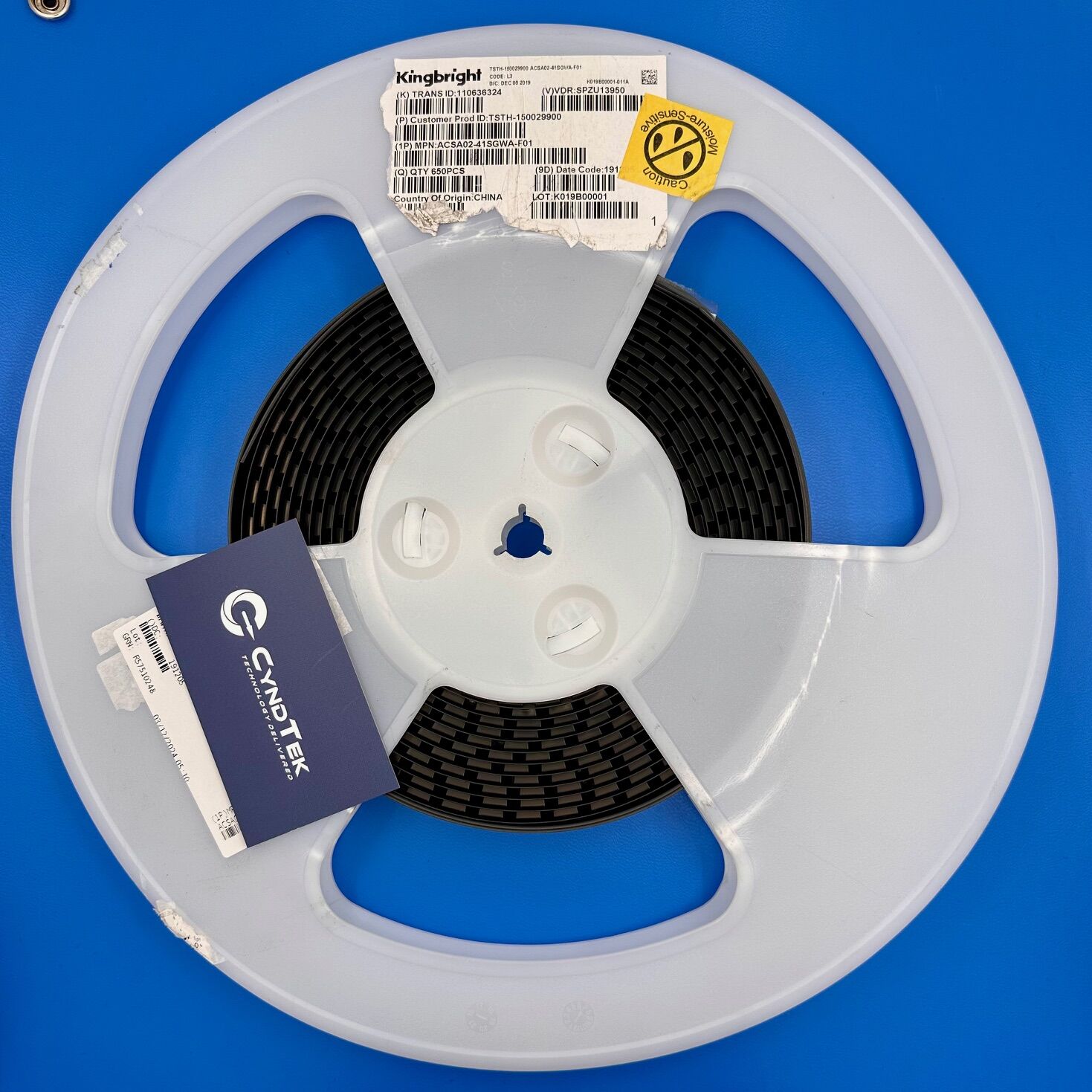

ACSA02-41SGWA-F01

ACSA02-41SGWA-F01 Specifications

Manufacturer: Kingbright
Part Number: ACSA02-41SGWA-F01
Product Type: Surface Mount LED Display
Display Type: 4-Digit 7-Segment
Digit Height: 0.2 inch (5.08 mm)
Illumination Color: Super Bright Green
Wavelength: 572 nm
Forward Voltage: 2.2 V (typical)
Forward Current: 20 mA (per segment)
Luminous Intensity: 3.5 mcd (per segment)
Common Pin Configuration: Common Cathode
Operating Temperature Range: -40°C to +85°C
Mounting Type: Surface Mount
Package / Case: SMD
RoHS Status: RoHS Compliant

Key Features

The ACSA02-41SGWA-F01 from Kingbright is a compact surface mount 4-digit 7-segment LED display designed for applications requiring clear and bright numeric readouts. Emitting a super bright green light at a wavelength of 572 nm, it ensures excellent visibility. Each segment operates at a typical forward voltage of 2.2 V and a forward current of 20 mA, delivering a luminous intensity of 3.5 mcd. The display features a common cathode configuration and is housed in a robust SMD package, facilitating easy integration into various electronic assemblies. Its wide operating temperature range from -40°C to +85°C ensures reliable performance in diverse environmental conditions.

Applications

Digital clocks and timers
Instrumentation panels
Consumer electronics displays
Industrial control systems
Medical equipment readouts

Product Overview

Kingbright’s ACSA02-41SGWA-F01 is engineered to provide high-quality numeric displays in a compact form factor. Its super bright green illumination offers clear visibility, making it suitable for both indoor and outdoor applications. The surface mount design allows for seamless integration into modern electronic devices, while the common cathode configuration simplifies circuit design. Operating efficiently at a low forward voltage and current, it ensures energy-efficient performance. Compliance with RoHS standards reflects Kingbright’s commitment to environmentally responsible manufacturing. Overall, the ACSA02-41SGWA-F01 combines reliability, efficiency, and ease of integration, making it an ideal choice for a wide range of display applications.
