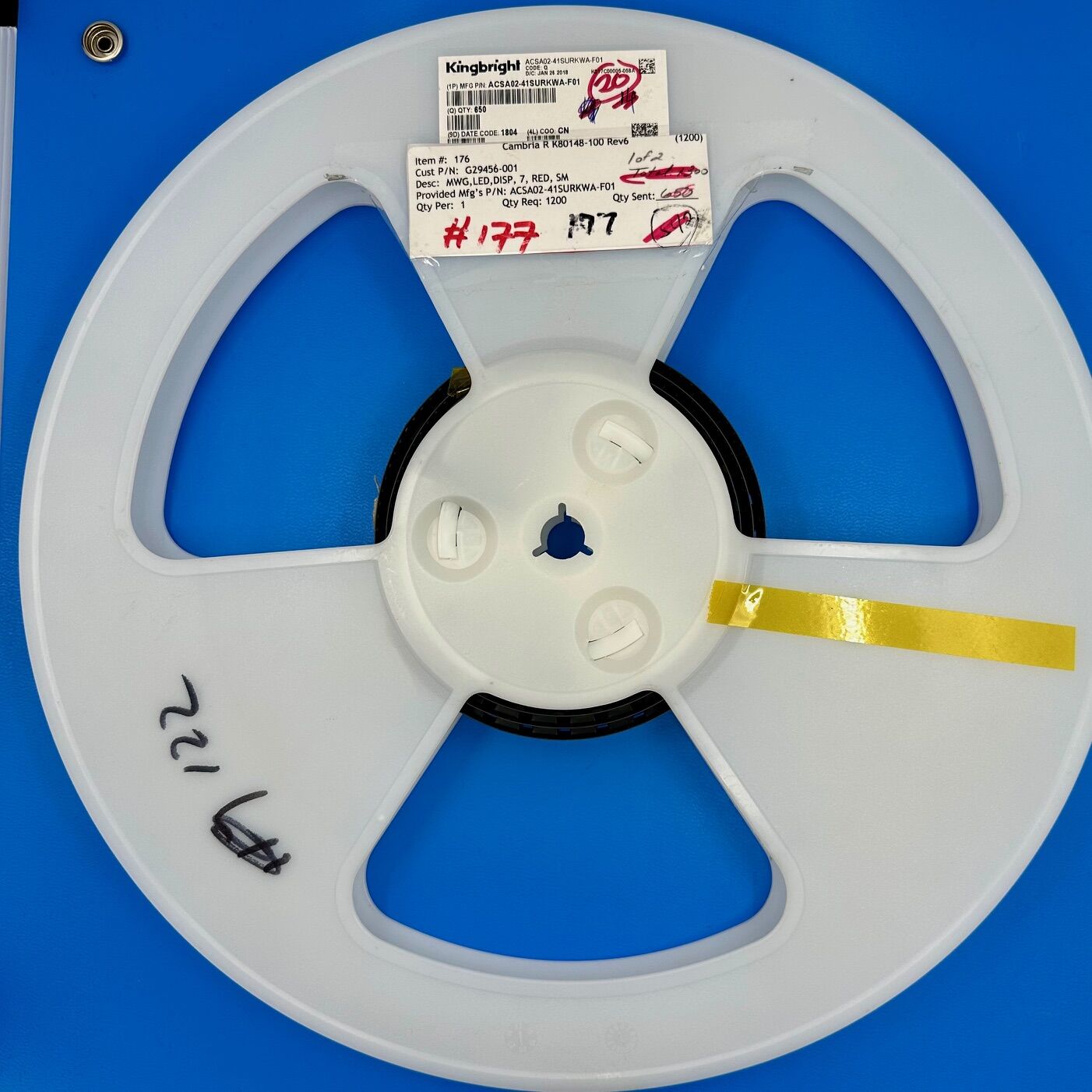

ACSA02-41SURKWA-F01

ACSA02-41SURKWA-F01 Specifications

Manufacturer: Kingbright
Part Number: ACSA02-41SURKWA-F01
Product Type: Surface Mount Display
Display Type: 7-Segment
Number of Characters: 1
Character Height: 0.20 inches (5.08 mm)
Common Pin Configuration: Common Anode
Emitting Color: Super Red
Peak Wavelength: 650 nm
Forward Voltage: 1.95 V (typical)
Forward Current: 20 mA
Luminous Intensity: 30 mcd
Power Dissipation: 75 mW (maximum)
Viewing Angle: Not specified
Package Dimensions: 8.00 mm (H) x 6.90 mm (W) x 3.00 mm (D)
Mounting Type: Surface Mount
Package Type: 10-SMD, No Lead
Operating Temperature Range: Not specified
Compliance: RoHS Compliant

Key Features

The ACSA02-41SURKWA-F01 is a compact, single-digit 7-segment display designed for surface mount applications. Its super red emission at a peak wavelength of 650 nm provides clear and bright character illumination. With a character height of 0.20 inches, it offers readability in space-constrained designs. The common anode configuration simplifies integration with standard drive circuitry. Additionally, the low forward voltage of 1.95 V at 20 mA ensures energy-efficient operation. Its 10-SMD package facilitates automated assembly processes, enhancing manufacturing efficiency.

Applications

Digital readouts in consumer electronics
Status indicators in industrial control panels
Numeric displays in medical devices
Instrumentation requiring compact numeric visualization
Portable devices needing low-power numeric indicators

Product Overview

The Kingbright ACSA02-41SURKWA-F01 is engineered for applications requiring a small footprint and efficient numeric display. Its super red 7-segment design delivers clear visibility, while the surface mount package supports modern manufacturing techniques. The display’s low power consumption and compact dimensions make it suitable for a wide range of electronic devices where space and energy efficiency are critical considerations.
